Healthchecks on Google Cloud Run
Healthchecks is an open-source, self-hosted cron job and heartbeat monitoring service: scheduled tasks "ping" it on success (or a task pings it periodically and Healthchecks watches for a missed ping), and it alerts you by email, Slack, SMS, or any of 100+ other integrations when a ping is late or missing. This module deploys Healthchecks on Cloud Run v2 on top of the App_CloudRun foundation, which provisions and manages the shared Google Cloud infrastructure.
This guide focuses on the cloud services Healthchecks uses and how to explore and operate them from the Google Cloud Console and the command line. For the mechanics common to every Cloud Run application — service identity, ingress and load balancing, scaling and concurrency, CI/CD, Cloud Armor, IAP, Binary Authorization, VPC Service Controls, backups, and the deployment lifecycle — refer to the App_CloudRun foundation guide rather than repeating them here.

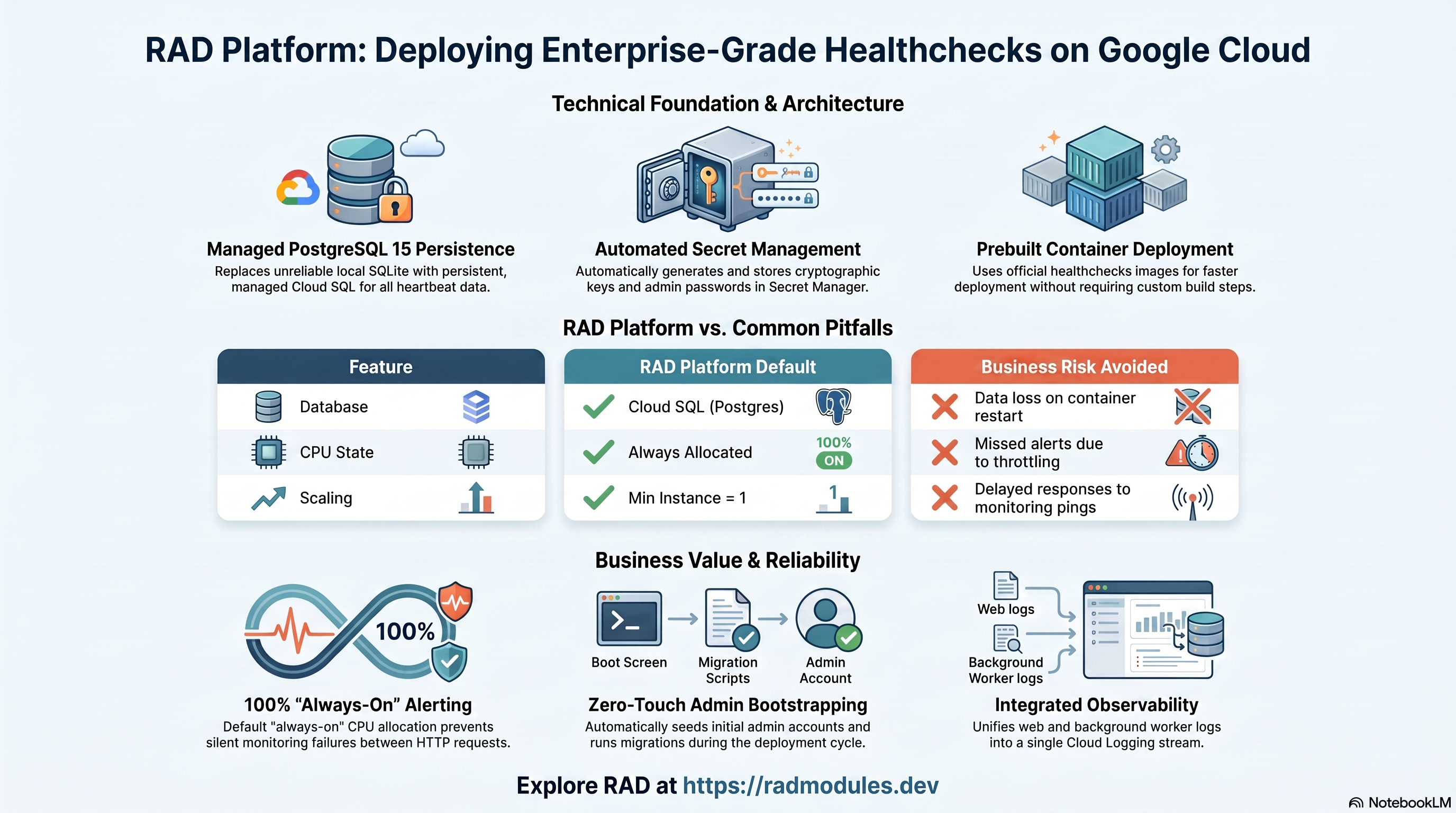

1. Overview
Healthchecks runs as a Django/uWSGI container on Cloud Run v2. The deployment wires together a focused set of Google Cloud services:
| Capability | Google Cloud service | Notes |
|---|---|---|
| Compute | Cloud Run v2 | uWSGI service, 1 vCPU / 512 MiB by default, always-on (not scale-to-zero) |
| Database | Cloud SQL for PostgreSQL 15 | Required — the DB env var is explicitly set to postgres, overriding the image's SQLite fallback |
| Secrets | Secret Manager | Auto-generated SECRET_KEY and initial admin password; database password |
| Ingress | Cloud Run URL | Default run.app URL; optional external HTTPS load balancer + custom domain |
Sensible defaults worth knowing up front:
- PostgreSQL 15 is mandatory, and
DB = "postgres"is set explicitly. The upstream image otherwise silently falls back to a throwaway, container-local SQLite database with no error — the same class of trap already documented in this catalog for Wallabag. - The container image is genuinely prebuilt (
healthchecks/healthchecks) —container_image_sourcedefaults to"prebuilt"and no Cloud Build step runs. cpu_always_allocated = trueandmin_instance_count = 1by default — thesendalerts/sendreportsbackground loop that notices missed check-ins and fires alerts is co-located in the same container and runs continuously, independent of inbound HTTP requests (the same shape as n8n/Kestra). Under the request-based billing this catalogue defaults to for most apps, that loop would be throttled to near-zero between requests and could silently stop noticing missed check-ins.- No dedicated health endpoint. Startup/liveness probes target
/(the public login page).ALLOWED_HOSTS = "*"is set so the platform's own internal probe Host header is never rejected by Django's host validation. - The initial admin account is seeded once, not self-healing. An
admin-bootstrapinit job runs migrations and creates the superuser (admin_email/ a generated Secret Manager password) via Django's stockcreatesuperuser --noinput. Re-running the job is a safe no-op if the account already exists. - Outbound email is a placeholder by default.
DEFAULT_FROM_EMAILdefaults tohealthchecks@example.org. Configure realEMAIL_HOST/EMAIL_HOST_USER/EMAIL_HOST_PASSWORDpost-deploy or alerts will fail to actually deliver. - No Redis, no object storage. Healthchecks stores all state — checks, pings, users, alert configuration — in PostgreSQL alone.
2. Google Cloud Services & How to Explore Them
All commands assume PROJECT and REGION are set. Service and resource names
are reported in the deployment Outputs.
A. Cloud Run — the Healthchecks service
Healthchecks runs as a Cloud Run v2 service. Each deployment creates an immutable revision; traffic can be split across revisions for safe rollouts.
- Console: Cloud Run → select the service for revisions, traffic, logs, and metrics.
- CLI:
gcloud run services list --project "$PROJECT" --region "$REGION"
gcloud run services describe <service-name> --project "$PROJECT" --region "$REGION"
gcloud run revisions list --service <service-name> --project "$PROJECT" --region "$REGION"
See App_CloudRun for scaling, concurrency, execution environment, and traffic splitting.
B. Cloud SQL for PostgreSQL 15
Healthchecks stores all application data (checks, pings, integrations, users, alert history) in a managed Cloud SQL for PostgreSQL 15 instance. The service connects privately through the Cloud SQL Auth Proxy over a Unix socket; no public IP is exposed. On first deploy, initialization Jobs create the application database/role and seed the initial admin account.
- Console: SQL → select the instance for connections, backups, flags, metrics.
- CLI:
gcloud sql instances list --project "$PROJECT"
gcloud sql instances describe <instance-name> --project "$PROJECT"
gcloud sql connect <instance-name> --user=<db-user> --database=<db-name> --project "$PROJECT"
The instance name, database, user, and password secret are in the Outputs. See App_CloudRun for the connection model, backups, and password rotation.
C. Secret Manager
Two cryptographic values are generated automatically and stored in Secret
Manager: SECRET_KEY (Django session/CSRF signing key) and ADMIN_PASSWORD
(the initial superuser password, seeded once). The database password is managed
separately by the foundation.
- Console: Security → Secret Manager.
- CLI:
gcloud secrets list --project "$PROJECT" --filter="name~healthchecks"
gcloud secrets versions access latest --secret=<secret-name> --project "$PROJECT"
See App_CloudRun for injection and rotation details.
D. Networking & ingress
The service is reachable at its run.app URL by default. An external HTTPS load
balancer with a custom domain, Cloud CDN, and Cloud Armor can be layered on.
- Console: Cloud Run (service URL); Network services → Load balancing.
- CLI:
gcloud run services describe <service-name> --region "$REGION" --format='value(status.url)'
gcloud compute addresses list --project "$PROJECT"
See App_CloudRun.
E. Cloud Logging & Monitoring
Container logs (including the sendalerts/sendreports background workers,
which log to the same stdout stream as the web server) flow to Cloud Logging;
Cloud Run and Cloud SQL metrics flow to Cloud Monitoring, with optional uptime
checks and alert policies.
- Console: Logging → Logs Explorer; Monitoring → Dashboards / Alerting.
- CLI:
gcloud run services logs read <service-name> --project "$PROJECT" --region "$REGION" --limit 50
3. Healthchecks Application Behaviour
- First-deploy database setup. The
db-initinitialization Job runs usingpostgres:15-alpine. It connects through the Cloud SQL Auth Proxy and idempotently creates the application role and database. The job is safe to re-run. - Admin account bootstrap. The
admin-bootstrapJob (using the Healthchecks image itself) runsmanage.py migrate --noinput, thenmanage.py createsuperuser --noinput --username admin --email <admin_email>(password from a generated Secret Manager secret). Because Cloud Run init jobs run strictly before the main Service is created — and because a job invokes the container's command directly, bypassing the image's ownuwsgi.iniboot chain — the job runs its own migration first rather than assuming the schema already exists. - Database migrations also run on every normal container start of the main
service (the image's
uwsgi.inihashook-pre-app = exec:./manage.py migratebuilt in), so upgradingapplication_versionapplies schema changes automatically. - The
sendalerts/sendreportsbackground loop is co-located in the same container, started automatically by the image's ownuwsgi.inialongside the web server (attach-daemonentries) — no separate worker service is deployed. This is the loop that actually detects missed check-ins and sends alerts, and it needs the container to be both running (min_instance_count = 1) and CPU-allocated (cpu_always_allocated = true) to work reliably. - Health path. Startup and liveness probes target
/— Healthchecks has no dedicated health endpoint; the root login page always responds unauthenticated and would 500 (not render) if the database connection were broken. - Sign-in, not sign-up. Healthchecks has no public self-service sign-up flow
by default; the only account is the one seeded by
admin-bootstrap. - Inspect job execution:
gcloud run jobs list --project "$PROJECT" --region "$REGION"
gcloud run jobs executions list --job <job-name> --project "$PROJECT" --region "$REGION"
4. Configuration Variables
Variables are grouped exactly as they appear on the deployment platform. Only settings specific to or notable for Healthchecks are listed; every other input is inherited from App_CloudRun with its standard behaviour.
Group 3 — Application Identity
| Variable | Default | Description |
|---|---|---|
application_name | healthchecks | Base name for resources. Do not change after first deploy. |
application_display_name | Healthchecks | Human-readable name shown in the Console. |
admin_email | admin@techequity.cloud | Email/username for the initial superuser, seeded once. |
default_from_email | healthchecks@example.org | Placeholder sender address until real SMTP is configured. |
Group 4 — Runtime & Scaling
| Variable | Default | Description |
|---|---|---|
container_image_source | prebuilt | The official image needs no custom build. |
container_image | "" | Leave empty to use healthchecks/healthchecks:<application_version>. |
container_port | 8000 | The upstream image's uWSGI server binds here (docker/uwsgi.ini). |
min_instance_count | 1 | Keeps the always-on alert loop warm. Setting 0 risks missed alerts while idle. |
max_instance_count | 1 | A single instance is sufficient; the alert loop is not designed for multi-instance coordination. |
cpu_always_allocated | true | Required for the in-process alert loop to run reliably between requests. |
enable_cloudsql_volume | true | Cloud SQL Auth Proxy Unix socket — DB_HOST is a discrete libpq/psycopg param, so the socket directory works verbatim. |
Group 6 — Environment Variables & Secrets
| Variable | Default | Description |
|---|---|---|
environment_variables | {} | Configure EMAIL_HOST/EMAIL_PORT/EMAIL_HOST_USER here for real alert delivery. Do not set DB, SECRET_KEY, or DB_* — injected automatically. |
secret_environment_variables | {} | Use for EMAIL_HOST_PASSWORD or other sensitive SMTP credentials. |
Group 11 — Storage & Filesystem
| Variable | Default | Description |
|---|---|---|
enable_nfs | false | Not used — Healthchecks needs no shared filesystem. |
storage_buckets | [{ name_suffix = "data" }] | Generic Foundation default; unused by the application itself. |
Group 12 — Database
| Variable | Default | Description |
|---|---|---|
database_type | POSTGRES_15 | Fixed; MySQL/SQLite are not wired through this module. |
application_database_name | healthchecks_db | Immutable after first deploy. |
application_database_user | healthchecks_user | Password auto-generated in Secret Manager. |
Group 13 — Jobs & Scheduled Tasks
| Variable | Default | Description |
|---|---|---|
initialization_jobs | [] | Leave empty to use the built-in db-init + admin-bootstrap jobs. |
Group 14 — Observability & Health
| Variable | Default | Description |
|---|---|---|
startup_probe | HTTP / 60s delay | No dedicated health endpoint exists; / is the public login page. |
liveness_probe | HTTP / 30s delay | Same rationale. |
Group 21 — Redis
| Variable | Default | Description |
|---|---|---|
enable_redis | false | Not used — Healthchecks has no documented Redis integration. |
5. Outputs
| Output | Description |
|---|---|
service_name | Cloud Run service name. |
service_url | Default run.app URL of the service. |
database_instance_name | Cloud SQL instance name. |
database_name / database_user | Application database name / user. |
database_password_secret | Secret Manager secret holding the DB password. |
database_host / database_port | DB endpoint / port. |
container_image / container_registry | Deployed image and Artifact Registry repo. |
initialization_jobs | Names of the setup jobs. |
deployment_id / tenant_id / resource_prefix | Naming identifiers. |
project_id / project_number | Project identifiers. |
6. Configuration Pitfalls & Sensible Defaults
Risk: Critical (data loss / outage / security) — High (service degraded) — Medium (cost or partial degradation) — Low (minor).
| Setting | Sensible value | Risk | Consequence if wrong |
|---|---|---|---|
DB (auto-set) | "postgres" | Critical | If somehow unset, the app silently uses a throwaway local SQLite DB — checks and alert history vanish on every restart, with no error. |
min_instance_count / cpu_always_allocated | 1 / true | High | Scaling to zero or switching to request-based billing throttles the co-located sendalerts loop between requests, so missed check-ins can silently go unnoticed. |
ADMIN_PASSWORD (auto-generated) | Retrieve once, rotate via UI after | Medium | The seeded password is only set on the FIRST successful admin-bootstrap run; re-running the job does not update it. |
DEFAULT_FROM_EMAIL / SMTP vars | Configure real SMTP post-deploy | High | Left at the placeholder default, sendalerts logs delivery errors instead of actually notifying anyone of a missed check-in. |
ALLOWED_HOSTS (auto-set to "*") | Leave as-is unless you have a specific reason | Low | Disabling Django's Host header validation entirely is an accepted trade-off here to keep platform health probes working; Healthchecks has no other Host-based security model. |
application_database_name / application_database_user | Set once | Critical | Immutable after first deploy; renaming recreates the DB/user and destroys all data. |
container_image_source | prebuilt | Critical | Switching to custom with no Dockerfile in Healthchecks_Common/scripts fails the build — Healthchecks has no custom-build script by design. |
For the foundation behaviour referenced throughout — service identity, scaling and concurrency, ingress and load balancing, CI/CD, Cloud Armor, IAP, Binary Authorization, VPC-SC, backups, and image mirroring — see App_CloudRun. Healthchecks-specific application configuration shared with the GKE variant is described in Healthchecks_Common.
