Loki on Google Cloud Run

Grafana Loki is a horizontally-scalable, highly-available log aggregation system — often described as "Prometheus for logs." Unlike full-text log indexers, Loki indexes only a small set of labels per log stream rather than the full text of every line, which keeps storage and operating costs low. It is normally queried with LogQL through Grafana (as a datasource) or the LogCLI tool, with an agent such as Promtail or Grafana Alloy shipping logs into it. This module deploys Loki itself, not Grafana, on Cloud Run v2 on top of the App_CloudRun foundation, which provisions and manages the shared Google Cloud infrastructure.

This guide focuses on the cloud services Loki uses and how to explore and operate them from the Google Cloud Console and the command line. For the mechanics common to every Cloud Run application — service identity, ingress and load balancing, scaling and concurrency, CI/CD, Cloud Armor, IAP, Binary Authorization, VPC Service Controls, backups, and the deployment lifecycle — refer to the App_CloudRun foundation guide rather than repeating them here.

---

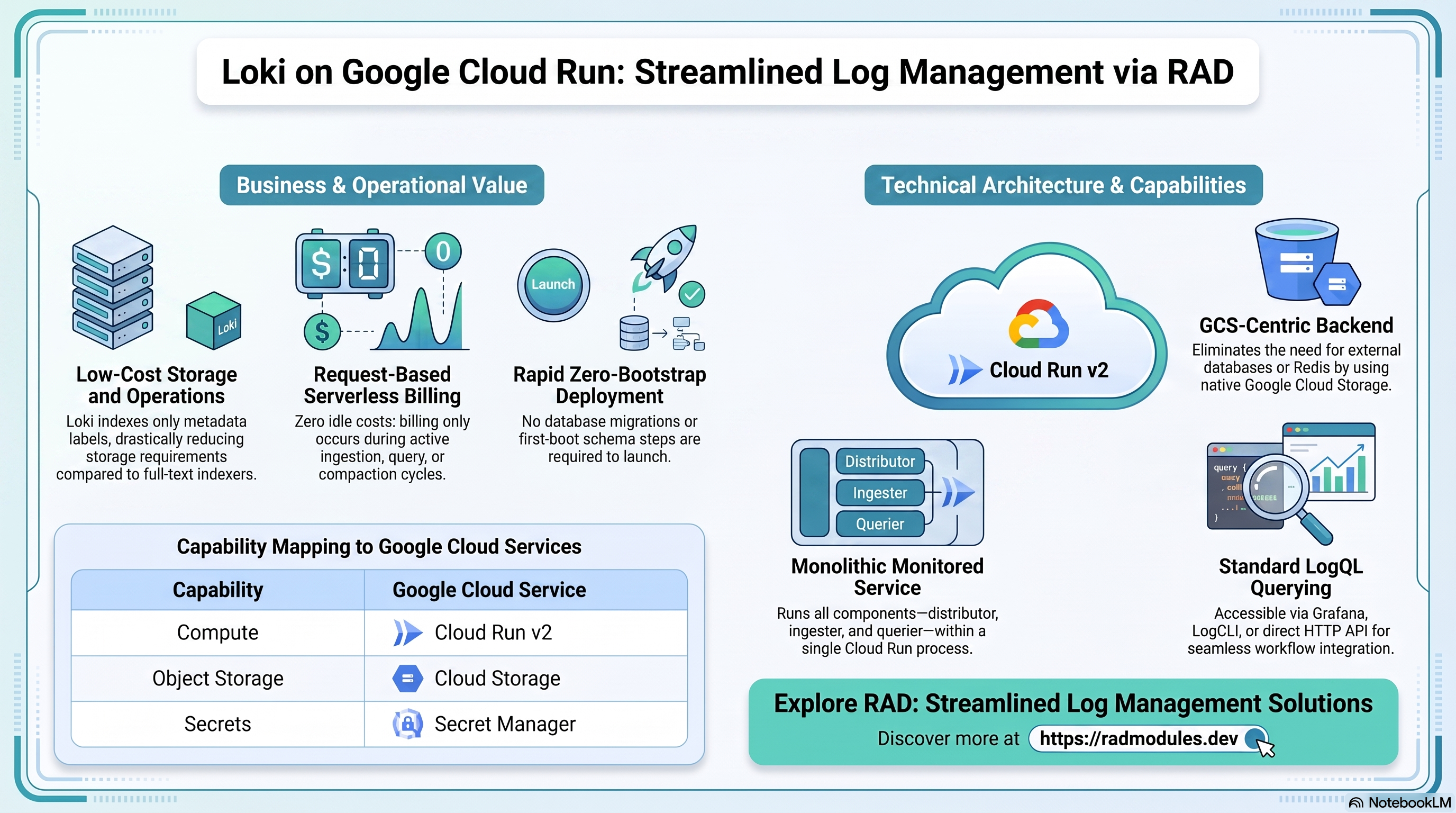

1. Overview

Loki runs as a single Go binary container on Cloud Run v2, in monolithic mode (-target=all, Loki's default, which runs every internal component — distributor, ingester, querier, compactor — in one process). The deployment wires together a narrow, GCS-centric set of Google Cloud services:

Capability	Google Cloud service	Notes
Compute	Cloud Run v2	Go binary service, 1 vCPU / 512Mi by default, request-based billing
Object storage	Cloud Storage	A single storage bucket — Loki's actual object-storage backend for chunks and the shipped TSDB index, not incidental file storage
Secrets	Secret Manager	None generated — Loki_Common declares secret_ids = {}
Ingress	Cloud Run URL	Default run.app URL; optional external HTTPS load balancer + custom domain

Sensible defaults worth knowing up front:

• No database, no Redis. Loki's durable state (chunks, TSDB index) lives entirely in a GCS bucket. database_type = "NONE" and enable_redis has no effect on Loki's own config.
• max_instance_count is effectively pinned to 1. Loki_Common overrides max_instance_count = 1 in the config it hands to App_CloudRun, regardless of the value passed in. Loki's compactor (retention/deletion) is a true singleton and the baked config uses an in-memory ring (common.ring.kvstore.store: inmemory) with replication_factor: 1, which cannot coordinate across multiple instances.
• Single-tenant, no auth. The baked config sets auth_enabled: false. There is no per-tenant isolation and no built-in authentication — Loki's HTTP API is reachable by anyone who can reach the service URL, subject to ingress_settings.
• Request-based billing by default (cpu_always_allocated = false). Loki's ingestion, query, and internal compaction cycle all run in direct response to HTTP requests, with no long-lived background work that needs CPU while idle.
• Config-file driven, not env-var driven. Loki's storage/schema settings live entirely in a config file baked into the image; only the GCS bucket name is templated in at container start via the LOKI_GCS_BUCKET environment variable.
• No init jobs. initialization_jobs defaults to [] — Loki has nothing to bootstrap.
• Custom-built, distroless-based image. See §4 and §7 for why the Dockerfile in this module looks unusual.

---

2. Google Cloud Services & How to Explore Them

All commands assume PROJECT and REGION are set. Service and resource names are reported in the deployment Outputs.

A. Cloud Run — the Loki service

Loki runs as a single Cloud Run v2 service that autoscales by request load. Because max_instance_count is effectively pinned to 1, "autoscaling" here really means scale-to-zero-and-back rather than horizontal fan-out.

• Console: Cloud Run → select the service for revisions, traffic, logs, and metrics.
• CLI:

  gcloud run services list --project "$PROJECT" --region "$REGION"
  gcloud run services describe <service-name> --project "$PROJECT" --region "$REGION"
  gcloud run revisions list --service <service-name> --project "$PROJECT" --region "$REGION"

See App_CloudRun for scaling, concurrency, execution environment, and traffic splitting.

B. Cloud Storage — Loki's object storage backend

A dedicated storage GCS bucket is Loki's actual storage backend, not an optional extra. Loki writes compressed log chunks and the shipped TSDB index shards into it directly via its native gcs storage client (Application Default Credentials — the Cloud Run runtime service account is granted roles/storage.objectAdmin on the bucket).

• Console: Cloud Storage → Buckets → select the storage bucket.
• CLI:

  gcloud storage buckets list --project "$PROJECT" --filter="name~storage"
  gcloud storage ls gs://<storage-bucket>/                 # top-level layout
  gcloud storage ls gs://<storage-bucket>/index_*/          # TSDB index shards (schema prefix "index_")
  gcloud storage du -s gs://<storage-bucket>/                # total bytes stored

  Chunk objects and index shards accumulate under the bucket root and index_* prefixes respectively, per the schema_config baked into the image (schema: v13, index.prefix: index_, index.period: 24h).

See App_CloudRun for GCS Fuse and CMEK options (not used by Loki's own storage path, which is native GCS API access, not a mounted filesystem).

C. Secret Manager

No secrets are generated for Loki — Loki_Common declares secret_ids = {} and secret_values = {}. Any secrets you add via secret_environment_variables are your own operator-supplied values (e.g. if you front Loki with a reverse-proxy auth layer).

• Console: Security → Secret Manager.
• CLI:

  gcloud secrets list --project "$PROJECT"

D. Networking & ingress

The service is reachable at its run.app URL by default (ingress_settings = "all"), which allows log-shipping clients (Promtail, Alloy) outside the project's VPC to push logs in. An external HTTPS load balancer with a custom domain, Cloud CDN, and Cloud Armor can be layered on.

• Console: Cloud Run (service URL); Network services → Load balancing.
• CLI:

  gcloud run services describe <service-name> --region "$REGION" --format='value(status.url)'
  gcloud compute addresses list --project "$PROJECT"

See App_CloudRun.

E. Cloud Logging & Monitoring

Loki's own process logs (not the logs it ingests — those are application data inside the Loki service, not Cloud Logging entries) flow to Cloud Logging; Cloud Run metrics flow to Cloud Monitoring, with optional uptime checks and alert policies.

• Console: Logging → Logs Explorer; Monitoring → Dashboards / Alerting.
• CLI:

  gcloud run services logs read <service-name> --project "$PROJECT" --region "$REGION" --limit 50

---

3. Querying Loki

This module deploys Loki with no built-in web UI — Loki is a headend for logs, queried through LogQL. Two common ways to query it once deployed:

• logcli (Grafana's official CLI), pointed at the service URL:

  export LOKI_ADDR="$SERVICE_URL"
  logcli labels                                             # discover available labels
  logcli query '{job="myapp"}' --limit=50                   # LogQL query

• Direct HTTP against the query API:

  curl -s "$SERVICE_URL/loki/api/v1/query?query=%7Bjob%3D%22myapp%22%7D" | jq .

• As a Grafana datasource — add a Loki datasource in Grafana pointing at the service URL; this is the normal production pattern for exploring and dashboarding ingested logs.

---

4. Loki Application Behaviour

• Config templating at container start, not database migrations. Loki_Common bakes a config template into the image with a single placeholder, __LOKI_GCS_BUCKET__. The container entrypoint substitutes the real bucket name (injected as the LOKI_GCS_BUCKET env var) with sed and writes the result to /etc/loki/local-config.yaml before Loki starts — there is no first-boot schema step to wait on.
• No init jobs needed. Loki has no database to bootstrap, so initialization_jobs is empty by default and this module never injects one.
• Health path is /ready. Both the startup and liveness probes target Loki's built-in, unauthenticated readiness endpoint, which returns HTTP 200 once the server is listening — typically within seconds, since there is no migration or heavy first-boot work.
• Monolithic mode. -target=all runs every Loki component (distributor, ingester, querier, query-frontend, compactor) inside the single process — the right shape for a small/medium single-tenant deployment. Loki also supports a microservices mode (separate containers per component) for very large-scale deployments, which this module does not implement.
• Single-instance scaling constraint. The in-memory ring (common.ring.kvstore.store: inmemory) and the compactor's singleton retention job mean Loki here is not designed to run more than one instance concurrently. Loki_Common enforces this by pinning max_instance_count = 1 in the config it passes to the Foundation, regardless of what the platform input is set to.
• Retention. The baked config sets limits_config.retention_period: 720h (30 days) with the compactor performing deletion (retention_enabled: true, delete_request_store: gcs).
• Inspect the running container's environment (e.g. to confirm the bucket actually injected):

  gcloud run services describe <service-name> --region "$REGION" \
    --format='value(spec.template.spec.containers[0].env)'

---

5. Configuration Variables

Variables are grouped exactly as they appear on the deployment platform. Only settings specific to or notable for Loki are listed; every other input is inherited from App_CloudRun with its standard behaviour.

Group 1 — Project & Identity

Variable	Default	Description
project_id	(required)	Target Google Cloud project.
region	us-central1	Region for the service and regional resources.

Group 3 — Application Identity

Variable	Default	Description
application_name	loki	Base name for resources. Do not change after first deploy.
application_version	latest	"latest" resolves to the pinned LOKI_VERSION build ARG (3.6.12) — not the generic APP_VERSION, which the Foundation would otherwise force to a non-existent latest Loki tag. Set an explicit tag (e.g. 3.6.12) to pin a specific release.

Group 4 — Runtime & Scaling

Variable	Default	Description
deploy_application	true	Set false to provision infrastructure only.
container_port	3100	Loki's HTTP listener port — fixed by the baked config (server.http_listen_port). Changing this without also changing the config template will break the deployment.
max_instance_count	1	Overridden to 1 by Loki_Common regardless of this value — see §1.
cpu_limit / memory_limit	1000m / 512Mi	Per-instance resource limits. Raise memory for high-cardinality label sets or heavy query load.
cpu_always_allocated	false	Request-based billing — Loki has no idle background work.
enable_cloudsql_volume	false	Off — Loki has no database.
execution_environment	gen2	Gen2 recommended.

Group 5 — Access & Networking

Variable	Default	Description
ingress_settings	all	all is required for external log-shipping clients (Promtail, Alloy) outside the project VPC to reach the push API.
enable_iap	false	Enabling IAP blocks unauthenticated log pushes/queries from external agents.

Group 6 — Environment Variables & Secrets

Variable	Default	Description
environment_variables	{}	Extra plain-text env vars, merged over LOKI_GCS_BUCKET (injected automatically). Loki reads almost nothing from the environment — its config is file-driven.
secret_environment_variables	{}	No secrets are needed by default.

Group 11 — Storage & Filesystem

Variable	Default	Description
storage_buckets	[]	Additional buckets beyond the auto-provisioned storage bucket Loki actually uses for chunks/index.
enable_nfs	false	Not needed for Loki's own storage (GCS-backed), unlike SQLite-backed apps in this catalog.

Group 12 — Database Backend

Variable	Default	Description
database_type	NONE	Fixed — Loki's durable storage is the GCS bucket, not Cloud SQL. All other Group 12 variables are inert.

Group 13 — Jobs & Scheduled Tasks

Variable	Default	Description
initialization_jobs	[]	Loki needs no init job. Left empty by both this module and Loki_Common.

Group 14 — Observability & Health

Variable	Default	Description
startup_probe / liveness_probe	HTTP /ready, 30s delay	Loki's built-in readiness endpoint — becomes healthy within seconds since there is no migration step.

Group 16 — Redis

Variable	Default	Description
enable_redis	false	Loki has no built-in use for Redis; this exists only for Foundation-mirroring completeness.

All other inputs follow standard App_CloudRun behaviour.

---

6. Outputs

Returned on a successful deployment — the quickest way to locate and explore the running resources.

Output	Description
service_name	Cloud Run service name.
service_url	Default run.app URL of the service.
service_location	Region the service runs in.
storage_buckets	Created Cloud Storage buckets — includes the storage bucket Loki uses for chunks and the TSDB index.
database_instance_name / database_name / database_user / database_password_secret	Always empty — database_type = "NONE".
container_image / container_registry	Deployed image and Artifact Registry repo.
network_name / network_exists / regions	VPC network, presence, regions.
monitoring_enabled / monitoring_notification_channels / uptime_check_names	Monitoring status, channels, uptime checks.
initialization_jobs	Always empty — Loki needs no init job.
deployment_id / tenant_id / resource_prefix	Naming identifiers.
project_id / project_number	Project identifiers.
cicd_enabled / github_repository_url / cicd_configuration	CI/CD status and details.
vpc_sc_enabled / vpc_sc_perimeter_name / vpc_sc_dry_run_mode	VPC-SC status.
audit_logging_enabled / artifact_registry_cmek_enabled	Audit logging and CMEK status.

---

7. Configuration Pitfalls & Sensible Defaults

Risk: Critical (data loss / outage / security) — High (service degraded) — Medium (cost or partial degradation) — Low (minor).

Inherited plan-time validation. This module passes its configuration through the App_CloudRun foundation engine, which validates values and combinations at plan time. Invalid configuration fails the plan with a clear, named error before any resource is created, so most mistakes below are caught up front rather than at apply or runtime.

Note for operators/maintainers: why the Dockerfile in this module looks unusual. The official grafana/loki image is genuinely distroless — inspecting its filesystem shows only /usr/bin/loki, with no shell, no coreutils, and no dynamic linker at all. A standard Dockerfile pattern (RUN chmod +x /entrypoint.sh) fails outright at build time (exec: /bin/sh: no such file or directory) because RUN needs a shell. The first fix attempt — grafting a busybox binary from the default busybox:stable tag via a multi-stage COPY — also failed, with the more confusing error exec /bin/busybox: no such file or directory, because busybox:stable's binary is dynamically linked and the distroless target has no dynamic linker to satisfy it. The fix was to switch to busybox:musl, verified via file to be genuinely statically linked (no interpreter needed): FROM busybox:musl AS busybox in a build-only stage, COPY --from=busybox /bin/busybox /bin/busybox into the final distroless-based image, and ENTRYPOINT ["/bin/busybox", "sh", "/entrypoint.sh"] (busybox invoked directly by absolute path — no applet symlinks exist, so even the entrypoint script itself calls /bin/busybox sed ... rather than a bare sed). If you ever touch this Dockerfile, or clone it for another distroless-based application, remember: verify a grafted busybox tag is genuinely static (file <binary> should show no interpreter / dynamically linked) before assuming it will run inside a distroless target.

Setting	Sensible value	Risk	Consequence if wrong
max_instance_count	Leave at default (effectively pinned to 1)	Critical	Even though Loki_Common overrides this to 1 in the config it passes to the Foundation, don't rely on scaling Loki horizontally in this deployment shape — the in-memory ring and singleton compactor are not designed for concurrent instances.
container_port	3100 (do not change without also editing the config template)	Critical	Loki's server.http_listen_port is baked into the config file, not read from container_port at runtime — mismatching them breaks routing between Cloud Run and the container.
ingress_settings	all for external log-shipping	High	Setting internal blocks Promtail/Alloy agents running outside the project VPC from pushing logs in.
enable_iap	false unless all log-shipping clients can authenticate through IAP	High	IAP blocks all unauthenticated requests, including the push API used by log-shipping agents.
Access control	None by default (auth_enabled: false)	High	Loki's HTTP API (push and query) has no built-in authentication. Anyone who can reach the service URL can push or query logs. Front it with IAP, a Cloud Armor policy, or a reverse-proxy auth layer if this matters for your deployment.
application_version	Pin an explicit tag (e.g. 3.6.12) for production	Medium	"latest" silently resolves to whatever tag Loki_Common's Dockerfile currently pins, which changes only when the module source changes — not a live upstream latest, but also not something you control per-deployment without setting an explicit tag.
memory_limit	Raise above 512Mi for high-cardinality labels or heavy query load	Medium	Loki's query engine and in-memory index cache can OOM under load with the conservative default.
database_type	Leave at NONE	Low	Setting anything else has no effect — Loki_Common never wires a database connection into Loki's config regardless.

---

For the foundation behaviour referenced throughout — service identity, scaling and concurrency, ingress and load balancing, CI/CD, Cloud Armor, IAP, Binary Authorization, VPC-SC, backups, and image mirroring — see App_CloudRun. Loki-specific application configuration shared with the GKE variant is described in Loki_Common.
