Flarum on Google Cloud Run

Flarum is a free, open-source forum and discussion platform — a modern, extensible alternative to traditional bulletin-board software, built on PHP with a JavaScript/Mithril front end and a REST API. This module deploys Flarum on Cloud Run v2 on top of the App_CloudRun foundation, which provisions and manages the shared Google Cloud infrastructure.

This guide focuses on the cloud services Flarum uses and how to explore and operate them from the Google Cloud Console and the command line. For the mechanics common to every Cloud Run application — service identity, ingress and load balancing, scaling and concurrency, CI/CD, Cloud Armor, IAP, Binary Authorization, VPC Service Controls, backups, and the deployment lifecycle — refer to the App_CloudRun foundation guide rather than repeating them here.

---

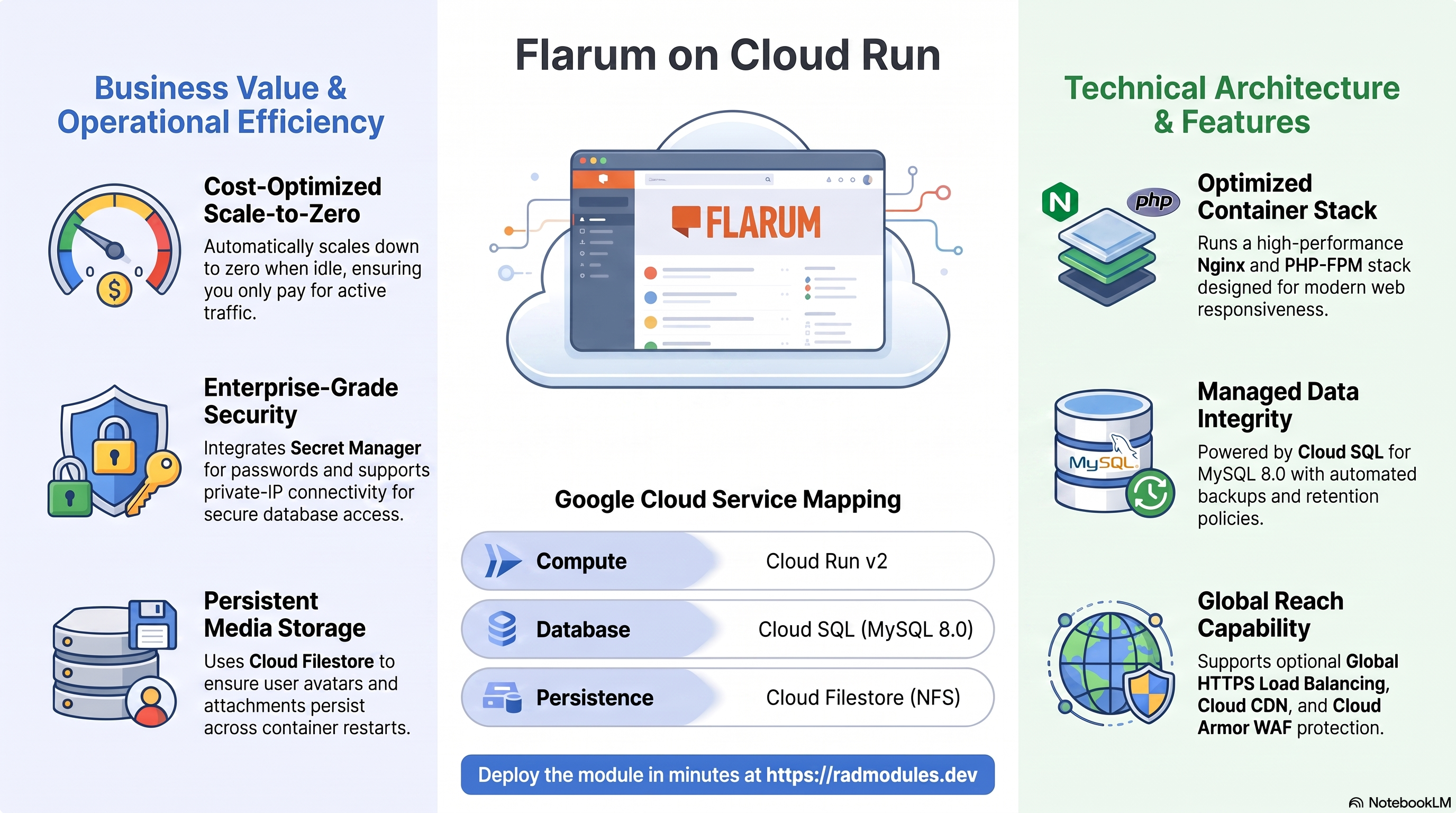

1. Overview

Flarum runs as a single nginx + php-fpm container built from the mondedie/flarum community image. The deployment wires together a focused set of Google Cloud services:

Capability	Google Cloud service	Notes
Compute	Cloud Run v2	nginx/php-fpm container on port 8888, 1 vCPU / 2 GiB by default; scale-to-zero supported
Database	Cloud SQL for MySQL 8.0	Required — the engine is fixed at MYSQL_8_0 by Flarum_Common
File persistence	Cloud Filestore (NFS)	Enabled by default; uploaded avatars/attachments persist under /flarum/app/public/assets
Object storage	Cloud Storage	A flarum-assets bucket (from Flarum_Common) plus a default data bucket are provisioned; neither is mounted by default
Secrets	Secret Manager	Auto-generated FLARUM_ADMIN_PASS; database password managed separately
Ingress	Cloud Run URL / Cloud Load Balancing	Default run.app URL; optional external HTTPS load balancer + custom domain

Sensible defaults worth knowing up front:

• MySQL 8.0 is mandatory. Flarum_Common hardcodes database_type = "MYSQL_8_0" in its output config; the variant's database_type variable only takes effect if explicitly overridden away from its MYSQL_8_0 default.
• Cloud SQL is reached via direct private-IP TCP by default, NOT the Auth Proxy socket. enable_cloudsql_volume defaults to false on this variant (it overrides Flarum_Common's own true default), so DB_HOST resolves to the Cloud SQL instance's private IP and the mondedie entrypoint connects over TCP through VPC egress. This is the opposite of the Flarum_GKE variant, which always uses a cloud-sql-proxy sidecar on loopback. Set enable_cloudsql_volume = true to switch to the Unix-socket connection instead.
• Scale-to-zero is enabled by default (min_instance_count = 0), unlike the GKE variant which defaults to min_instance_count = 1. Cold starts add latency to the first request after idle; set min_instance_count = 1 for an always-reachable forum.
• NFS is enabled by default (enable_nfs = true, mounted at /flarum/app/public/assets) so user avatars and attachments persist and are shared across instances.
• FORUM_URL is auto-wired on Cloud Run — unlike the GKE variant. main.tf computes the deterministic predicted run.app service URL and passes it into Flarum_Common as service_url, which sets FORUM_URL automatically. If you front the service with a custom domain or the external HTTPS load balancer, override FORUM_URL via environment_variables to match the actual public hostname.
• FLARUM_ADMIN_PASS is generated automatically and stored in Secret Manager. The admin username and email are fixed by Flarum_Common's defaults (admin / admin@techequity.cloud) — they are not exposed as Application Module variables on this variant, so retrieve the generated password before first login rather than expecting to configure the username/email.
• php_memory_limit, upload_max_filesize, and post_max_size have no effect. These three variables are declared and forwarded to Flarum_Common, but Flarum_Common's configuration never references them — they are inert leftovers from the WordPress-derived template this module was cloned from. Changing them changes nothing in the deployed container.
• The image is a thin custom build, not a prebuilt image. container_image_source = "custom" builds FROM mondedie/flarum via Cloud Build, re-tagging the base image through the app-specific FLARUM_VERSION build ARG (because the Foundation's own APP_VERSION build arg would otherwise win the merge and force a moving tag). application_version = "latest" maps to the image's own production-recommended stable tag.
• No separate migration job. The mondedie/flarum image's own s6-overlay entrypoint runs the Flarum installer on first container start, once the db-init job has created the database and user.

---

2. Google Cloud Services & How to Explore Them

All commands assume PROJECT and REGION are set. Service and resource names are reported in the deployment Outputs.

A. Cloud Run — the Flarum service

Flarum runs as a Cloud Run v2 service that autoscales by request load between the minimum and maximum instance counts. Each deployment creates an immutable revision; traffic can be split across revisions for safe rollouts.

• Console: Cloud Run → select the service for revisions, traffic, logs, and metrics.
• CLI:

  gcloud run services list --project "$PROJECT" --region "$REGION"
  gcloud run services describe <service-name> --project "$PROJECT" --region "$REGION"
  gcloud run revisions list --service <service-name> --project "$PROJECT" --region "$REGION"

See App_CloudRun for scaling, concurrency, execution environment, and traffic splitting.

B. Cloud SQL for MySQL 8.0

Flarum stores all forum data (discussions, posts, users, tags) in a managed Cloud SQL for MySQL 8.0 instance, with tables prefixed flarum_. By default (enable_cloudsql_volume = false) the service connects over direct private-IP TCP through VPC egress; setting enable_cloudsql_volume = true instead mounts the Cloud SQL Auth Proxy as a Unix socket volume. On first deploy an initialization Job creates the application database and user; the Flarum installer then creates the schema on first container boot.

• Console: SQL → select the instance for connections, backups, flags, metrics.
• CLI:

  gcloud sql instances list --project "$PROJECT"
  gcloud sql instances describe <instance-name> --project "$PROJECT"
  gcloud sql connect <instance-name> --user=<db-user> --database=<db-name> --project "$PROJECT"

The instance name, database, user, and password secret are in the Outputs. See App_CloudRun for the connection model, backups, and password rotation.

C. Cloud Storage & Filestore (NFS)

A Cloud Storage flarum-assets bucket (from Flarum_Common) and a default data bucket (from the storage_buckets variable) are provisioned automatically, but neither is mounted into the container by default — add an entry to gcs_volumes if you want to use one as a filesystem mount. Separately, Flarum's uploaded avatars and attachments live on Cloud Filestore (NFS) at /flarum/app/public/assets, mounted because enable_nfs = true by default.

• Console: Cloud Storage → Buckets; Filestore → Instances.
• CLI:

  gcloud storage buckets list --project "$PROJECT" --filter="name~flarum"
  gcloud filestore instances list --project "$PROJECT"

See App_CloudRun for GCS Fuse, CMEK options, and NFS discovery behaviour.

D. Secret Manager

One Flarum-specific secret is generated automatically and stored in Secret Manager: FLARUM_ADMIN_PASS (the first-run administrator password, 24 characters). The admin username and email are fixed at admin / admin@techequity.cloud and are not stored as secrets. The database password is managed separately by the foundation.

• Console: Security → Secret Manager.
• CLI:

  gcloud secrets list --project "$PROJECT" --filter="name~flarum AND name~admin-pass"
  gcloud secrets versions access latest --secret=<secret-name> --project "$PROJECT"

See App_CloudRun for injection and rotation details.

E. Redis (optional)

Redis is disabled by default (enable_redis = false). When enabled without an explicit redis_host, the Foundation injects the shared NFS server VM's IP as REDIS_HOST (requires enable_nfs = true or a discoverable Services_GCP-managed NFS server) — this Foundation-level injection always wins over Flarum_Common's own placeholder value, so a working Redis endpoint reaches the container either way.

• Console: Memorystore → Redis (if using a managed instance).
• CLI:

  redis-cli -h <redis-host> ping
  # Confirm the resolved host in the running revision:
  gcloud run services describe <service-name> --region "$REGION" \
    --format='value(spec.template.spec.containers[0].env)'

F. Networking & ingress

The service is reachable at its run.app URL by default (ingress_settings = "all"). An external HTTPS load balancer with a custom domain, Cloud CDN, and Cloud Armor can be layered on; ingress settings and VPC egress control connectivity.

• Console: Cloud Run (service URL); Network services → Load balancing.
• CLI:

  gcloud run services describe <service-name> --region "$REGION" --format='value(status.url)'
  gcloud compute addresses list --project "$PROJECT"

See App_CloudRun.

G. Cloud Logging & Monitoring

Container logs flow to Cloud Logging; Cloud Run and Cloud SQL metrics flow to Cloud Monitoring, with optional uptime checks and alert policies.

• Console: Logging → Logs Explorer; Monitoring → Dashboards / Alerting.
• CLI:

  gcloud run services logs read <service-name> --project "$PROJECT" --region "$REGION" --limit 50

---

3. Flarum Application Behaviour

• First-deploy database setup. An initialization Job (db-init) runs db-init.sh using mysql:8.0-debian. It locates the Cloud SQL Auth Proxy Unix socket under /cloudsql (waiting up to 30 s when enable_cloudsql_volume = true) or falls back to the instance private IP over TCP, idempotently creates the application database and user, grants privileges, verifies the app user can connect (warming MySQL 8's caching_sha2_password server-side cache), and gracefully shuts down the Auth Proxy sidecar. The job is safe to re-run.
• No separate migration job. The mondedie/flarum image's own s6-overlay entrypoint runs the Flarum installer automatically on first container start, creating the schema (with the flarum_ table prefix) once db-init has provisioned the database and user. The custom Dockerfile is an unmodified thin wrapper over the base image — it neither overrides ENTRYPOINT nor adds a migrate step.
• Admin account. The installer creates a first-run administrator whose username is admin and email is admin@techequity.cloud (fixed Flarum_Common defaults, not exposed as module variables) and whose password is the generated FLARUM_ADMIN_PASS secret. This is generated once and never rotated by the module — changing the secret after install does not change the admin login (change it from the Flarum admin UI instead).
• DB env-var wiring. Flarum_CloudRun's main.tf sets db_user_env_var_name = "DB_USER", db_password_env_var_name = "DB_PASS", and db_name_env_var_name = "DB_NAME" on the Foundation call — the exact env names the mondedie/flarum installer expects — so no alias entrypoint is needed. Flarum_Common additionally sets DB_PORT = "3306" and DB_PREF = "flarum_" directly in environment_variables.
• FORUM_URL is set automatically from the predicted run.app service URL. If you add a custom domain or load balancer in front of the service, update FORUM_URL via environment_variables to the actual public hostname, or absolute links, asset URLs, and redirects will point at the wrong host.
• Registration/sign-up. Flarum's own public registration setting is an in-app admin preference (Admin → Basics), not something this module toggles — review it after first login if you want to restrict who can create forum accounts.
• Health path. The application-specific startup_probe defaults to a TCP check on the container port (8888) with a generous failure_threshold = 20 at period_seconds = 15 (five minutes of grace) to accommodate the first-boot installer. The liveness_probe defaults to HTTP GET / — Flarum's unauthenticated public forum home page — with an initial_delay_seconds = 300 (five minutes) before the first check.
• Redis (optional). enable_redis defaults to false. When enabled without an explicit redis_host, the Foundation requires enable_nfs = true or a discoverable NFS server (plan-time validation on App_CloudRun) — otherwise the apply fails with a clear error rather than deploying a forum that can't reach Redis.
• Inspect job execution and running config:

  gcloud run jobs list --project "$PROJECT" --region "$REGION"
  gcloud run jobs executions list --job <job-name> --project "$PROJECT" --region "$REGION"
  gcloud run services describe <service-name> --region "$REGION" \
    --format='value(spec.template.spec.containers[0].env)'

---

4. Configuration Variables

Variables are grouped exactly as they appear on the deployment platform. Only settings specific to or notable for Flarum are listed; every other input is inherited from App_CloudRun with its standard behaviour and defaults.

Group 1 — Project & Identity

Variable	Default	Description
project_id	(required)	Target Google Cloud project.
region	us-central1	Region for the service and regional resources.

Group 2 — Deployment Environment

Variable	Default	Description
tenant_deployment_id	demo	Short suffix that makes resource names unique per environment.
support_users	[]	Emails granted project access and monitoring alerts.
resource_labels	{}	Labels applied to all resources.

Group 3 — Application Identity

Variable	Default	Description
application_name	flarum	Base name for resources. Do not change after first deploy.
display_name	Flarum	Human-readable name shown in the Console.
description	Flarum wiki on Cloud Run	Service description text. Cosmetic only — despite the wording, Flarum is a forum, not a wiki; this has no functional effect.
application_version	latest	Maps to the mondedie/flarum stable tag via the FLARUM_VERSION build ARG; any other value is used verbatim.
php_memory_limit	512M	Inert — declared and forwarded to Flarum_Common, but never consumed. Has no effect on the deployed container.
upload_max_filesize	64M	Inert — same as above.
post_max_size	64M	Inert — same as above.

Group 4 — Runtime & Scaling

Variable	Default	Description
deploy_application	true	Set false to provision infrastructure only.
container_image_source	custom	Thin build FROM mondedie/flarum. Keep custom — prebuilt bypasses the FLARUM_VERSION build-arg mechanism entirely.
container_image	""	Leave empty; Flarum_Common supplies the built image.
cpu_limit	1000m	1 vCPU for nginx + php-fpm.
memory_limit	2Gi	Minimum ~512Mi enforced by the gen2 execution-environment floor.
min_instance_count	0	Scale-to-zero by default — differs from the GKE variant's min=1.
max_instance_count	1	Keep at 1 unless multi-instance NFS/DB sharing is verified.
container_port	8888	mondedie/flarum serves nginx + php-fpm on 8888.
execution_environment	gen2	Required for NFS and GCS Fuse mounts.
timeout_seconds	300	Maximum request duration (0–3600 seconds).
enable_cloudsql_volume	false	Cloud-Run-specific override of Flarum_Common's own true default — Flarum connects via direct private-IP TCP unless you flip this to true for the Auth Proxy Unix-socket volume.
enable_image_mirroring	true	Mirror the mondedie/flarum base image into Artifact Registry for Cloud Build.
traffic_split	[]	Split traffic across revisions for staged rollouts.
container_protocol	http1	h2c available if the app supports HTTP/2 cleartext.
max_revisions_to_retain	7	Declared for convention parity; not referenced by this module's deployment.

Group 5 — Access & Ingress Control

Variable	Default	Description
ingress_settings	all	Public access for the forum.
vpc_egress_setting	PRIVATE_RANGES_ONLY	Route only RFC 1918 traffic via VPC — sufficient for the default private-IP TCP DB connection.
enable_iap	false	Require Google sign-in. Blocks anonymous/public forum access.
iap_authorized_users / iap_authorized_groups	[]	Who may access through IAP.

Group 6 — Environment Variables & Secrets

Variable	Default	Description
environment_variables	{}	Extra non-secret settings, e.g. an overridden FORUM_URL. Do not set DB_HOST/DB_PORT/DB_PREF/FLARUM_ADMIN_* here — they are managed by the module.
secret_environment_variables	{}	Map of env var → Secret Manager secret name.
secret_propagation_delay	30	Seconds to wait after secret creation before proceeding.
secret_rotation_period	2592000s	Secret Manager rotation notification frequency.

Group 7 — Backup & Restore

Variable	Default	Description
backup_schedule	0 2 * * *	Automated backup cron (UTC).
backup_retention_days	7	Retention; raise for production/compliance.
enable_backup_import / backup_source / backup_uri / backup_format	restore options	Restore from a backup on deploy.

Group 8 — CI/CD & Binary Authorization

Standard App_CloudRun Cloud Build / Cloud Deploy integration — see App_CloudRun. Key inputs: enable_cicd_trigger, github_repository_url, github_token, enable_cloud_deploy, enable_binary_authorization.

Group 9 — Custom SQL Scripts & NFS Instance Targeting

enable_custom_sql_scripts, custom_sql_scripts_bucket, custom_sql_scripts_path, custom_sql_scripts_use_root — run SQL from a GCS bucket after provisioning. nfs_instance_name / nfs_instance_base_name let you target or name an existing NFS GCE VM instead of relying on auto-discovery. See App_CloudRun.

Group 10 — Load Balancer, CDN & Image Retention

Variable	Default	Description
enable_cloud_armor	false	Provision Global HTTPS LB + Cloud Armor WAF.
admin_ip_ranges	[]	CIDR ranges exempted from WAF rules.
application_domains	[]	Custom domain names for the HTTPS LB.
enable_cdn	false	Enable Cloud CDN on the HTTPS LB backend.
max_images_to_retain / delete_untagged_images / image_retention_days	(set)	Artifact Registry cleanup policy.

Group 11 — Storage & Filesystem

Variable	Default	Description
create_cloud_storage	true	Create GCS buckets defined in storage_buckets.
storage_buckets	[{ name_suffix = "data" }]	Additional GCS bucket — created alongside (not instead of) Flarum_Common's flarum-assets bucket.
enable_nfs	true	NFS is on by default so uploaded avatars/attachments persist and are shared.
nfs_mount_path	/flarum/app/public/assets	Where Flarum stores user-uploaded assets.
gcs_volumes	[]	No bucket is mounted into the container by default; add an entry to actually use flarum-assets or data as a filesystem mount.
manage_storage_kms_iam / enable_artifact_registry_cmek	false	CMEK options.

Group 12 — Database Backend

Variable	Default	Description
database_type	MYSQL_8_0	Fixed by Flarum_Common; only matters if explicitly overridden.
db_name	flarum	Database name. Immutable after first deploy.
db_user	flarum	Application database user. Password auto-generated in Secret Manager.
database_password_length	32	Generated password length (16–64).
enable_auto_password_rotation / rotation_propagation_delay_sec	off / 90	DB password rotation.

Several Foundation-mirror variables in this group (application_database_name, application_database_user, db_password_env_var_name, db_host_env_var_name, db_user_env_var_name, db_name_env_var_name, db_port_env_var_name, service_url_env_var_name, sql_instance_name, sql_instance_base_name, enable_mysql_plugins, mysql_plugins, enable_postgres_extensions, postgres_extensions) are declared for convention parity but not forwarded by main.tf — the actual DB_USER / DB_NAME / DB_PASS env-var names the mondedie image expects are hardcoded directly, not sourced from these variables.

Group 13 — Jobs & Scheduled Tasks

Variable	Default	Description
initialization_jobs	[]	Leave empty to use the built-in db-init job.
cron_jobs	[]	Forwarded to the Foundation — define recurring Cloud Scheduler-triggered jobs here if needed.

Group 14 — Observability & Health

Variable	Default	Description
startup_probe	TCP on port 8888, 30s initial delay, 20×15s window	Startup probe. Generous grace window for the first-boot installer.
liveness_probe	HTTP / , 300s initial delay	Liveness probe — five-minute delay to avoid killing the container mid-install.
uptime_check_config	{ enabled=false, path="/" }	Cloud Monitoring uptime check; disabled by default, enable explicitly to activate.
alert_policies	[]	Metric alert policies.

Group 15 — Networking

network_name is declared for convention parity but not forwarded by main.tf — the VPC network is always auto-discovered.

Group 21 — Redis Cache & Queue

Variable	Default	Description
enable_redis	false	Optional Redis object cache backend.
redis_host	""	Leave empty to use the shared NFS server's IP (requires enable_nfs = true or a discoverable NFS server).
redis_port	6379	Redis port.
redis_auth	""	Optional Redis auth password (sensitive).

Group 22 — VPC Service Controls & Audit Logging

Variable	Default	Description
enable_vpc_sc	false	Enforce a VPC-SC perimeter (requires organization_id).
vpc_cidr_ranges / vpc_sc_dry_run	(set)	Access level CIDRs / dry-run mode.
enable_audit_logging	false	Detailed Cloud Audit Logs.

---

5. Outputs

Returned on a successful deployment — the quickest way to locate and explore the running resources.

Output	Description
service_name	Cloud Run service name.
service_url	Default run.app URL of the service.
service_location	Region the service runs in.
stage_services	Stage-specific service URLs (Cloud Deploy).
load_balancer_ip / load_balancer_url	External HTTPS load balancer IP / URL (when enabled).
database_instance_name	Cloud SQL instance name.
database_name / database_user	Application database name / user.
database_password_secret	Secret Manager secret holding the DB password.
database_host / database_port	DB endpoint / port.
storage_buckets	Created Cloud Storage buckets (flarum-assets and data).
network_name / network_exists / regions	VPC network, presence, regions.
container_image / container_registry	Deployed image and Artifact Registry repo.
monitoring_enabled / monitoring_notification_channels / uptime_check_names	Monitoring status, channels, uptime checks.
initialization_jobs	Names of the setup jobs.
deployment_id / tenant_id / resource_prefix	Naming identifiers.
project_id / project_number	Project identifiers.
cicd_enabled / github_repository_url / github_repository_owner / github_repository_name / cicd_configuration	CI/CD status and details.
artifact_registry_repository / cloudbuild_trigger_name / cloudbuild_trigger_id	Registry and build trigger.
vpc_sc_enabled / vpc_sc_perimeter_name / vpc_sc_dry_run_mode	VPC-SC status.
audit_logging_enabled / artifact_registry_cmek_enabled	Audit logging and CMEK status.

---

6. Configuration Pitfalls & Sensible Defaults

Risk: Critical (data loss / outage / security) — High (service degraded) — Medium (cost or partial degradation) — Low (minor).

Inherited plan-time validation. This module passes its configuration through the App_CloudRun foundation engine, which validates values and combinations at plan time — a read replica without its primary, IAP with no authorized identities, a gen1 runtime with NFS/GCS mounts, enable_redis = true with an empty redis_host and no discoverable NFS server, an out-of-range redis_port/backup_retention_days. Invalid configuration fails the plan with a clear, named error before any resource is created, so most mistakes below are caught up front rather than at apply or runtime.

Setting	Sensible value	Risk	Consequence if wrong
database_type	MYSQL_8_0	Critical	Selecting a non-MySQL engine breaks the installer and every query.
db_name / db_user	Set once	Critical	Immutable after first deploy; renaming recreates the DB/user and orphans all data.
container_image_source	custom	Critical	Switching to prebuilt bypasses the FLARUM_VERSION build-arg mechanism this module relies on to pin the mondedie base-image tag.
enable_backup_import	false unless restoring	Critical	Enabling without a valid backup_uri fails the import job.
FORUM_URL (auto-injected)	Actual public URL	High	If you add a custom domain or load balancer, an unmatched FORUM_URL breaks absolute links, asset URLs, and redirects.
enable_cloudsql_volume	false (TCP) or true (socket) — pick one deliberately	High	Left at its default with restrictive vpc_egress_setting/firewall changes, direct private-IP TCP to Cloud SQL can be blocked; switching to true requires the socket path to actually mount.
enable_nfs	true	High	Disabling it makes uploaded avatars/attachments ephemeral — lost on container restart or scale-to-zero.
max_instance_count	1	High	Scaling beyond 1 without verified shared-storage/lock behaviour risks split sessions and NFS/DB lock contention.
enable_iap	only when public access not needed	High	IAP blocks all unauthenticated requests, including anonymous forum visitors.
FLARUM_ADMIN_PASS (auto-generated)	Retrieve before first login	Medium	Not knowing it locks you out of the first administrator account until reset via the database.
php_memory_limit / upload_max_filesize / post_max_size	N/A	Medium	These variables are inert — changing them does not change PHP behaviour or upload limits in the deployed container.
gcs_volumes (empty by default)	Add an entry to actually use a bucket	Medium	The flarum-assets and data buckets are billed and created but do nothing unless explicitly mounted.
min_instance_count	1 for an always-reachable forum	Medium	Scale-to-zero (0, the default) adds cold-start delay on the first request after idle.
memory_limit	2Gi	Medium	Undersizing PHP-FPM under load risks OOM kills.
backup_retention_days	7 (raise for prod)	Medium	Too short for compliance retention.

---

For the foundation behaviour referenced throughout — service identity, scaling and concurrency, ingress and load balancing, CI/CD, Cloud Armor, IAP, Binary Authorization, VPC-SC, backups, and image mirroring — see App_CloudRun. Flarum-specific application configuration shared with the GKE variant — the admin credential, database bootstrap, container image build, core settings, and health probe defaults — is described in Flarum_Common.
