Rocket.Chat on GKE Autopilot
Rocket.Chat is an open-source, self-hosted team-communication platform — a Slack/Teams alternative built on Node.js and Meteor, with channels, direct messages, threads, voice/video, and an omnichannel/LiveChat layer. This module deploys Rocket.Chat on GKE Autopilot on top of the App_GKE foundation, which provisions and manages the shared Google Cloud and Kubernetes infrastructure.
This guide focuses on the cloud services Rocket.Chat uses and how to explore and operate them from the Google Cloud Console and the command line. For the mechanics common to every GKE application — Workload Identity, ingress, autoscaling, CI/CD, Cloud Armor, IAP, Binary Authorization, VPC Service Controls, backups, and the deployment lifecycle — refer to the App_GKE foundation guide rather than repeating them here.

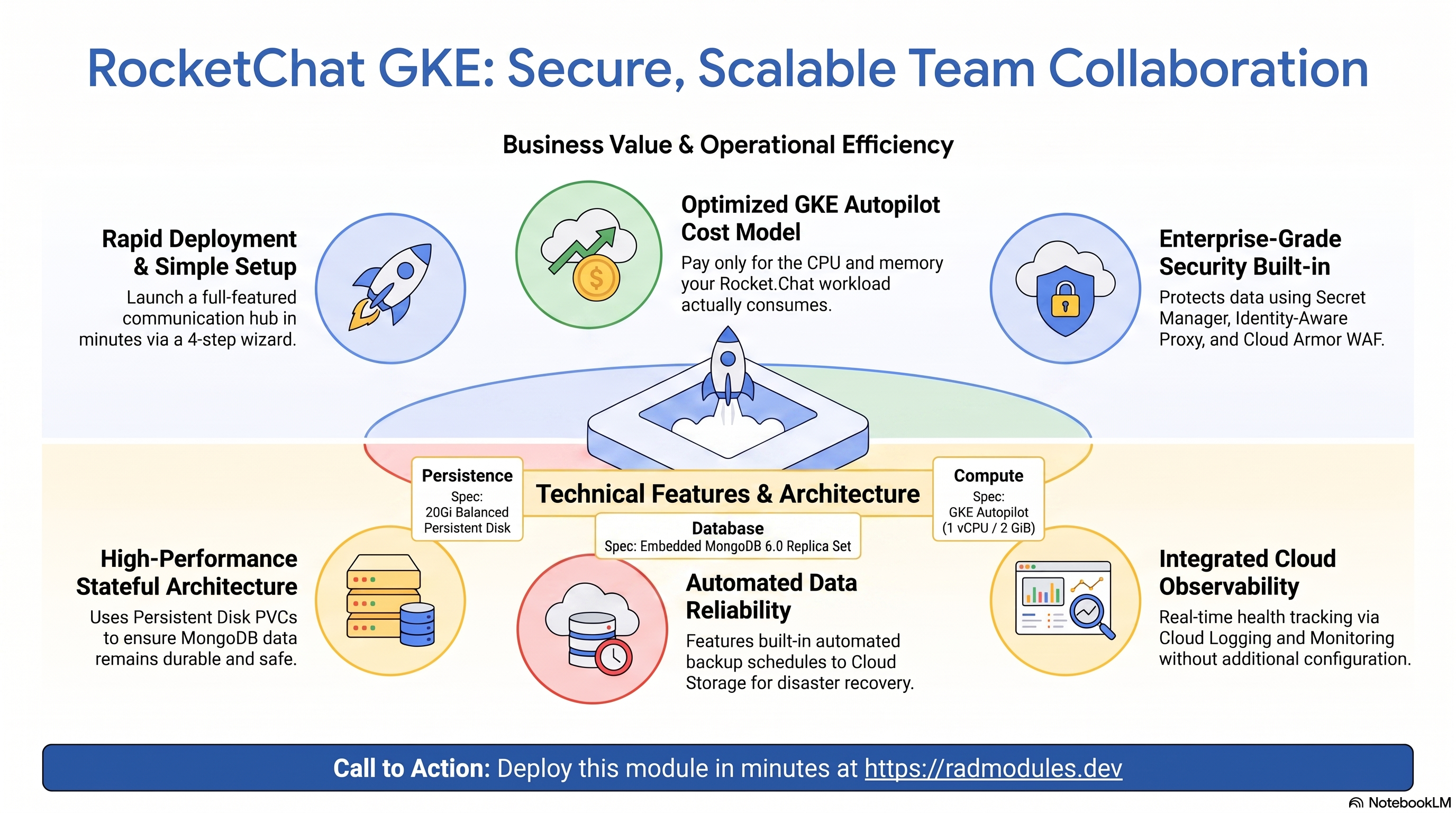

1. Overview
Rocket.Chat runs as a Node.js/Meteor StatefulSet with its datastore embedded in the same pod. The deployment wires together a focused set of Google Cloud services:
| Capability | Google Cloud service | Notes |
|---|---|---|
| Compute | GKE Autopilot | Node.js/Meteor pod, 1 vCPU / 2 GiB by default; a single StatefulSet replica |
| Datastore | Embedded MongoDB 6.0 replica set | Baked into the image — no Cloud SQL. Single-node replica set (rs0) over 127.0.0.1 |
| Persistence | Persistent Disk PVC (block storage) | The MongoDB data directory /data/db is on a ReadWriteOnce PVC — required for WiredTiger |
| Secrets | Secret Manager | Optional API token (enable_api_key) |
| Ingress | ClusterIP / Cloud Load Balancing | Internal by default; optional custom domain + managed certificate + Gateway |
Sensible defaults worth knowing up front:
- MongoDB is embedded, not managed. Meteor's real-time reactivity tails the
MongoDB oplog, which only a replica set provides. No managed datastore here
offers a MongoDB replica set, so the module bundles a single-node replica set
(
rs0) into the pod image. There is no Cloud SQL instance. - MongoDB 6.0 from the Debian bullseye repo. The
rocketchat/rocket.chatbase image is Debian bullseye (glibc 2.31); the Dockerfile installs MongoDB 6.0 from the bullseye APT repo because the bookworm/7.0 package needs glibc ≥ 2.34. stateful_pvc_enabled = trueis required. MongoDB's WiredTiger storage engine needs a real block filesystem — agcsfusemount corrupts it. The GKE deploy defaults enable a StatefulSet PVC at/data/db(matchingMONGO_DBPATH). Settingstateful_pvc_enabled = trueauto-resolvesworkload_typetoStatefulSet.- Single replica only.
min_instance_count = 1andmax_instance_count = 1. The PVC isReadWriteOnceand the embedded MongoDB is a single writer; a second replica cannot attach the disk. - Port 3000. Rocket.Chat listens on port 3000; the entrypoint sets
PORT=3000. - Health on
/api/info. Startup, liveness, and uptime checks target/api/info, which returns 200 only once the server and its replica set are ready. - ClusterIP by default. The Service is internal; expose it with a custom domain + Gateway (and optional IAP) to reach the UI from a browser.
- First run is a 4-step setup wizard. No admin is pre-seeded — the first browser visit walks through creating the admin account and organization.
2. Google Cloud Services & How to Explore Them
All commands assume you have run
gcloud container clusters get-credentials <cluster> --region <region> --project <project>
and that PROJECT, REGION, and NAMESPACE are set. The namespace and other
identifiers are reported in the deployment Outputs.
A. GKE Autopilot — the Rocket.Chat workload
Rocket.Chat runs as a StatefulSet pod scheduled on Autopilot, which bills for the
CPU/memory the pod requests. Because the MongoDB data set lives on a ReadWriteOnce
PVC and the app is a single writer, the workload is a single replica.
- Console: Kubernetes Engine → Workloads → select the Rocket.Chat StatefulSet to see the pod, PVC, and events.
- CLI:
kubectl get statefulset,pods,pvc,svc -n "$NAMESPACE"
kubectl logs -n "$NAMESPACE" statefulset/<service-name> --tail=100
kubectl describe pvc -n "$NAMESPACE"
See App_GKE for how Autopilot, StatefulSets, and PVCs are managed.
B. Embedded MongoDB (no Cloud SQL)
There is no Cloud SQL instance — database_type = "NONE". MongoDB runs inside the
Rocket.Chat pod as a single-node replica set (rs0) over 127.0.0.1:27017, with its
data on the StatefulSet PVC at /data/db. The entrypoint starts mongod, initiates
the replica set on first boot, waits for PRIMARY, and then launches Rocket.Chat.
# Confirm the embedded MongoDB reached PRIMARY on boot:
kubectl logs -n "$NAMESPACE" statefulset/<service-name> | grep -i "replica set rs0 is PRIMARY"
# Open a mongosh shell inside the pod (for maintenance / mongodump):
kubectl exec -it -n "$NAMESPACE" <pod> -- mongosh "mongodb://127.0.0.1:27017/rocketchat?replicaSet=rs0"
C. Persistent Disk PVC (MongoDB data)
The MongoDB data set lives on a StatefulSet PVC (standard-rwo Balanced PD by
default) mounted at /data/db. This block volume is what makes WiredTiger safe — do
not replace it with a gcsfuse mount.
- Console: Kubernetes Engine → Storage → Persistent Volume Claims; Compute Engine → Disks.
- CLI:
kubectl get pvc -n "$NAMESPACE"
gcloud compute disks list --project "$PROJECT" --filter="name~pvc"
See App_GKE for StorageClasses, PVC sizing, and CMEK.
D. Cloud Storage
A dedicated Cloud Storage bucket is provisioned for backups and uploaded-file storage alongside the PVC. The workload service account is granted access.
- Console: Cloud Storage → Buckets.
- CLI:
gcloud storage buckets list --project "$PROJECT"
gcloud storage ls gs://<storage-bucket>/ # bucket name is in the Outputs
E. Secret Manager
When enable_api_key = true, a random API token is generated and stored in Secret
Manager for external integrations, materialised into the namespace via the Secret
Store CSI driver. No other application secrets are created here — Rocket.Chat mints
and stores its own keys in MongoDB during first-run setup.
- Console: Security → Secret Manager.
- CLI:
gcloud secrets list --project "$PROJECT" --filter="name~api-key"
kubectl get secrets -n "$NAMESPACE"
F. Networking & ingress
By default the workload is a ClusterIP Service (internal). To reach the UI from a browser, enable a custom domain with a Google-managed certificate (Gateway API) and, optionally, IAP. A static IP can be reserved so the address survives redeploys.
- Console: Network services → Load balancing; VPC network → IP addresses.
- CLI:
kubectl get gateway,svc -n "$NAMESPACE"
gcloud compute addresses list --project "$PROJECT"
When you attach a custom domain, set ROOT_URL to that hostname. See App_GKE.
G. Cloud Logging & Monitoring
Pod stdout/stderr (both Rocket.Chat and the embedded mongod) flow to Cloud Logging;
GKE metrics flow to Cloud Monitoring. An optional uptime check targets /api/info.
- Console: Logging → Logs Explorer; Monitoring → Dashboards / Alerting.
- CLI:
gcloud logging read 'resource.type="k8s_container" AND resource.labels.namespace_name="'"$NAMESPACE"'"' \
--project "$PROJECT" --limit 50
3. Rocket.Chat Application Behaviour
- Embedded replica-set bootstrap. On every pod start the entrypoint starts
mongod --replSet rs0, initiates the replica set once (idempotent), waits until the node isPRIMARY, then exportsMONGO_URL/MONGO_OPLOG_URLand starts Rocket.Chat. The oplog URL enables Meteor's real-time updates. - First-run setup wizard. The first browser visit opens a 4-step wizard: (1) Admin Info — create the admin account (name, username, email, password); (2) Organization Info — name, type, industry, size, country; (3) Register Server — register with Rocket.Chat Cloud or keep the server standalone; (4) Complete. No admin is pre-seeded.
- Data persistence. All state (messages, users, settings) lives in the embedded
MongoDB on the PVC at
/data/db. Deleting the PVC deletes the workspace. ROOT_URLcorrectness. The entrypoint defaultsROOT_URLto the computed service URL. If you serve Rocket.Chat on a custom domain, setROOT_URL(viaenvironment_variables) to that URL, or links and OAuth redirects point at the wrong host.- Updates recreate the single pod. With one StatefulSet replica on a
RWOPVC, a rollout terminates the old pod before the new one attaches the disk — brief downtime is expected during version upgrades. - Health path. Startup and liveness probes target
/api/info. Allow a few minutes on first boot for the replica-set election and Rocket.Chat's initial migrations.
4. Configuration Variables
Variables are grouped exactly as they appear on the deployment platform. Only settings specific to or notable for Rocket.Chat are listed; every other input is inherited from App_GKE with its standard behaviour and defaults.
Group 1 — Project & Identity
| Variable | Default | Description |
|---|---|---|
project_id | (required) | Target Google Cloud project. |
region | us-central1 | Region for the workload and regional resources. |
Group 2 — Deployment Environment
| Variable | Default | Description |
|---|---|---|
tenant_deployment_id | demo | Short suffix that makes resource names unique per environment. Use gke to run alongside a Cloud Run variant. |
support_users | [] | Emails granted project access and monitoring alerts. |
resource_labels | {} | Labels applied to all resources for cost/ownership tracking. |
Group 3 — Application Identity
| Variable | Default | Description |
|---|---|---|
application_name | rocketchat | Base name for resources. Do not change after first deploy. |
application_display_name | RocketChat Vector Database | Human-readable name shown in the Console (default carries a legacy label; override to something like Rocket.Chat Team Chat). |
application_version | latest | Rocket.Chat image tag; latest pins the build to 6.12.1. Pin to a specific release in production. |
enable_api_key | false | Generate a random API token in Secret Manager for external integrations. |
Group 4 — Runtime & Scaling
| Variable | Default | Description |
|---|---|---|
deploy_application | true | Set false to provision infrastructure only. |
cpu_limit | 1000m | CPU per pod. |
memory_limit | 4Gi | Memory per pod; Rocket.Chat + embedded MongoDB share it. |
min_instance_count | 1 | Keep at 1 — GKE requires min ≥ 1 and the embedded MongoDB is single-writer. |
max_instance_count | 1 | Keep at 1 — the RWO PVC and single-writer MongoDB forbid a second replica. |
timeout_seconds | 300 | Maximum request duration (0–3600 seconds). |
enable_cloudsql_volume | false | Not applicable — Rocket.Chat has no SQL database. |
enable_image_mirroring | true | Mirror the Rocket.Chat image into Artifact Registry. |
Group 5 — Environment Variables & Secrets
| Variable | Default | Description |
|---|---|---|
environment_variables | {} | Extra non-secret settings. Do not set MONGO_URL/MONGO_OPLOG_URL/MONGO_DBPATH — the entrypoint owns them. Use OVERWRITE_SETTING_* to seed admin settings; set ROOT_URL for a custom domain. |
secret_environment_variables | {} | Map of env var → Secret Manager secret name. |
secret_propagation_delay | 30 | Seconds to wait after secret creation before proceeding. |
secret_rotation_period | 2592000s | Secret Manager rotation notification frequency. |
Group 6 — GKE Backend & Cluster
| Variable | Default | Description |
|---|---|---|
service_type | ClusterIP | How the Kubernetes Service is exposed; front with a Gateway for external access. |
workload_type | null | Auto-resolves to StatefulSet when stateful_pvc_enabled = true (required). |
session_affinity | None | Set ClientIP for stable WebSocket routing behind a load balancer. |
termination_grace_period_seconds | 60 | Seconds after SIGTERM before SIGKILL — allow MongoDB to flush and shut down cleanly. |
enable_network_segmentation | false | Create Kubernetes NetworkPolicy resources. |
Group 7 — StatefulSet
| Variable | Default | Description |
|---|---|---|
stateful_pvc_enabled | null | Set true (required). MongoDB's WiredTiger engine needs block storage — gcsfuse corrupts it. Auto-selects StatefulSet. |
stateful_pvc_size | 20Gi | Per-pod PVC size; size to hold the MongoDB data set. Cannot be decreased. |
stateful_pvc_mount_path | /data/db | Must equal MONGO_DBPATH so the PVC holds the MongoDB data set. |
stateful_pvc_storage_class | standard-rwo | standard-rwo (Balanced PD) or premium-rwo (higher IOPS for MongoDB). |
stateful_fs_group | 3000 | fsGroup GID for PVC write access (Rocket.Chat Helm chart default). |
Group 8 — Resource Quota
| Variable | Default | Description |
|---|---|---|
enable_resource_quota | false | Create a namespace ResourceQuota. |
quota_memory_requests / quota_memory_limits | "" | Binary units only (4Gi, 8192Mi) — bare integers are bytes and block scheduling. |
Group 9 — Reliability Policies
| Variable | Default | Description |
|---|---|---|
enable_pod_disruption_budget | true | Protect availability during node upgrades. |
pdb_min_available | 1 | Minimum pods available during voluntary disruptions. |
Group 10 — Observability & Health
| Variable | Default | Description |
|---|---|---|
startup_probe | HTTP /api/info 60s delay, 40 failures | Startup probe. Allow a few minutes on first boot. |
liveness_probe | HTTP /api/info 30s delay | Liveness probe. |
uptime_check_config | disabled | Optional Cloud Monitoring uptime check against /api/info. |
alert_policies | [] | Optional metric alert policies. |
Group 11 — Jobs & Scheduled Tasks
| Variable | Default | Description |
|---|---|---|
initialization_jobs | [] | No default init job — the embedded MongoDB is bootstrapped by the entrypoint. |
cron_jobs | [] | Kubernetes CronJobs (e.g., mongodump backups). |
additional_services | [] | Sidecar or helper services deployed alongside Rocket.Chat. |
Group 12 — CI/CD & Binary Authorization
Standard App_GKE Cloud Build / Cloud Deploy integration — see App_GKE.
Key inputs: enable_cicd_trigger, github_repository_url, github_token,
enable_cloud_deploy.
Group 13 — Filesystem (NFS)
| Variable | Default | Description |
|---|---|---|
enable_nfs | false | NFS off by default; MongoDB uses the block PVC. Enable only for uploaded-file sharing. |
nfs_mount_path | /mnt/nfs | Mount path inside the container. |
Group 14 — Cloud Storage & Artifact Registry
| Variable | Default | Description |
|---|---|---|
create_cloud_storage | true | Create the backup/file bucket. |
gcs_volumes | [] | GCS Fuse mounts — not for MongoDB data (use the PVC). |
manage_storage_kms_iam / enable_artifact_registry_cmek | false | CMEK options. |
max_images_to_retain / delete_untagged_images / image_retention_days | (set) | Artifact Registry cleanup policy. |
Group 17 — Backup & Maintenance
| Variable | Default | Description |
|---|---|---|
backup_schedule | 0 2 * * * | Automated backup cron (UTC). |
backup_retention_days | 7 | Retention; raise to 30–90 for production/compliance. |
enable_backup_import / backup_source / backup_uri / backup_format | restore options | Restore a MongoDB dump on deploy. |
Group 19 — Custom Domain, Static IP & Networking
| Variable | Default | Description |
|---|---|---|
enable_custom_domain | true | Provision Gateway for custom hostnames + managed certificate. Set ROOT_URL to match. |
application_domains | [] | Hostnames to serve. |
reserve_static_ip | true | Stable external IP across redeploys. |
Group 20 — Identity-Aware Proxy (IAP)
| Variable | Default | Description |
|---|---|---|
enable_iap | false | Require Google sign-in in front of Rocket.Chat (requires enable_custom_domain). |
iap_authorized_users / iap_authorized_groups | [] | Who may access. |
iap_oauth_client_id / iap_oauth_client_secret | "" | Required when IAP is enabled (sensitive). |
Group 21 — Cloud Armor
| Variable | Default | Description |
|---|---|---|
enable_cloud_armor | false | Attach a Cloud Armor (WAF) policy to the Ingress backend. |
admin_ip_ranges | [] | CIDRs allowed privileged access. |
enable_cdn | false | Enable Cloud CDN on the GKE Ingress backend. |
Group 22 — VPC Service Controls & Audit Logging
| Variable | Default | Description |
|---|---|---|
enable_vpc_sc | false | Enforce a VPC-SC perimeter (requires organization_id). |
vpc_cidr_ranges / vpc_sc_dry_run | (set) | Access level CIDRs / dry-run mode. |
enable_audit_logging | false | Detailed Cloud Audit Logs. |
5. Outputs
These values are returned on a successful deployment and are the quickest way to locate and explore the running resources.
| Output | Description |
|---|---|
service_name | Kubernetes Service name. |
namespace | Namespace the workload runs in. |
service_cluster_ip | In-cluster ClusterIP. |
stage_service_cluster_ips | Map of ClusterIPs for stage-specific services. |
service_external_ip | External IP (when a static IP is reserved). |
service_url | URL to reach the Rocket.Chat web UI. |
rocketchat_api_key_secret_id | Secret Manager secret ID for the API token (empty when enable_api_key = false). |
statefulset_name | Name of the StatefulSet. |
storage_buckets | Created Cloud Storage buckets. |
network_name / network_exists / regions | VPC network, presence, available regions. |
container_image / container_registry | Deployed image and Artifact Registry repo. |
monitoring_enabled / monitoring_notification_channels | Monitoring status and channels. |
initialization_jobs | Names of any setup jobs. |
deployment_id / tenant_id / resource_prefix | Naming identifiers. |
project_id / project_number | Project identifiers. |
cicd_enabled / cicd_configuration | CI/CD status and details (repo, trigger, registry). |
github_repository_url / github_repository_owner / github_repository_name | CI/CD GitHub details. |
artifact_registry_repository / cloudbuild_trigger_name / cloudbuild_trigger_id | Registry and build trigger. |
kubernetes_ready | Whether the cluster/workload is ready. |
vpc_sc_enabled / vpc_sc_perimeter_name / vpc_sc_dry_run_mode | VPC-SC status. |
audit_logging_enabled / artifact_registry_cmek_enabled | Audit logging and CMEK status. |
6. Configuration Pitfalls & Sensible Defaults
Risk: Critical (data loss / outage / security) — High (service degraded) — Medium (cost or partial degradation) — Low (minor).
Inherited plan-time validation. This module passes its configuration through the App_GKE foundation engine, which validates values and combinations at plan time —
workload_type = "Deployment"withstateful_pvc_enabled = true, IAP with no authorized identities, non-binary quota units, an out-of-rangebackup_retention_days. Invalid configuration fails the plan with a clear, named error before any resource is created.
| Setting | Sensible value | Risk | Consequence if wrong |
|---|---|---|---|
stateful_pvc_enabled | true | Critical | On gcsfuse (the default when unset) MongoDB's WiredTiger data set corrupts — the workspace is unrecoverable. |
stateful_pvc_mount_path | /data/db | Critical | Any other path means the PVC does not hold the MongoDB data set; data lives on the ephemeral pod filesystem and is lost on restart. |
max_instance_count | 1 | Critical | The RWO PVC and single-writer MongoDB cannot support a second replica; the surge pod fails to attach the disk and corrupts state if forced. |
PVC / /data/db (auto) | Never delete | Critical | Deleting the PVC deletes the entire workspace. |
workload_type | leave null | High | Setting Deployment with stateful_pvc_enabled = true fails at plan time; leave it unset to auto-resolve to StatefulSet. |
ROOT_URL (custom domain) | Match the served hostname | High | A mismatched ROOT_URL breaks invite links, file URLs, and OAuth callbacks. |
memory_limit | 4Gi (default) | High | Rocket.Chat plus MongoDB in one pod OOM below ~2 GiB under real load. |
quota_memory_requests / _limits | binary units (4Gi, 8192Mi) | Critical | Bare integers are bytes and block all pod scheduling in the namespace. |
stateful_pvc_storage_class | standard-rwo (or premium-rwo) | Medium | premium-rwo gives MongoDB more IOPS for busy workspaces at higher cost. |
enable_pod_disruption_budget | true | Medium | Disabling allows GKE to evict the pod during maintenance with no protection. |
backup_retention_days | 7 (raise for prod) | Medium | Too short for compliance retention. |
For the foundation behaviour referenced throughout — IAM and Workload Identity, autoscaling, ingress and certificates, CI/CD, Cloud Armor, IAP, Binary Authorization, VPC-SC, backups, and image mirroring — see App_GKE. Rocket.Chat-specific application configuration shared with the Cloud Run variant is described in RocketChat_Common.
