Ghost GKE Module — Configuration Guide

This guide describes every configuration variable available in the Ghost_GKE module. Ghost_GKE is a wrapper module that combines the generic App_GKE infrastructure module with the Ghost_Common shared application configuration to deploy the Ghost publishing platform on Google Kubernetes Engine (GKE) Autopilot.

Most configuration options in Ghost GKE map directly to the same options in App GKE. Where a variable is identical in behaviour, this guide references the App GKE guide rather than repeating the same documentation. Only the variables and defaults that are specific to Ghost are described in full here.

Note: Variables marked as platform-managed are set and maintained by the platform. You do not normally need to change them.

Standard Configuration Reference

The following configuration areas are provided by the underlying App_GKE module. Consult the linked sections of the App_GKE Configuration Guide for full documentation.

Configuration Area	App GKE.md Section	Ghost-Specific Notes
Module Metadata & Configuration	§1 Module Overview	Ghost-specific `module_description`, `module_documentation`, and `module_services` defaults are pre-set.
Project & Identity	§2 IAM & Access Control	Identical.
Application Identity	§3.A Compute (GKE Autopilot)	Ghost-specific defaults; see Group 2: Application Identity.
Runtime & Scaling	§3.A Compute (GKE Autopilot)	Ghost-specific defaults for `container_port`, `cpu_limit`, `memory_limit`, and `min_instance_count`; see Group 3: Runtime & Scaling.
Environment Variables & Secrets	§3 Core Service Configuration	`database__client = "mysql"` is injected automatically. SMTP defaults pre-populated; see Group 5: Environment Variables & Secrets.
Networking & Network Policies	§3.D Networking & Network Policies	Identical.
Initialization Jobs & CronJobs	§3.E Initialization Jobs & CronJobs	`db-init` MySQL job supplied automatically by `Ghost Common`; see Group 8: Jobs & Scheduled Tasks.
Additional Services	§3.F Additional Services	Identical.
Storage — NFS	§3.C Storage (NFS / GCS / GCS Fuse)	`enable_nfs` defaults to `true`; see Group 9: Storage & Filesystem — NFS.
Storage — GCS	§3.C Storage (NFS / GCS / GCS Fuse)	`ghost-content` GCS bucket provisioned automatically; see Group 10: Storage & Filesystem — GCS.
Database Configuration	§3.B Database (Cloud SQL)	MySQL 8.0 required; see Group 11: Database Configuration.
Backup Schedule & Retention	§3.B Database (Cloud SQL)	Identical.
Custom SQL Scripts	§3.E Initialization Jobs & CronJobs	Identical.
Observability & Health Checks	§3.A Compute (GKE Autopilot)	Two-path probe system; see Group 13: Observability & Health.
Cloud Armor WAF	§4.A Cloud Armor WAF	Identical.
Identity-Aware Proxy	§4.B Identity-Aware Proxy (IAP)	Identical.
Binary Authorization	§4.C Binary Authorization	Identical.
VPC Service Controls	§4.D VPC Service Controls	Identical.
Secrets Store CSI Driver	§4.E Secrets Store CSI Driver	Always enabled — no configuration required.
Traffic & Ingress	§5 Traffic & Ingress	Identical.
CDN	§5.B CDN	Identical.
Custom Domain & Static IP	§5.C Static IP Reservation	Ghost URL must be configured to match; see Group 16: Custom Domain & Static IP.
Cloud Build Triggers	§6.A Cloud Build Triggers	Identical.
Cloud Deploy Pipeline	§6.B Cloud Deploy Pipeline	Identical.
Image Mirroring	§6.C Image Mirroring	Identical.
Pod Disruption Budgets	§7.A Pod Disruption Budgets	Identical.
Topology Spread Constraints	§7.B Topology Spread Constraints	Identical.
Resource Quotas	§7.C Resource Quotas	Identical.
Auto Password Rotation	§7.D Auto Password Rotation	See Group 11: Database Configuration.
Redis Cache	§8.A Redis / Memorystore	`enable_redis` defaults to `true`; see Group 15: Redis Cache.
Backup Import	§8.B Backup Import	Exposes both `backup_uri` (full GCS URI or Drive ID) and `backup_file` (filename in module backup bucket); see Group 6: Backup & Maintenance.
Service Mesh (ASM)	§8.C Service Mesh (ASM via Fleet)	Identical.
Multi-Cluster Services	§8.D Multi-Cluster Services (MCS)	Identical.

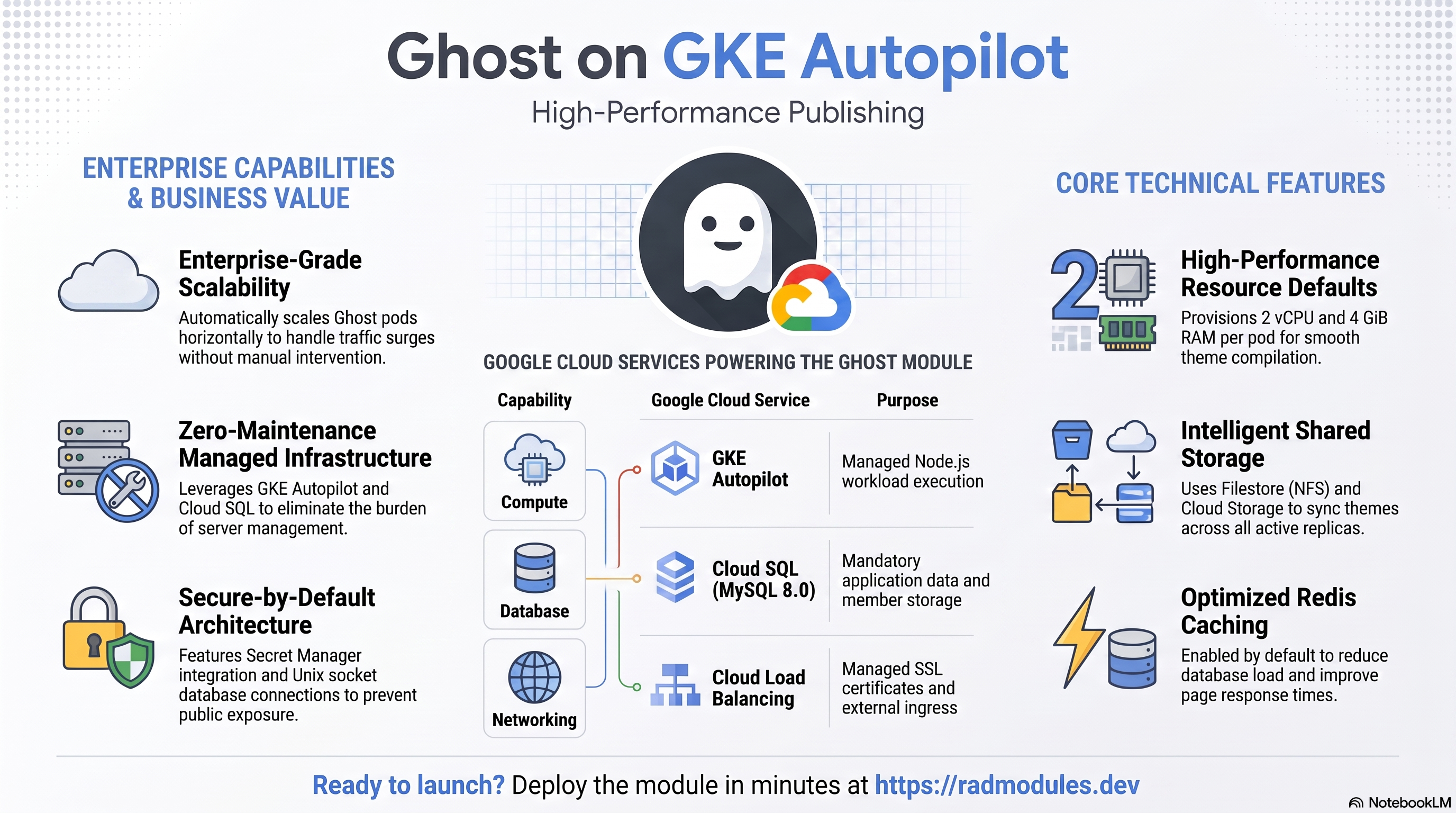

How Ghost GKE Relates to App GKE

Ghost GKE passes all variables through to App GKE and adds a Ghost Common sub-module that supplies Ghost-specific defaults and application configuration. The main effects are:

MySQL 8.0 is required. Ghost 6.x requires MySQL 8.0 and will not work with PostgreSQL. The database_type default is overridden to "MYSQL_8_0".
database__client = "mysql" is injected automatically. Ghost 6.x will silently fall back to SQLite without this environment variable, even when all other database connection variables are present. The module injects it automatically — you do not need to set it yourself.
A ghost-content GCS bucket is provisioned automatically. Ghost Common provides a ghost-content bucket definition that is merged into the module's bucket list. You do not need to define it in storage_buckets.
A db-init job runs on first deployment. Ghost Common supplies a default db-init Kubernetes Job using a mysql:8.0-debian image that initialises the Ghost MySQL schema. Override initialization_jobs to replace it with a custom job.
Resource defaults are sized for Ghost. The default cpu_limit (2 vCPU) and memory_limit (4 Gi) are higher than the App GKE defaults to match Ghost 6.x's resource requirements.
Redis caching is enabled by default. Ghost uses Redis for page caching. See Group 15: Redis Cache and App_GKE §8.A for details.
Health probes are tuned for Ghost's slow startup. Ghost runs database migrations and compiles themes on first boot. The default startup probe allows 90 seconds of initial delay before checking.

Group 0: Module Metadata & Configuration

The behaviour of these variables is identical to App_GKE. See App_GKE §1 for a full description.

Ghost-specific defaults:

Variable	Ghost GKE Default	Notes
`module_description`	`"Ghost: Deploy Ghost publishing platform on GKE Autopilot…"`	Pre-populated with Ghost-specific description.
`module_documentation`	`"https://docs.radmodules.dev/docs/modules/Ghost_GKE"`	Points to the Ghost GKE documentation page.
`module_services`	Includes Ghost-relevant services	Adds `Cloud SQL (MySQL 8.0)` and `SMTP Integration` to the standard list.

Group 1: Project & Identity

Identical to App_GKE. See App_GKE §2.

Ghost GKE-specific addition in this group:

Variable	Default	Description
`deployment_region`	`"us-central1"`	GCP region for resource deployment. Used as a fallback when network discovery cannot determine the region from existing VPC subnets. Also used as the storage bucket location for the `ghost-content` bucket provisioned by `Ghost Common`.

Group 2: Application Identity

These variables behave identically to App_GKE. See App_GKE §3.A for descriptions.

Ghost-specific defaults:

Variable	Ghost GKE Default	App GKE Default	Notes
`application_name`	`"ghost"`	`"gkeapp"`	Used as the base name for all GCP and Kubernetes resources. Do not change after deployment.
`application_display_name`	`"Ghost Blog"`	`"App GKE Application"`	Shown in the platform UI and dashboards. Can be changed freely.
`display_name`	`"Ghost Publishing Platform"`	(not in App GKE)	Ghost GKE-specific alias for a human-readable UI name. Passed through to `Ghost Common`.
`application_description`	`"Ghost Publishing Platform on GKE Autopilot"`	`"App GKE Custom Application…"`	Descriptive label. Can be changed freely.
`description`	`"Ghost Publishing Platform on GKE Autopilot"`	(not in App GKE)	Ghost GKE-specific alias for the deployment description. Passed to `Ghost Common` as the `db-init` job description.
`application_version`	`"6.14.0"`	`"1.0.0"`	The Ghost release version to build and deploy. Incrementing this value triggers a new Cloud Build run.

Group 3: Runtime & Scaling

Most variables behave identically to App_GKE. See App_GKE Group 3.

Ghost-specific defaults and behaviour:

Variable	Ghost GKE Default	App GKE Default	Notes
`container_port`	`2368`	`8080`	Ghost's native HTTP port. Do not change unless your custom Dockerfile binds Ghost to a different port.
`max_instance_count`	`5` [fixed in main.tf]	`3`	Ghost is more resource-intensive than a generic application; the higher ceiling accommodates traffic spikes during newsletter sends or content publication. The variable default is `5`, and `main.tf` also hardcodes `max_instance_count = 5` in the locals merge — changing the variable has no effect without editing `main.tf` directly.
`cpu_limit`	`"2000m"`	`"1000m"`	Ghost 6.x requires a minimum of 1 vCPU; 2 vCPU (2000m) is recommended for production to handle concurrent membership and admin requests without degradation.
`memory_limit`	`"4Gi"`	`"512Mi"`	Ghost 6.x uses significantly more memory than the base default. 4 Gi is recommended for production; do not set below 512 Mi or Ghost will OOMKill during theme compilation.
`container_image_source`	`"custom"`	`"custom"`	`Ghost Common` supplies a Dockerfile-based build by default so that Ghost can be customised with plugins and themes before deployment. Set to `"prebuilt"` to deploy the official Docker Hub Ghost image directly.
`enable_cloudsql_volume`	`true`	`true`	The Cloud SQL Auth Proxy sidecar is required for Ghost to connect to Cloud SQL via a Unix socket. Only disable if connecting to Cloud SQL directly over a private TCP connection.

min_instance_count: The variable default is 1 (always at least one pod running — no scale-to-zero on GKE). Like max_instance_count, the value 1 is also hardcoded in the main.tf locals merge, so changing the variable via tfvars has no effect without editing main.tf directly.

container_resources: The variable default is { cpu_limit = "1000m", memory_limit = "512Mi" } (the App GKE base default). However, Ghost Common produces a config with cpu_limit = var.cpu_limit (default "2000m") and memory_limit = var.memory_limit (default "4Gi"), which are merged into container_resources in the main.tf locals block. This means the effective container resources for Ghost are 2 vCPU / 4 Gi by default, regardless of the container_resources variable default. To override both the cpu_limit / memory_limit shorthand variables and the container_resources object for consistency, set cpu_limit, memory_limit, and container_resources together.

The remaining runtime variables (deploy_application, container_image, container_build_config, enable_image_mirroring, enable_vertical_pod_autoscaling, container_protocol, container_resources, timeout_seconds, cloudsql_volume_mount_path, service_annotations, service_labels) behave as described in App_GKE Group 3.

Group 4: Access & Networking

These variables behave identically to App_GKE. See App_GKE §4, App_GKE §5, and App_GKE §3.D.

Note: The ingress_settings and vpc_egress_setting variables appear in Ghost GKE's variable definitions but are not passed through to App GKE. Setting these variables has no effect on the deployed infrastructure in the current implementation.

The following networking variables are available in Ghost GKE:

Variable	Default	Description
`enable_iap`	`false`	Enables Identity-Aware Proxy authentication on the load balancer.
`iap_authorized_users`	`[]`	Individual users or service accounts granted IAP access.
`iap_authorized_groups`	`[]`	Google Groups granted IAP access.
`iap_oauth_client_id`	`""`	OAuth client ID for IAP configuration.
`iap_oauth_client_secret`	`""`	OAuth client secret for IAP configuration.
`iap_support_email`	`""`	Support email shown on the Google OAuth consent screen.
`enable_custom_domain`	`false`	Configures Ingress/Gateway for custom domain routing with managed SSL certificates.
`application_domains`	`[]`	Custom domain names (e.g. `["ghost.example.com"]`).
`reserve_static_ip`	`true`	Reserves a Global Static IP for the load balancer.
`static_ip_name`	`""`	Name for the reserved IP; auto-generated if blank.
`network_tags`	`["nfsserver"]`	Firewall tags applied to GKE cluster nodes.
`enable_cloud_armor`	`false`	Enables a Cloud Armor WAF security policy.
`admin_ip_ranges`	`[]`	Admin CIDR ranges permitted through Cloud Armor.
`cloud_armor_policy_name`	`"default-waf-policy"`	Name of the Cloud Armor security policy to attach.
`enable_vpc_sc`	`false`	Enables VPC Service Controls perimeter enforcement.
`ingress_settings`	`"all"`	Controls which traffic sources may reach the application (`all`, `internal`, `internal-and-cloud-load-balancing`).
`vpc_egress_setting`	`"PRIVATE_RANGES_ONLY"`	Controls whether only private-range traffic or all egress is routed through the VPC.

Group 5: Environment Variables & Secrets

These variables behave identically to App_GKE. See App_GKE §3.

Ghost-specific defaults:

Ghost pre-populates environment_variables with SMTP settings so that Ghost's email delivery (newsletter sends, member sign-up confirmations, password resets) can be configured without additional setup:

Variable	Default
`SMTP_HOST`	`""` (set to your SMTP server hostname)
`SMTP_PORT`	`"25"`
`SMTP_USER`	`""`
`SMTP_PASSWORD`	`""`
`SMTP_SSL`	`"false"`
`EMAIL_FROM`	`"ghost@example.com"`

The database__client = "mysql" variable is injected automatically by the module. Do not set it manually in environment_variables — the module handles this to ensure Ghost 6.x connects to MySQL rather than falling back to SQLite.

Override environment_variables with a complete map to replace the SMTP defaults and add any additional Ghost configuration variables. To add variables without overriding the SMTP defaults, merge them in your Terraform configuration:

environment_variables = merge(
  {
    SMTP_HOST     = "smtp.mailgun.org"
    SMTP_PORT     = "587"
    SMTP_USER     = "postmaster@mg.example.com"
    SMTP_PASSWORD = "your-smtp-password"
    SMTP_SSL      = "true"
    EMAIL_FROM    = "noreply@example.com"
  },
  {
    NODE_ENV = "production"
  }
)

The remaining secrets variables (secret_environment_variables, secret_rotation_period, secret_propagation_delay, manage_storage_kms_iam) behave as described in App_GKE §3.

Group 6: Backup & Maintenance

These variables behave identically to App_GKE. See App_GKE §3.B.

Ghost-specific defaults:

Variable	Default	Notes
`backup_schedule`	`"0 2 * * *"`	Daily at 02:00 UTC. Adjust to match your Recovery Point Objective and traffic patterns.
`backup_retention_days`	`7`	7-day retention. Increase for production deployments (30–90 days recommended).

Backup Import — Ghost GKE also supports importing an existing backup on first deployment:

Variable	Default	Description
`enable_backup_import`	`false`	When `true`, runs a one-time import job during deployment to restore the backup specified by `backup_uri`. Configure `backup_source`, `backup_uri`, and `backup_format` before enabling.
`backup_source`	`"gcs"`	Source system for the backup file. `"gcs"` imports from a Cloud Storage URI; `"gdrive"` imports from a Google Drive file ID.
`backup_uri`	`""`	Full GCS URI (`"gs://my-bucket/backups/ghost.sql"`) or Google Drive file ID. Mapped to `backup_file` in `App GKE`.
`backup_file`	`"backup.sql"`	Filename of a backup stored in the module's automatically created backups GCS bucket. An alternative to `backup_uri` for backups already placed in the module-managed bucket.
`backup_format`	`"sql"`	Format of the backup file. Supported values: `sql`, `tar`, `gz`, `tgz`, `tar.gz`, `zip`, `auto`.

Group 7: CI/CD & GitHub Integration

Identical to App_GKE. See App_GKE §6.

The following CI/CD variables are available: enable_cicd_trigger, github_repository_url, github_token, github_app_installation_id, cicd_trigger_config, enable_cloud_deploy, cloud_deploy_stages, enable_binary_authorization, binauthz_evaluation_mode (default "ALWAYS_ALLOW"; options: ALWAYS_ALLOW, REQUIRE_ATTESTATION, ALWAYS_DENY — controls enforcement mode when enable_binary_authorization is true).

Group 8: Jobs & Scheduled Tasks

These variables behave as described in App_GKE §3.E, with one important Ghost-specific behaviour.

Ghost default db-init job:

When initialization_jobs is left as the default (empty list []), Ghost Common automatically supplies a db-init job:

Field	Value
Job name	`db-init`
Image	`mysql:8.0-debian`
Purpose	Initialises the Ghost MySQL database schema and user
Execute on every apply	`true`
CPU / Memory	`1000m` / `512Mi`

Override initialization_jobs with a non-empty list to replace this default with your own jobs. Each custom job must specify at least one of command, args, or script_path.

CronJobs and Additional Services:

The cron_jobs and additional_services variables are available and behave identically to App_GKE. See App_GKE §3.E for full documentation.

Note: The cron_jobs schema in Ghost GKE uses Kubernetes CronJob fields — restart_policy, concurrency_policy, failed_jobs_history_limit, successful_jobs_history_limit, starting_deadline_seconds, suspend — rather than the Cloud Run–style fields (parallelism, paused, max_retries, task_count) used in Ghost CloudRun. The secret_env_vars field is also not available in GKE cron jobs (secrets are managed via secret_environment_variables at the module level).

Group 9: Storage & Filesystem — NFS

These variables behave identically to App_GKE. See App_GKE §3.C.

Ghost-specific defaults:

Variable	Default	Notes
`enable_nfs`	`true`	NFS storage is enabled by default. Ghost stores uploaded images, themes, and other content files on the shared NFS volume so that all pod replicas access the same filesystem. Disable only if using GCS Fuse exclusively for content storage.
`nfs_mount_path`	`"/mnt/nfs"`	The path where the NFS volume is mounted inside the Ghost container. Configure your Ghost Dockerfile to use this path for the `content` directory.

Group 10: Storage & Filesystem — GCS

These variables behave identically to App_GKE. See App_GKE Group 9.

Ghost-specific defaults:

Ghost Common automatically provisions a ghost-content GCS bucket in addition to any buckets defined in storage_buckets. This bucket is used for Ghost media storage via GCS Fuse. You do not need to define it manually.

Bucket	`name_suffix`	Purpose
Auto-provisioned	`ghost-content`	Ghost media storage (images, files, themes) via GCS Fuse CSI Driver

The create_cloud_storage, storage_buckets, and gcs_volumes variables behave as described in App_GKE Group 9.

Group 11: Database Configuration

These variables behave identically to App_GKE. See App_GKE §3.B.

Ghost-specific defaults and restrictions:

Variable	Ghost GKE Default	App GKE Default	Notes
`database_type`	`"MYSQL_8_0"`	`"POSTGRES"`	Ghost 6.x requires MySQL 8.0. Do not change this to a PostgreSQL or SQL Server variant — Ghost will not start.
`application_database_name`	`"gkeappdb"`	`"gkeappdb"`	Override to `"ghost"` or a meaningful name such as `"ghost_prod"`.
`application_database_user`	`"gkeappuser"`	`"gkeappuser"`	Override to `"ghost"` or a meaningful name such as `"ghost_svc"`.
`db_name`	`"ghost"`	(not in App GKE)	Shorthand variable for the database name passed to Ghost Common. Controls the `db_name` field in the `application_config` used by Ghost (distinct from `application_database_name`, which controls what App GKE provisions in Cloud SQL).
`db_user`	`"ghost"`	(not in App GKE)	Shorthand variable for the database user passed to Ghost Common. Controls the `db_user` field in the Ghost `application_config` (distinct from `application_database_user`).

Important: Ghost 6.x will silently use SQLite instead of MySQL if the database__client variable is not set. This module injects database__client = "mysql" automatically. Do not remove or override it.

Note: Unlike Ghost CloudRun (where database_type is fixed inside Ghost Common and not user-configurable), Ghost GKE exposes database_type as a user-configurable variable with a default of "MYSQL_8_0". The variable can technically be changed, but doing so will break Ghost — the application only supports MySQL 8.0.

Cloud SQL instance discovery:

Variable	Default	Description
`sql_instance_name`	`""`	Name of an existing Cloud SQL instance to use. Leave empty to auto-discover a Services GCP-managed instance or create an inline instance.
`sql_instance_base_name`	`"app-sql"`	Base name for the inline Cloud SQL instance when no existing instance is found. Deployment ID is appended.

Automatic password rotation is also supported:

Variable	Default	Description
`enable_auto_password_rotation`	`false`	Deploys an automated database password rotation job. When `true`, the database password is rotated on the schedule defined by `secret_rotation_period` and GKE pods are restarted to pick up the new credential.
`rotation_propagation_delay_sec`	`90`	Seconds to wait after rotation before restarting pods, to allow Secret Manager replication to complete.

Group 12: Custom SQL Scripts

Identical to App_GKE. See App_GKE §3.E.

Group 13: Observability & Health

These variables behave identically to App_GKE. See App_GKE §3.A.

Ghost-specific defaults:

Ghost 6.x performs database migrations and theme compilation during startup, which means the first boot after a fresh deployment takes significantly longer than subsequent boots. The health probe defaults are tuned to accommodate this.

Health probe routing

Ghost GKE exposes two parallel sets of probe variables that configure Kubernetes probes via different routing paths:

Variable set	Passed to	Configures
`startup_probe`, `liveness_probe`	`Ghost Common` sub-module	The application container's Kubernetes probe spec (`initialDelaySeconds`, `path`, `failureThreshold`, etc.)
`startup_probe_config`, `health_check_config`	`App GKE` directly	The App GKE-standard probe configuration used for load balancer health checks and GKE infrastructure probes

These are parallel paths, not aliases. Changing startup_probe does not affect startup_probe_config, and vice versa.

Important: startup_probe_config and health_check_config both default to path = "/healthz". Ghost does not expose a /healthz endpoint — its root path (/) returns HTTP 200 when healthy. If you rely on the App GKE-standard probes, override both variables to use path = "/" to match Ghost's actual health endpoint.

Startup probe (startup_probe → Ghost Common):

Field	Ghost Default	App GKE Default	Notes
`path`	`"/"`	`"/healthz"`	Ghost does not expose a dedicated `/healthz` endpoint; the root path is used instead.
`initial_delay_seconds`	`90`	`10`	Allows Ghost 90 seconds before the first probe attempt, giving it time to run migrations.
`failure_threshold`	`10`	`3`	Ghost may take up to 100 seconds on first boot; `10 × period_seconds (10s) = 100s` total allowance.

Liveness probe (liveness_probe → Ghost Common):

Field	Ghost Default	App GKE Default	Notes
`path`	`"/"`	`"/healthz"`	Same as startup probe — Ghost's root path returns HTTP 200 when healthy.
`initial_delay_seconds`	`60`	`15`	Gives Ghost additional time to stabilise before liveness checks begin.

App GKE-standard probes (startup_probe_config, health_check_config → App GKE):

Variable	Ghost Default	Notes
`startup_probe_config`	`{ enabled = true, path = "/healthz" }`	Override `path` to `"/"` for Ghost. Ghost's root path is the correct health endpoint.
`health_check_config`	`{ enabled = true, path = "/healthz" }`	Override `path` to `"/"` for Ghost. Same reason as above.

uptime_check_config: In Ghost GKE the default is { enabled = false, path = "/" } — uptime checks are disabled by default (unlike Ghost CloudRun where they are enabled). Enable explicitly for production monitoring.

The uptime_check_config and alert_policies variables behave as described in App_GKE §3.A.

Group 14: Reliability Policies

Identical to App_GKE. See App_GKE §7.

Available variables: enable_pod_disruption_budget, pdb_min_available, enable_topology_spread, topology_spread_strict.

Group 8: Resource Quota

Identical to App_GKE. See App_GKE §7.C.

Available variables: enable_resource_quota, quota_cpu_requests, quota_cpu_limits, quota_memory_requests, quota_memory_limits, quota_max_pods (default ""; max pods in namespace), quota_max_services (default ""; max services in namespace), quota_max_pvcs (default ""; max PVCs in namespace).

Group 16: Custom Domain & Static IP

Identical to App_GKE. See App_GKE §5.

Ghost URL configuration: Ghost must know its public URL at startup. When using a custom domain, configure the url Ghost setting (typically via an environment variable or the Ghost config.json) to match the domain in application_domains. Ghost uses this URL to generate links in newsletters and member emails — incorrect URL configuration will result in broken links.

Group 17: GKE Backend Configuration

Identical to App_GKE. See App_GKE §3.A.

Available variables: gke_cluster_name, namespace_name, workload_type, service_type, session_affinity, enable_multi_cluster_service, configure_service_mesh, enable_network_segmentation, termination_grace_period_seconds, deployment_timeout, gke_cluster_selection_mode (default "primary"; options: explicit, round-robin, primary), network_name (default ""; auto-discovered when empty), prereq_gke_subnet_cidr (default "10.201.0.0/24"; CIDR for inline GKE subnet creation).

Session affinity note: session_affinity defaults to "ClientIP" in Ghost GKE. This is important for Ghost: without session affinity, the Ghost admin panel and membership portal can experience intermittent authentication failures when requests are routed to different pod replicas that do not share session state.

Group 18: Stateful Workloads

Identical to App_GKE. See the StatefulSet configuration described in App_GKE §3.A (workload_type = "StatefulSet") and the associated StatefulSet variables.

Available variables: stateful_pvc_enabled, stateful_pvc_size, stateful_pvc_mount_path, stateful_pvc_storage_class, stateful_headless_service, stateful_pod_management_policy, stateful_update_strategy.

Group 15: Redis Cache

These variables configure Ghost's Redis integration. The underlying Redis infrastructure support is provided by App_GKE (see App_GKE §8.A); the variables below are Ghost-specific overrides and additions. Ghost uses Redis for page caching and session caching, which significantly reduces database load and improves page delivery speed for high-traffic sites.

Note: In Ghost GKE, the Redis variables are in group 15 (not group 21 as in Ghost CloudRun).

Variable	Default	Options / Format	Description & Implications
`enable_redis`	`true`	`true` / `false`	Enables Redis as Ghost's caching backend. When `true` and `redis_host` is blank, the module defaults to using the NFS server IP as the Redis host. Recommended for all production deployments. Disable only in development or testing environments where the additional infrastructure is not required. When disabled, Ghost serves all pages without a cache, which increases database query load and raises page load times under concurrent traffic.
`redis_host`	`""` (defaults to NFS server IP)	Hostname or IP address	The hostname or IP address of the Redis server Ghost connects to for caching. Leave blank to use the automatically discovered NFS server IP (which typically co-hosts a Redis process in the platform's default configuration). Override with an explicit IP or hostname when using a dedicated Redis instance — such as a Google Cloud Memorystore for Redis instance — for higher reliability and throughput. Example: `"10.128.0.10"`, `"redis.example.internal"`.
`redis_port`	`"6379"`	Port number string	The TCP port on which the Redis server is listening. The default `6379` is the standard Redis port. Change only if your Redis instance is configured to listen on a non-standard port.
`redis_auth`	`""`	String (sensitive)	The authentication password for the Redis server. Leave empty if the Redis instance does not require authentication (typical for the platform's default NFS co-hosted Redis). For production deployments using Google Cloud Memorystore with AUTH enabled, set this to the instance's AUTH string. This value is treated as sensitive and is never stored in Terraform state in plaintext.

Validating Group 15 Settings

Google Cloud Console:

Memorystore instance (if used): Navigate to Memorystore → Redis to confirm the instance exists, its IP address, port, and AUTH status.
Ghost cache status: Once deployed, navigate to the Ghost Admin panel (Settings → Labs) or check the Ghost container logs for cache connection confirmation messages.

gcloud CLI / kubectl:

# List Memorystore Redis instances in the project (if using Memorystore)
gcloud redis instances list \
  --region=REGION \
  --project=PROJECT_ID \
  --format="table(name,host,port,state,memorySizeGb,authEnabled)"

# Confirm the Redis environment variables are set in the Ghost pod
kubectl exec -n NAMESPACE POD_NAME -- env | grep -i redis

# Test Redis connectivity from inside the Ghost pod
kubectl exec -n NAMESPACE POD_NAME -- \
  nc -zv REDIS_HOST 6379

Module Outputs

Ghost GKE exposes the following Terraform outputs:

Output	Description
`service_name`	Name of the Kubernetes service
`service_url`	Service URL
`service_external_ip`	External IP address of the load balancer
`project_id`	GCP project ID
`deployment_id`	Deployment ID suffix
`namespace`	Kubernetes namespace
`database_instance_name`	Name of the Cloud SQL instance
`database_name`	Name of the application database
`database_user`	Name of the application database user
`database_password_secret`	Secret Manager secret name for the database password
`storage_buckets`	Created GCS storage buckets
`nfs_server_ip`	NFS server internal IP (sensitive)
`nfs_mount_path`	NFS mount path inside containers
`container_image`	Container image used for the deployment
`cicd_enabled`	Whether the CI/CD pipeline is enabled
`github_repository_url`	GitHub repository URL connected for CI/CD
`kubernetes_ready`	`true` when the GKE cluster endpoint is reachable and all Kubernetes workload resources are deployed. `false` on the first apply of a new inline cluster — the cluster is created but the endpoint is not yet readable, so Kubernetes resources are skipped. The CI/CD pipeline must re-run apply to complete the deployment.

Configuration Pitfalls & Sensible Defaults

Risk levels: Critical (data loss, full outage, security breach) — High (service unavailable or significant degradation) — Medium (degraded function or increased cost) — Low (minor impact).

Variable	Sensible Default	Risk	Consequence of Incorrect Value
`project_id`	(required)	Critical	No default — deployment fails immediately.
`database_type`	`"MYSQL_8_0"`	Critical	Ghost requires MySQL. Setting to `POSTGRES` or `NONE` causes Ghost to fail at startup with a database driver error. The GKE module wires MySQL credentials automatically; mismatched database type breaks all credential injection.
`enable_redis`	`true`	High	Redis is on by default. When `redis_host = ""` the module falls back to the NFS server IP. If `enable_nfs = false` and `redis_host` is also empty, Ghost cannot connect to its caching layer and will crash at startup.
`redis_host`	`""`	High	Auto-resolves to NFS IP. If NFS is disabled and no explicit host is given, Ghost caching fails at boot.
`enable_nfs`	`true`	Critical	Ghost content (images, themes, uploaded files) must be stored on a shared volume. Without NFS, the `/var/lib/ghost/content` directory is isolated per pod — content uploaded to one pod is invisible to others, and all content is lost on pod restart.
`container_image_source`	`"custom"`	High	Ghost requires a custom-built image to wire Cloud SQL socket paths and NFS content mounts. Using the upstream Ghost Docker Hub image with `"prebuilt"` will fail to connect to Cloud SQL via Unix socket.
`container_port`	`2368`	Critical	Ghost listens on `2368`. Changing this without matching the container's bound port causes all health probes to fail.
`container_resources.memory_limit`	`"4Gi"` (via `memory_limit`)	High	The GKE `container_resources` default is only `512Mi`. Ghost 6.x requires at least `1Gi` at rest; active newsletter sends require 2–4Gi. Under-provisioning causes Node.js OOM crashes.
`session_affinity`	`"ClientIP"`	High	Ghost uses server-side sessions for the admin panel. Without session affinity, admin users are logged out on every request that routes to a different pod. Keep `"ClientIP"` for any multi-replica Ghost GKE deployment.
`db_name`	`"ghost"`	Critical	Immutable after deployment — changing this recreates the database and destroys all Ghost content.
`db_user`	`"ghost"`	Critical	Immutable after deployment — changing this recreates the user, invalidates credentials, and breaks Ghost's database connection.
`environment_variables` (SMTP)	`{ SMTP_HOST = "", ... }`	High	Ghost relies on SMTP for member emails and password resets. An empty `SMTP_HOST` disables all outbound email. Configure a valid SMTP provider before inviting members.
`min_instance_count`	`1`	Medium	`0` allows scale-to-zero, causing cold starts during which Ghost runs database migrations. First requests after scale-up time out. Set to `1` for publications with consistent traffic.
`workload_type`	`null`	Medium	Setting `stateful_pvc_enabled = true` automatically selects `StatefulSet`. Do not set `workload_type = "Deployment"` alongside `stateful_pvc_enabled = true` — this fails at plan time.
`stateful_pvc_size`	`"10Gi"`	Medium	Ghost content directories can grow quickly with media uploads. `10Gi` is a minimum — provision 50–100Gi for active publications accepting media uploads. PVC size can be expanded but not reduced.
`backup_retention_days`	`7`	Medium	Too short for active publications. Increase to 30+ days.
`quota_memory_requests` / `quota_memory_limits`	`""`	Critical (GKE-specific)	Must use binary suffixes (`Gi`, `Mi`) when set. Bare integers are treated as bytes and prevent all pods from being scheduled.
`enable_pod_disruption_budget`	`true`	Medium	Already enabled. Disabling allows all pods to be terminated simultaneously during node upgrades.
`pdb_min_available`	`"1"`	Medium	With a single replica, PDB prevents voluntary disruptions indefinitely. Use at least 2 replicas in production to allow rolling maintenance.
`startup_probe` initial_delay_seconds	`90`	High	Ghost runs migrations on first boot. Reducing `initial_delay_seconds` below 60 causes Kubernetes to restart the pod before Ghost finishes initialising, creating a restart loop.
`enable_cloud_armor`	`false`	Medium	Without Cloud Armor, Ghost admin (`/ghost`) is protected only by Ghost's own authentication. Enable for any publicly accessible deployment.

Standard Configuration Reference​

How Ghost GKE Relates to App GKE​

Group 0: Module Metadata & Configuration​

Group 1: Project & Identity​

Group 2: Application Identity​

Group 3: Runtime & Scaling​

Group 4: Access & Networking​

Group 5: Environment Variables & Secrets​

Group 6: Backup & Maintenance​

Group 7: CI/CD & GitHub Integration​

Group 8: Jobs & Scheduled Tasks​

Group 9: Storage & Filesystem — NFS​

Group 10: Storage & Filesystem — GCS​

Group 11: Database Configuration​

Group 12: Custom SQL Scripts​

Group 13: Observability & Health​

Health probe routing​

Group 14: Reliability Policies​

Group 8: Resource Quota​

Group 16: Custom Domain & Static IP​

Group 17: GKE Backend Configuration​

Group 18: Stateful Workloads​

Group 15: Redis Cache​

Validating Group 15 Settings​

Module Outputs​

Configuration Pitfalls & Sensible Defaults​

Standard Configuration Reference

How Ghost GKE Relates to App GKE

Group 0: Module Metadata & Configuration

Group 1: Project & Identity

Group 2: Application Identity

Group 3: Runtime & Scaling

Group 4: Access & Networking

Group 5: Environment Variables & Secrets

Group 6: Backup & Maintenance

Group 7: CI/CD & GitHub Integration

Group 8: Jobs & Scheduled Tasks

Group 9: Storage & Filesystem — NFS

Group 10: Storage & Filesystem — GCS

Group 11: Database Configuration

Group 12: Custom SQL Scripts

Group 13: Observability & Health

Health probe routing

Group 14: Reliability Policies

Group 8: Resource Quota

Group 16: Custom Domain & Static IP

Group 17: GKE Backend Configuration

Group 18: Stateful Workloads

Group 15: Redis Cache

Validating Group 15 Settings

Module Outputs

Configuration Pitfalls & Sensible Defaults
