Cyclos on Google Cloud Run

Cyclos is a feature-rich banking and payment platform used by microfinance institutions, credit unions, and complementary currency networks. This module deploys Cyclos on Cloud Run v2 on top of the App_CloudRun foundation, which provisions and manages the shared Google Cloud infrastructure.

This guide focuses on the cloud services Cyclos uses and how to explore and operate them from the Google Cloud Console and the command line. For the mechanics common to every Cloud Run application — service identity, ingress and load balancing, scaling and concurrency, CI/CD, Cloud Armor, IAP, Binary Authorization, VPC Service Controls, backups, and the deployment lifecycle — refer to the App_CloudRun foundation guide rather than repeating them here.

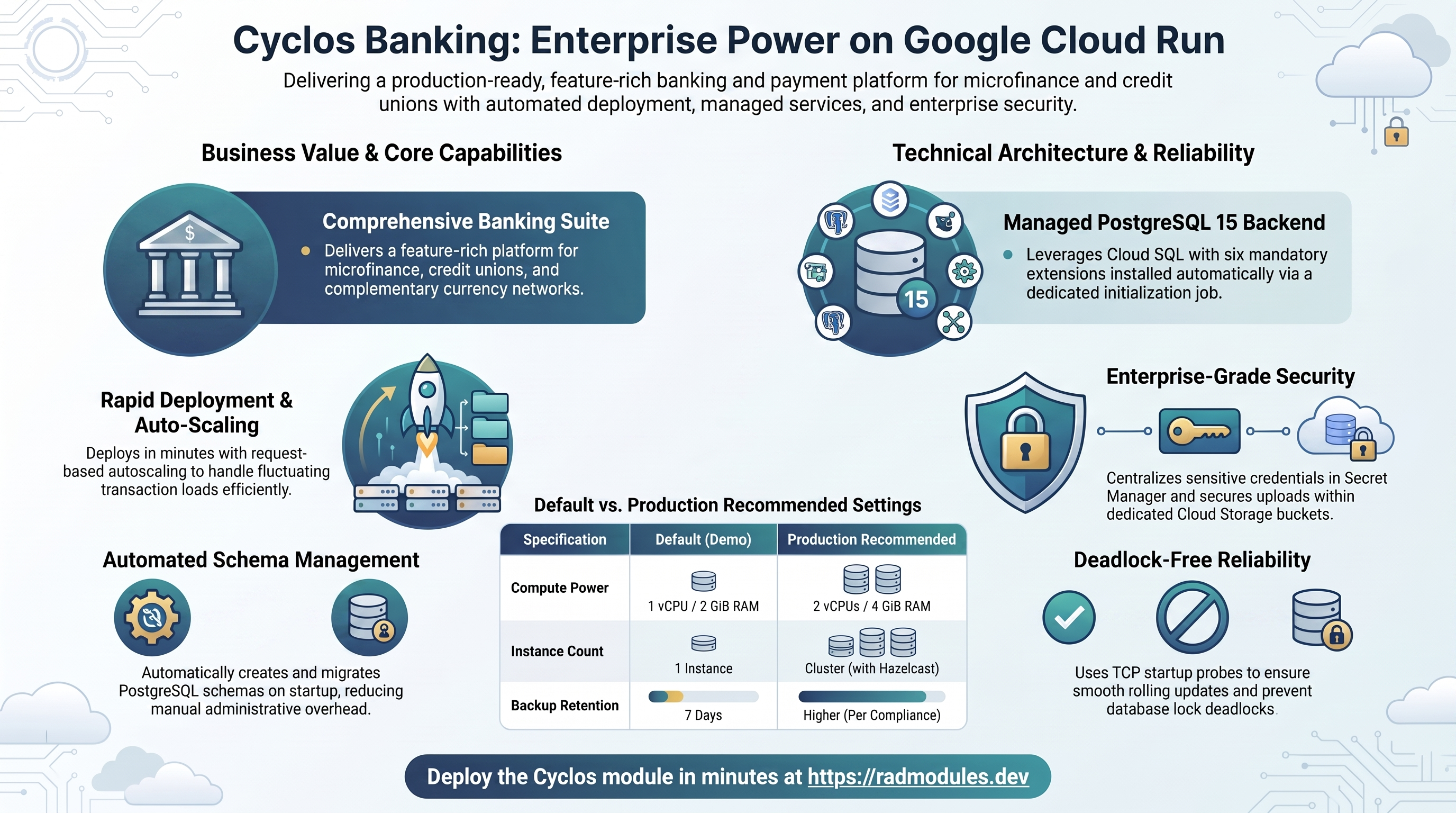

1. Overview

Cyclos runs as a Java/Tomcat container on Cloud Run v2. The deployment wires together a focused set of Google Cloud services:

Capability	Google Cloud service	Notes
Compute	Cloud Run v2	Java/Tomcat service, 1 vCPU / 2 GiB by default (raise for production), request-based autoscaling
Database	Cloud SQL for PostgreSQL 15	Required — Cyclos does not support MySQL or SQL Server
Object storage	Cloud Storage	A dedicated file-storage bucket (`<prefix>-cyclos-storage`) for uploaded files and media
Secrets	Secret Manager	Auto-generated database password; `ROOT_PASSWORD` for superuser extension setup
Ingress	Cloud Run URL / Cloud Load Balancing	Default `run.app` URL, optional external HTTPS load balancer + custom domain

Sensible defaults worth knowing up front:

PostgreSQL 15 is mandatory. Cyclos requires six specific PostgreSQL extensions (pg_trgm, uuid-ossp, cube, earthdistance, postgis, unaccent). MySQL and SQL Server are not supported.
PostgreSQL extensions are installed automatically by the db-init job before Cyclos starts — you do not need to enable them manually.
GCS file storage is mandatory. Cyclos uses Google Cloud Storage as its file content manager (cyclos.storedFileContentManager = gcs). The bucket name is injected automatically.
enable_cloudsql_volume defaults to false. Cyclos connects to Cloud SQL via direct TCP to the private IP, not via the Auth Proxy Unix socket.
max_instance_count defaults to 1. Cyclos Community Edition requires Hazelcast configuration to scale horizontally. Increase only after configuring clustering.
TCP startup probe. The startup probe uses TCP on port 8080 — not HTTP — because Cyclos holds the database lock during its Spring/schema initialisation phase. An HTTP probe on /api would not pass until Cyclos fully initialises, which during a rolling update causes a deadlock with the previous instance. TCP succeeds as soon as Tomcat is listening, allowing traffic to shift and the old instance to release the lock.
Schema management on startup. Cyclos creates and migrates its own PostgreSQL schema on first boot. First-deploy startup takes 2–5 minutes.
Health probes target /api. The liveness probe targets /api, which returns HTTP 200 only once Cyclos is fully initialised.

2. Google Cloud Services & How to Explore Them

All commands assume PROJECT and REGION are set. Service and resource names are reported in the deployment Outputs.

A. Cloud Run — the Cyclos service

Cyclos runs as a Cloud Run v2 service that autoscales by request load between the minimum and maximum instance counts. Each deployment creates an immutable revision; traffic can be split across revisions for safe rollouts.

Console: Cloud Run → select the service for revisions, traffic, logs, and metrics.

CLI:

gcloud run services list --project "$PROJECT" --region "$REGION"
gcloud run services describe <service-name> --project "$PROJECT" --region "$REGION"
gcloud run revisions list --service <service-name> --project "$PROJECT" --region "$REGION"

See App_CloudRun for scaling, concurrency, execution environment, and traffic splitting.

B. Cloud SQL for PostgreSQL 15

Cyclos stores all application data (accounts, transactions, members) in a managed Cloud SQL for PostgreSQL 15 instance. The service connects via direct TCP to the Cloud SQL private IP. On first deploy an initialization Job (run as a Cloud Run Job) creates the application database, user, and all six required extensions.

Console: SQL → select the instance for connections, backups, flags, metrics.

CLI:

gcloud sql instances list --project "$PROJECT"
gcloud sql instances describe <instance-name> --project "$PROJECT"
gcloud sql connect <instance-name> --user=cyclos --database=cyclos --project "$PROJECT"
# Inside psql — confirm required extensions are installed:
# \dx

The instance name, database, user, and password secret are in the Outputs. See App_CloudRun for the connection model, backups, and password rotation.

C. Cloud Storage — file content manager

Cyclos stores all uploaded files, profile photos, and transaction attachments in a dedicated Cloud Storage bucket provisioned as part of the deployment. The bucket name is injected automatically as cyclos.storedFileContentManager.bucketName. The service account is granted access automatically.

Console: Cloud Storage → Buckets → look for <prefix>-cyclos-storage.

CLI:

gcloud storage buckets list --project "$PROJECT" --filter="name:cyclos-storage"
gcloud storage ls gs://<cyclos-storage-bucket>/

See App_CloudRun for GCS Fuse mounts and CMEK.

D. Secret Manager

The Cyclos database password and the PostgreSQL superuser (ROOT_PASSWORD) are stored in Secret Manager and injected into the service at runtime. The db-init job uses ROOT_PASSWORD to install extensions; Cyclos uses DB_PASSWORD to connect at runtime.

Console: Security → Secret Manager.

CLI:

gcloud secrets list --project "$PROJECT"
gcloud secrets versions access latest --secret=<secret-name> --project "$PROJECT"

See App_CloudRun for injection and rotation details.

E. Networking & ingress

The service is reachable at its run.app URL by default. An external HTTPS load balancer with a custom domain, Cloud CDN, and Cloud Armor can be layered on; ingress settings and VPC egress control connectivity.

Console: Cloud Run (service URL); Network services → Load balancing.

CLI:

gcloud run services describe <service-name> --region "$REGION" \
  --format='value(status.url)'
gcloud compute addresses list --project "$PROJECT"

See App_CloudRun.

F. Cloud Logging & Monitoring

Container logs flow to Cloud Logging; Cloud Run and Cloud SQL metrics flow to Cloud Monitoring, with optional uptime checks and alert policies.

Console: Logging → Logs Explorer; Monitoring → Dashboards / Alerting.

CLI:

gcloud run services logs read <service-name> \
  --project "$PROJECT" --region "$REGION" --limit 50

3. Cyclos Application Behaviour

First-deploy database setup. The db-init job runs as the PostgreSQL superuser and idempotently: creates the cyclos database user, creates the application database, installs all six required extensions (pg_trgm, uuid-ossp, cube, earthdistance, postgis, unaccent), and grants the necessary privileges. It is safe to re-run.

Inspect the job and its executions:
```
gcloud run jobs list --project "$PROJECT" --region "$REGION"
gcloud run jobs executions list --job <job-name> --project "$PROJECT" --region "$REGION"
```
Schema management on startup. Cyclos creates and evolves its own PostgreSQL schema on startup (cyclos.db.managed = true). First-deploy startup takes 2–5 minutes.
TCP startup probe. During a rolling update, the new instance needs to acquire the Cyclos database initialisation lock before the old instance releases it. An HTTP probe on /api would never pass until Cyclos fully initialises, causing a deadlock. The TCP startup probe succeeds as soon as Tomcat is listening (~32 seconds), allows the traffic shift to the new revision, which sends SIGTERM to the old instance and releases the lock. The liveness probe then catches any uninitialised Spring context and triggers a clean restart.
JVM heap sizing. Set the CYCLOS_OPTIONS environment variable to cap JVM heap — for example { CYCLOS_OPTIONS = "-Xmx2g" } for a 4 GiB memory limit. Without this, the JVM can consume all available container memory and be OOMKilled.
Single-instance default. Cyclos Community Edition defaults to one instance (max_instance_count = 1). Increasing without Hazelcast clustering configuration causes non-atomic transaction processing and potential data corruption.
Email delivery. Cyclos sends transactional email via SMTP. The module pre-populates SMTP placeholder values in environment_variables — update them before going live:
```
environment_variables = {
  SMTP_HOST  = "smtp.sendgrid.net"
  SMTP_PORT  = "587"
  SMTP_USER  = "apikey"
  SMTP_SSL   = "true"
  EMAIL_FROM = "noreply@yourbank.example.com"
}
```
Use secret_environment_variables for SMTP_PASSWORD.
Direct TCP database connection. DB_HOST is set to the Cloud SQL private IP address (not a socket path). Ensure Private Service Access is configured on the VPC so the Cloud Run service can reach the Cloud SQL instance.

4. Configuration Variables

Variables are grouped exactly as they appear on the deployment platform. Only settings specific to or notable for Cyclos are listed; every other input is inherited from App_CloudRun with its standard behaviour.

Group 1 — Project & Identity

Variable	Default	Description
`project_id`	(required)	Target Google Cloud project.
`region`	`us-central1`	Region for the service and regional resources.

Group 2 — Deployment Environment

Variable	Default	Description
`tenant_deployment_id`	`demo`	Short suffix that makes resource names unique per environment.
`support_users`	`[]`	Emails granted project access and monitoring alerts.
`resource_labels`	`{}`	Labels applied to all resources.

Group 3 — Application Identity

Variable	Default	Description
`application_name`	`cyclos`	Base name for resources. Do not change after first deploy.
`display_name`	`Cyclos Community Edition`	Friendly name shown in the Console and monitoring dashboards.
`description`	`Cyclos Banking System on Cloud Run`	Service description.
`application_version`	`4.16.17`	Cyclos image version tag. Increment to trigger a new revision.

Group 4 — Runtime & Scaling

Variable	Default	Description
`deploy_application`	`true`	Set `false` to provision infrastructure only.
`cpu_limit`	`1000m`	CPU per instance. Raise to `2000m` for production.
`memory_limit`	`2Gi`	Memory per instance. Raise to `4Gi` for production.
`min_instance_count`	`1`	Minimum instances. Keep ≥ 1 to avoid slow JVM cold starts.
`max_instance_count`	`1`	Maximum instances. Keep `1` unless Hazelcast clustering is configured.
`container_port`	`8080`	Cyclos/Tomcat listens on port 8080.
`execution_environment`	`gen2`	Cloud Run execution generation. Gen2 required for VPC egress to Cloud SQL private IP.
`enable_cloudsql_volume`	`false`	Cyclos uses TCP to Cloud SQL private IP by default; enable only if using Auth Proxy.
`traffic_split`	`[]`	Canary/blue-green traffic allocation across revisions.
`max_revisions_to_retain`	`7`	How many old revisions to keep.

Group 5 — Access & Networking

Variable	Default	Description
`ingress_settings`	`all`	Which networks may reach the service.
`vpc_egress_setting`	`PRIVATE_RANGES_ONLY`	How outbound traffic routes through the VPC connector.
`enable_iap`	`false`	Require Google sign-in via Identity-Aware Proxy.
`iap_authorized_users` / `iap_authorized_groups`	`[]`	Who may access through IAP.

Group 6 — Environment Variables & Secrets

Variable	Default	Description
`environment_variables`	SMTP placeholder map	Pre-populated with SMTP defaults — configure before going live. Core Cyclos vars are injected automatically.
`secret_environment_variables`	`{}`	Map of env var → Secret Manager secret name. Use for `SMTP_PASSWORD`.
`secret_propagation_delay`	`30`	Seconds to wait after secret creation.
`secret_rotation_period`	`2592000s`	Secret Manager rotation notification frequency.

Group 7 — Backup & Restore

Variable	Default	Description
`backup_schedule`	`0 2 * * *`	Automated backup cron (UTC).
`backup_retention_days`	`7`	Retention; raise for production/compliance.
`enable_backup_import` / `backup_source` / `backup_uri` / `backup_format`	restore options	Restore from a backup on deploy. Set `false` after a successful import.

Group 8 — CI/CD & Binary Authorization

Standard App_CloudRun Cloud Build / Cloud Deploy integration — see App_CloudRun. Key inputs: enable_cicd_trigger, github_repository_url, github_token, enable_cloud_deploy, enable_binary_authorization.

Group 9 — Custom SQL Scripts

enable_custom_sql_scripts, custom_sql_scripts_bucket, custom_sql_scripts_path, custom_sql_scripts_use_root — run SQL from a GCS bucket after provisioning. See App_CloudRun.

Group 10 — Load Balancer, CDN & Image Lifecycle

Variable	Default	Description
`enable_cloud_armor`	`false`	Provision Global HTTPS LB + Cloud Armor WAF.
`admin_ip_ranges`	`[]`	CIDRs exempted from WAF rules.
`application_domains`	`[]`	Custom hostnames for the HTTPS LB.
`enable_cdn`	`false`	Enable Cloud CDN on the LB backend.
`max_images_to_retain` / `delete_untagged_images` / `image_retention_days`	(set)	Artifact Registry cleanup policy.

Group 11 — Storage & Filesystem

Variable	Default	Description
`create_cloud_storage`	`true`	Provision the additional data bucket.
`storage_buckets`	`[{ name_suffix = "data" }]`	Additional GCS buckets (the primary `cyclos-storage` bucket is provisioned automatically).
`enable_nfs`	`false`	NFS is not used by the Cyclos container (GCS is the file store).
`gcs_volumes`	`[]`	GCS Fuse mounts (requires gen2).
`manage_storage_kms_iam` / `enable_artifact_registry_cmek`	`false`	CMEK options.

Group 12 — Database Backend

Variable	Default	Description
`db_name`	`cyclos`	PostgreSQL database name. Immutable after first deploy.
`db_user`	`cyclos`	Application user. Immutable after first deploy.
`database_password_length`	`32`	Generated password length (16–64).
`enable_auto_password_rotation` / `rotation_propagation_delay_sec`	off	DB password rotation.

Group 13 — Jobs & Scheduled Tasks

Variable	Default	Description
`initialization_jobs`	`[]`	Leave empty to use the built-in `db-init` job (creates extensions, user, and database).
`cron_jobs`	`[]`	Recurring Cloud Run Jobs triggered by Cloud Scheduler.

Group 14 — Observability & Health

Variable	Default	Description
`startup_probe`	TCP, port 8080, 60s delay, 20s period, 15 failures	TCP probe avoids the rolling-update database lock deadlock.
`liveness_probe`	HTTP `/api`, 120s delay, 30s period, 3 failures	HTTP probe catches uninitialised Spring context after startup.
`uptime_check_config`	`{ enabled = false, path = "/" }`	Cloud Monitoring uptime check; disabled by default.
`alert_policies`	`[]`	Metric alert policies.

Group 22 — VPC Service Controls & Audit Logging

Variable	Default	Description
`enable_vpc_sc`	`false`	Enforce a VPC-SC perimeter (requires `organization_id`).
`vpc_cidr_ranges` / `vpc_sc_dry_run`	(set)	Access level CIDRs / dry-run mode.
`enable_audit_logging`	`false`	Detailed Cloud Audit Logs.

5. Outputs

Returned on a successful deployment — the quickest way to locate and explore the running resources.

Output	Description
`service_name`	Cloud Run service name.
`service_url`	Default `run.app` URL of the service.
`service_location`	Region the service runs in.
`stage_services`	Stage-specific service URLs (Cloud Deploy).
`load_balancer_ip` / `load_balancer_url`	External HTTPS load balancer IP / URL (when enabled).
`database_instance_name`	Cloud SQL instance name.
`database_name` / `database_user`	Application database name / user.
`database_password_secret`	Secret Manager secret holding the DB password.
`database_host` / `database_port`	DB endpoint / port.
`storage_buckets`	Created Cloud Storage buckets.
`network_name` / `network_exists` / `regions`	VPC network, presence, regions.
`container_image` / `container_registry`	Deployed image and Artifact Registry repo.
`monitoring_enabled` / `monitoring_notification_channels` / `uptime_check_names`	Monitoring status, channels, uptime checks.
`initialization_jobs`	Names of the setup jobs.
`deployment_id` / `tenant_id` / `resource_prefix`	Naming identifiers.
`project_id` / `project_number`	Project identifiers.
`cicd_enabled` / `github_repository_url` / `github_repository_owner` / `github_repository_name` / `cicd_configuration`	CI/CD status and details.
`artifact_registry_repository` / `cloudbuild_trigger_name` / `cloudbuild_trigger_id`	Registry and build trigger.
`vpc_sc_enabled` / `vpc_sc_perimeter_name` / `vpc_sc_dry_run_mode`	VPC-SC status.
`audit_logging_enabled` / `artifact_registry_cmek_enabled`	Audit logging and CMEK status.

6. Configuration Pitfalls & Sensible Defaults

Risk: Critical (data loss / outage / security) — High (service degraded) — Medium (cost or partial degradation) — Low (minor).

Setting	Sensible value	Risk	Consequence if wrong
`database_type`	`POSTGRES_15` (hardcoded via Cyclos_Common)	Critical	Cyclos requires PostgreSQL with six extensions. MySQL or `NONE` breaks startup entirely.
`db_name` / `db_user`	set once (`cyclos` / `cyclos`)	Critical	Immutable after first deploy; renaming recreates the DB/user and orphans all financial data.
`max_instance_count`	`1` (default)	Critical	More than 1 without Hazelcast clustering causes non-atomic transactions and potential data corruption.
`application_name`	`cyclos` (do not change)	Critical	Embedded in Cloud Run service name, Artifact Registry repo, Secret Manager secrets, and GCS bucket name. Changing orphans all resources.
`application_version`	pinned tag (e.g. `4.16.17`)	Critical	Cyclos schema migrations are one-way; deploying a newer version without a tested migration path corrupts the schema.
`cyclos.storedFileContentManager` env var	`gcs` (hardcoded)	Critical	Overriding to `local` writes files to ephemeral container storage; all uploads are lost on restart.
`memory_limit`	`≥ 2Gi` (`4Gi` recommended)	Critical	JVM throws `OutOfMemoryError`; container is OOMKilled (exit code 137).
`CYCLOS_OPTIONS` env var	`-Xmx2g` for 4 GiB limit	Critical	No JVM heap cap: Cyclos consumes all container memory; OOMKilled under load.
`startup_probe.type`	`TCP` (default)	High	HTTP probe on `/api` during a rolling update causes a database lock deadlock; the new revision never becomes healthy.
`startup_probe.path` (liveness)	`/api`	Critical	Wrong path: probe never sees HTTP 200; Cloud Run kills the revision.
`enable_cloudsql_volume`	`false` (default)	High	If Private Service Access is not configured, direct TCP connection to Cloud SQL private IP fails; db-init and app startup both fail.
`min_instance_count`	`1`	High	`0` (scale-to-zero) adds 45–120 s JVM cold starts; banking transactions time out.
`execution_environment`	`gen2`	High	Gen1 can have routing issues with Cloud SQL private IP via VPC. Always use gen2 for Cyclos.
`enable_backup_import`	`false` after restore	High	Leaving `true` re-runs the restore on every apply, overwriting live financial data.
`SMTP_HOST` / `EMAIL_FROM`	real server / real address	High	Placeholder defaults deliver no email; password resets and transaction notifications are silently dropped.
`enable_iap` / `enable_cloud_armor`	enable for admin-facing	Medium	The Cyclos admin interface is otherwise publicly reachable.
`backup_retention_days`	`7` (raise for prod)	Medium	Too short for compliance retention of financial records.

For the foundation behaviour referenced throughout — service identity, scaling and concurrency, ingress and load balancing, CI/CD, Cloud Armor, IAP, Binary Authorization, VPC-SC, backups, and image mirroring — see App_CloudRun. Cyclos-specific application configuration shared with the GKE variant is described in Cyclos_Common.

By Dr Shiyghan Emmanuel Navti · Google Cloud certified: ACE · PCA · PCD · PDE · PSE · CDL

1. Overview​

2. Google Cloud Services & How to Explore Them​

A. Cloud Run — the Cyclos service​

B. Cloud SQL for PostgreSQL 15​

C. Cloud Storage — file content manager​

D. Secret Manager​

E. Networking & ingress​

F. Cloud Logging & Monitoring​

3. Cyclos Application Behaviour​

4. Configuration Variables​

Group 1 — Project & Identity​

Group 2 — Deployment Environment​

Group 3 — Application Identity​

Group 4 — Runtime & Scaling​

Group 5 — Access & Networking​

Group 6 — Environment Variables & Secrets​

Group 7 — Backup & Restore​

Group 8 — CI/CD & Binary Authorization​

Group 9 — Custom SQL Scripts​

Group 10 — Load Balancer, CDN & Image Lifecycle​

Group 11 — Storage & Filesystem​

Group 12 — Database Backend​

Group 13 — Jobs & Scheduled Tasks​

Group 14 — Observability & Health​

Group 22 — VPC Service Controls & Audit Logging​

5. Outputs​

6. Configuration Pitfalls & Sensible Defaults​

1. Overview

2. Google Cloud Services & How to Explore Them

A. Cloud Run — the Cyclos service

B. Cloud SQL for PostgreSQL 15

C. Cloud Storage — file content manager

D. Secret Manager

E. Networking & ingress

F. Cloud Logging & Monitoring

3. Cyclos Application Behaviour

4. Configuration Variables

Group 1 — Project & Identity

Group 2 — Deployment Environment

Group 3 — Application Identity

Group 4 — Runtime & Scaling

Group 5 — Access & Networking

Group 6 — Environment Variables & Secrets

Group 7 — Backup & Restore

Group 8 — CI/CD & Binary Authorization

Group 9 — Custom SQL Scripts

Group 10 — Load Balancer, CDN & Image Lifecycle

Group 11 — Storage & Filesystem

Group 12 — Database Backend

Group 13 — Jobs & Scheduled Tasks

Group 14 — Observability & Health

Group 22 — VPC Service Controls & Audit Logging

5. Outputs

6. Configuration Pitfalls & Sensible Defaults
