Metabase on GKE Autopilot
This document provides a comprehensive reference for the modules/Metabase_GKE Terraform module. It covers architecture, IAM, configuration variables, Metabase-specific behaviours, and operational patterns for deploying Metabase on Google Kubernetes Engine (GKE) Autopilot.

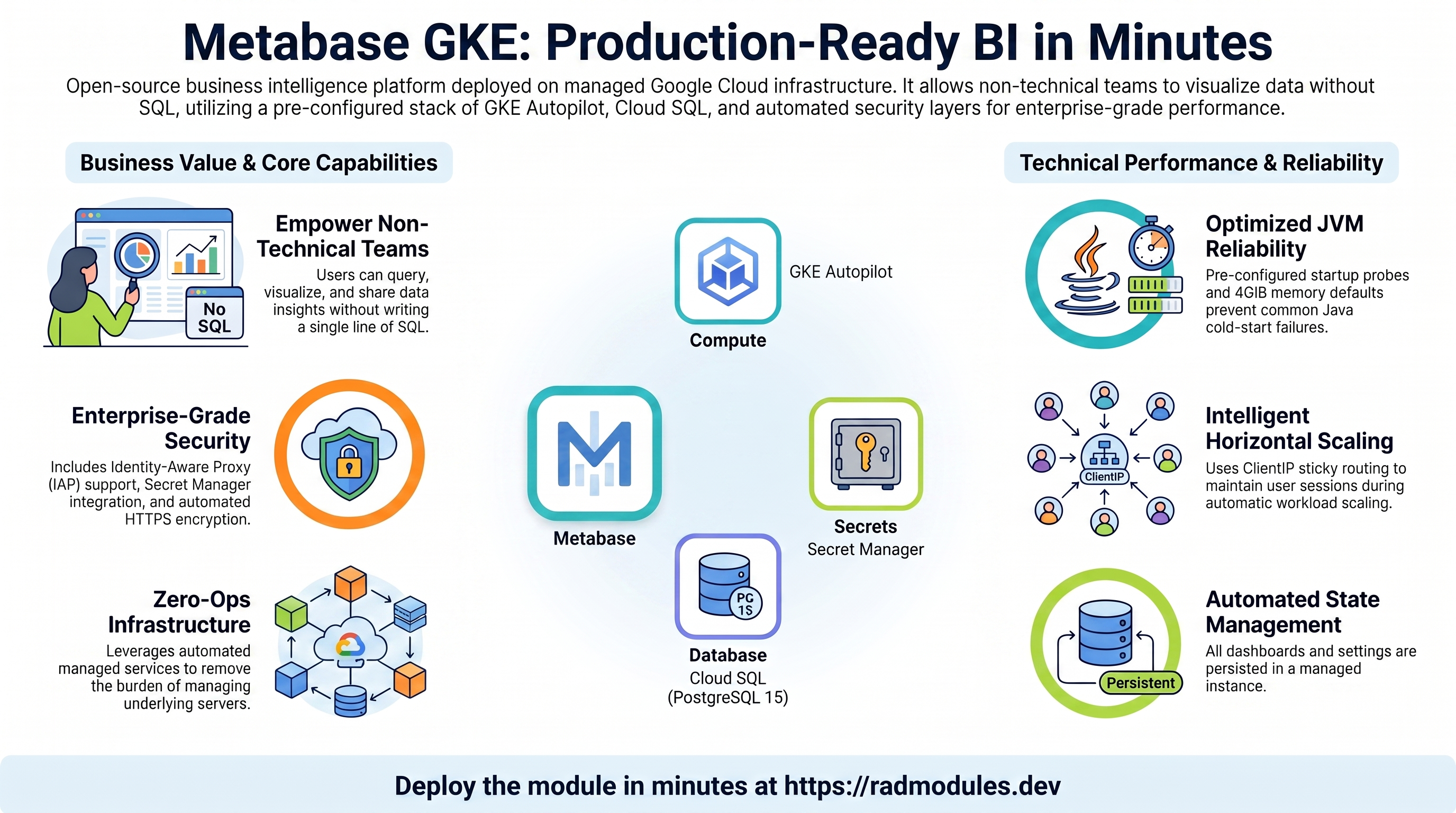

1. Module Overview
Metabase GKE is a wrapper module built on top of App GKE. It uses App GKE for all GCP and Kubernetes infrastructure provisioning and injects Metabase-specific application configuration via Metabase Common.
Key Capabilities:
- Compute: GKE Autopilot Deployment (Metabase is stateless), 2 vCPU / 4 Gi by default with Horizontal Pod Autoscaling.
- Data Persistence: Cloud SQL PostgreSQL 15 as the Metabase application database. A
db-initKubernetes Job runs automatically on first deployment. - Security: Inherits Cloud Armor WAF, IAP (OAuth 2.0), Binary Authorization, and VPC Service Controls from
App GKE. - Session Affinity: Defaults to
'ClientIP'(sticky sessions) — recommended for Metabase to avoid session interruptions when HPA scales pods. - Reliability: Health probes target
/api/healthwith 120-second initial delay for JVM startup. PodDisruptionBudget is enabled by default.
JVM startup note: Metabase requires at least 60–120 seconds to start. Set min_instance_count = 1 to keep at least one pod warm and avoid scheduling delays on GKE Autopilot.
2. IAM & Access Control
Metabase GKE delegates all IAM provisioning to App GKE. Metabase pods access Cloud SQL via the Cloud SQL Auth Proxy sidecar and Workload Identity.
Default db-init job: Metabase Common provides a db-init Kubernetes Job using postgres:15-alpine that runs before the Metabase workload starts, creating the PostgreSQL database and user.
3. Core Service Configuration
A. Compute (GKE Autopilot)
| Variable | Group | Default | Description |
|---|---|---|---|
deploy_application | 4 | true | Set false for infrastructure-only deployment. |
container_image_source | 4 | 'custom' | 'custom' builds via Cloud Build; 'prebuilt' deploys an existing image. |
container_image | 4 | "" | Override image URI. Leave empty for Cloud Build to manage. |
container_resources | 4 | { cpu_limit="2000m", memory_limit="4Gi" } | CPU/memory limits. JVM requires at least 2 Gi. |
min_instance_count | 4 | 1 | Minimum pod replicas. Set to at least 1 to avoid JVM cold starts. |
max_instance_count | 4 | 5 | Maximum pod replicas. |
container_port | 4 | 3000 | Metabase's Jetty HTTP port. |
container_protocol | 4 | 'http1' | HTTP protocol version. |
timeout_seconds | 4 | 300 | Max load balancer backend timeout. Increase for complex queries. |
enable_cloudsql_volume | 4 | true | Injects the Cloud SQL Auth Proxy sidecar. |
enable_image_mirroring | 4 | true | Mirrors the Metabase image into Artifact Registry. |
enable_vertical_pod_autoscaling | 4 | false | Enables VPA for JVM right-sizing. Recommended for GKE Autopilot. |
service_annotations | 4 | {} | Custom annotations on the Kubernetes Service resource. |
service_labels | 4 | {} | Labels applied to the Kubernetes Service resource. |
B. GKE-Specific Backend Configuration
| Variable | Group | Default | Description |
|---|---|---|---|
workload_type | 6 | null | 'Deployment' or 'StatefulSet'. Metabase is stateless — use 'Deployment'. |
service_type | 6 | 'LoadBalancer' | Kubernetes Service type. |
session_affinity | 6 | 'ClientIP' | Sticky sessions recommended for Metabase to prevent session loss on pod scaling. |
gke_cluster_name | 6 | "" | Target GKE cluster. Leave empty to auto-discover. |
gke_cluster_selection_mode | 6 | 'primary' | Strategy for choosing the target cluster. |
namespace_name | 6 | "" | Kubernetes namespace. Leave empty to auto-generate. |
termination_grace_period_seconds | 6 | 60 | Seconds Kubernetes waits after SIGTERM. Increase to allow in-flight queries to complete. |
enable_network_segmentation | 6 | false | Creates Kubernetes NetworkPolicy resources. |
enable_multi_cluster_service | 6 | false | Creates a ServiceExport for Multi-Cluster Services. |
configure_service_mesh | 6 | false | Enables Istio service mesh injection. |
deployment_timeout | 6 | 1800 | Maximum seconds Terraform waits for the Deployment rollout. Increase for large JVM images. |
prereq_gke_subnet_cidr | 6 | '10.201.0.0/24' | CIDR range for the GKE subnet. Not referenced in this module. |
C. StatefulSet Configuration
Metabase is stateless and does not require StatefulSet. These variables are available for advanced use cases only.
| Variable | Group | Default | Description |
|---|---|---|---|
stateful_pvc_enabled | 7 | null | Enables PVC templates. Not recommended for Metabase. |
stateful_pvc_size | 7 | '10Gi' | PVC storage size. |
stateful_pvc_mount_path | 7 | '/data' | PVC mount path inside the container. |
stateful_pvc_storage_class | 7 | 'standard-rwo' | Kubernetes StorageClass. |
stateful_headless_service | 7 | null | Creates a headless Service for the StatefulSet. |
stateful_pod_management_policy | 7 | null | Pod creation order. |
stateful_update_strategy | 7 | null | Update strategy. |
stateful_fs_group | 7 | 0 | Pod-level fsGroup. Set to 0 to leave unset — Metabase does not require a specific GID. |
D. Database (Cloud SQL — PostgreSQL 15)
| Variable | Group | Default | Description |
|---|---|---|---|
database_type | 16 | 'POSTGRES_15' | Cloud SQL engine. PostgreSQL required for Metabase. |
application_database_name | 16 | 'metabase' | PostgreSQL database name. |
application_database_user | 16 | 'metabase' | PostgreSQL application user. |
database_password_length | 16 | 32 | Auto-generated password length. Range: 16–64. |
enable_postgres_extensions | 16 | false | Not required for Metabase. |
postgres_extensions | 16 | [] | Not applicable for Metabase. |
enable_auto_password_rotation | 16 | false | Automated zero-downtime password rotation. |
rotation_propagation_delay_sec | 16 | 90 | Seconds to wait after rotation before restarting pods. |
db_name | 16 | 'metabase' | Passed to Metabase Common. |
db_user | 16 | 'metabase' | Passed to Metabase Common. |
E. Storage
Metabase does not require dedicated GCS storage. All application state is stored in PostgreSQL.
| Variable | Group | Default | Description |
|---|---|---|---|
create_cloud_storage | 14 | true | Set false to skip GCS bucket creation. |
storage_buckets | 14 | [] | GCS bucket configurations. Empty by default — Metabase does not require object storage. |
gcs_volumes | 14 | [] | GCS Fuse volume mounts. |
manage_storage_kms_iam | 14 | false | Creates CMEK KMS keyring. |
enable_artifact_registry_cmek | 14 | false | Enables CMEK for Artifact Registry images. |
max_images_to_retain | 14 | 7 | Maximum recent container images to keep. |
delete_untagged_images | 14 | true | Automatically deletes untagged images. |
image_retention_days | 14 | 30 | Days after which images are eligible for deletion. |
enable_nfs | 13 | false | Provisions NFS storage. Not typically required for Metabase. |
nfs_mount_path | 13 | '/mnt/nfs' | NFS mount path. |
nfs_volume_name | 13 | 'nfs-data-volume' | Volume name for the NFS mount. |
nfs_instance_name | 13 | "" | Name of an existing NFS GCE VM. |
nfs_instance_base_name | 13 | 'app-nfs' | Base name for inline NFS VM. |
4. Advanced Security
A. Identity-Aware Proxy (IAP)
IAP is particularly valuable for Metabase GKE deployments — it restricts access to the BI tool to authenticated Google users before traffic reaches the Kubernetes Service.
| Variable | Group | Default | Description |
|---|---|---|---|
enable_iap | 20 | false | Enables IAP for the GKE Ingress. |
iap_authorized_users | 20 | [] | Users granted IAP access. |
iap_authorized_groups | 20 | [] | Google Groups granted IAP access. |
iap_oauth_client_id | 20 | "" | OAuth 2.0 Client ID. Required when enable_iap = true. Sensitive. |
iap_oauth_client_secret | 20 | "" | OAuth 2.0 Client Secret. Required when enable_iap = true. Sensitive. |
iap_support_email | 20 | "" | Support email shown on the OAuth consent screen. |
B. Cloud Armor
| Variable | Group | Default | Description |
|---|---|---|---|
enable_cloud_armor | 21 | false | Attaches a Cloud Armor security policy to the GKE Ingress backend. |
admin_ip_ranges | 21 | [] | Admin CIDR ranges. |
cloud_armor_policy_name | 21 | 'default-waf-policy' | Cloud Armor security policy name. |
enable_cdn | 21 | false | Enables Cloud CDN on the GKE Ingress backend. |
C. VPC Service Controls
| Variable | Group | Default | Description |
|---|---|---|---|
enable_vpc_sc | 22 | false | Enables VPC-SC perimeter enforcement. |
vpc_cidr_ranges | 22 | [] | VPC subnet CIDR ranges. |
vpc_sc_dry_run | 22 | true | Logs violations without blocking. |
organization_id | 22 | "" | GCP Organization ID for VPC-SC. |
enable_audit_logging | 22 | false | Enables detailed Cloud Audit Logs. |
5. Traffic & Ingress
| Variable | Group | Default | Description |
|---|---|---|---|
enable_custom_domain | 19 | false | Provisions a Kubernetes Ingress for custom domain routing. |
application_domains | 19 | [] | Custom domain names for the Ingress. |
reserve_static_ip | 19 | true | Provisions a global static external IP. Recommended for production. |
static_ip_name | 19 | "" | Name for the static IP. Leave empty to auto-generate. |
network_tags | 19 | ['nfsserver'] | Network tags applied to GKE nodes. |
network_name | 19 | "" | VPC network name. Leave empty to auto-discover. |
6. CI/CD & Delivery
| Variable | Group | Default | Description |
|---|---|---|---|
enable_cicd_trigger | 12 | false | Provisions a Cloud Build GitHub trigger. |
github_repository_url | 12 | "" | Full HTTPS URL of the GitHub repository. |
github_token | 12 | "" | GitHub PAT. Sensitive. |
github_app_installation_id | 12 | "" | GitHub App installation ID. |
cicd_trigger_config | 12 | { branch_pattern = "^main$" } | Advanced Cloud Build trigger config. |
enable_cloud_deploy | 12 | false | Provisions a Cloud Deploy pipeline. |
cloud_deploy_stages | 12 | [dev, staging, prod(approval)] | Ordered promotion stages. |
enable_binary_authorization | 12 | false | Enforces image attestation. |
7. Reliability & Scheduling
A. Health Probes
| Variable | Group | Default | Description |
|---|---|---|---|
startup_probe_config | 10 | { path="/api/health", initial_delay_seconds=60, failure_threshold=18 } | GKE startup probe. Allows up to 240 seconds total startup tolerance for JVM. |
health_check_config | 10 | { path="/api/health", initial_delay_seconds=120, failure_threshold=3 } | GKE liveness probe. |
uptime_check_config | 10 | { enabled=false, path="/api/health" } | Cloud Monitoring uptime check. |
alert_policies | 10 | [] | Cloud Monitoring metric alert policies. |
startup_probe | 10 | { path="/api/health", initial_delay_seconds=60, failure_threshold=18 } | Probe config passed to Metabase Common. |
liveness_probe | 10 | { path="/api/health", initial_delay_seconds=120, failure_threshold=3 } | Probe config passed to Metabase Common. |
B. Reliability Policies
| Variable | Group | Default | Description |
|---|---|---|---|
enable_pod_disruption_budget | 9 | true | Creates a Kubernetes PodDisruptionBudget. |
pdb_min_available | 9 | '1' | Minimum pods available during voluntary disruptions. |
enable_topology_spread | 9 | false | Distributes pods across GKE node zones. |
topology_spread_strict | 9 | false | Rejects pods if topology spread cannot be satisfied. |
C. Resource Quotas
| Variable | Group | Default | Description |
|---|---|---|---|
enable_resource_quota | 8 | false | Creates a Kubernetes ResourceQuota. |
quota_cpu_requests | 8 | "" | Total CPU requests allowed. |
quota_cpu_limits | 8 | "" | Total CPU limits allowed. |
quota_memory_requests | 8 | "" | Total memory requests. Must use binary unit suffixes (e.g., '4Gi'). |
quota_memory_limits | 8 | "" | Total memory limits. Must use binary unit suffixes (e.g., '8Gi'). |
quota_max_pods | 8 | "" | Maximum pods in the namespace. Not referenced. |
quota_max_services | 8 | "" | Maximum Services in the namespace. Not referenced. |
quota_max_pvcs | 8 | "" | Maximum PVCs in the namespace. Not referenced. |
D. Jobs & Scheduled Tasks
| Variable | Group | Default | Description |
|---|---|---|---|
initialization_jobs | 11 | [] | Kubernetes Jobs run before the application starts. Leave empty for the default db-init job. |
cron_jobs | 11 | [] | Scheduled cluster tasks using Kubernetes CronJobs. |
additional_services | 11 | [] | Sidecar or helper GKE services. |
E. Backup
| Variable | Group | Default | Description |
|---|---|---|---|
backup_schedule | 17 | '0 2 * * *' | Backup cron schedule. |
backup_retention_days | 17 | 7 | Days to retain backup files. |
enable_backup_import | 17 | false | Triggers a one-time database import. |
backup_source | 17 | 'gcs' | 'gcs' or 'gdrive'. |
backup_uri | 17 | "" | Full GCS URI or Google Drive file ID. |
backup_format | 17 | 'sql' | Backup file format. |
8. Integrations
A. Redis
Metabase does not natively use Redis. The enable_redis variable injects REDIS_HOST and REDIS_PORT environment variables but does not configure Metabase's operation.
| Variable | Group | Default | Description |
|---|---|---|---|
enable_redis | 21 | false | Injects Redis environment variables. Not required by Metabase. |
redis_host | 21 | "" | Redis hostname or IP. |
redis_port | 21 | '6379' | Redis TCP port. |
B. Custom SQL Scripts
| Variable | Group | Default | Description |
|---|---|---|---|
enable_custom_sql_scripts | 18 | false | Runs SQL scripts from GCS against the Metabase database. |
custom_sql_scripts_bucket | 18 | "" | GCS bucket containing SQL scripts. |
custom_sql_scripts_path | 18 | "" | Path prefix within the bucket. |
custom_sql_scripts_use_root | 18 | false | Run scripts as the root DB user. |
9. Platform-Managed Behaviours
| Behaviour | Detail |
|---|---|
| PostgreSQL 15 required | Metabase uses PostgreSQL as its application database. All state is stored in PostgreSQL. |
MB_JETTY_PORT = "3000" injected | Set automatically by Metabase Common. Must match container_port. |
JAVA_TIMEZONE = "UTC" injected | Set automatically by Metabase Common. Ensures consistent timestamp handling. |
| Default db-init Kubernetes Job | Metabase Common provides a db-init job that runs before the workload. Override by setting initialization_jobs. |
| Metabase is stateless | Use workload_type = 'Deployment'. StatefulSet is available but not recommended. |
| Session affinity = ClientIP | Default sticky sessions prevent users from being re-routed mid-session when HPA scales pods. |
| No application secrets generated | Metabase manages its own internal keys. No SECRET_KEY equivalent is created. |
| No default GCS storage | All Metabase state is in PostgreSQL. The storage_buckets default is empty. |
| Unix socket by default | enable_cloudsql_volume = true. Connects to Cloud SQL via Auth Proxy Unix socket. |
10. Outputs
| Output | Description |
|---|---|
service_name | Name of the Kubernetes Service. |
external_ip | External load balancer IP address. |
namespace | Kubernetes namespace for the deployment. |
project_id | GCP project ID. |
deployment_id | Deployment ID suffix used in resource names. |
database_instance_name | Name of the Cloud SQL PostgreSQL instance. |
database_name | Name of the application database. |
database_user | Name of the application database user. |
database_password_secret | Secret Manager secret name for the database password. |
container_image | Container image used for the deployment. |
Configuration Pitfalls & Sensible Defaults
Risk levels: Critical (data loss, full outage, security breach) — High (service unavailable or significant degradation) — Medium (degraded function or increased cost) — Low (minor impact).
| Variable | Sensible Default | Risk | Consequence of Incorrect Value |
|---|---|---|---|
container_resources.memory_limit | "4Gi" | Critical | Metabase runs on the JVM. Under 2 Gi the process crashes with OutOfMemoryError on startup. Minimum safe value is "2Gi"; "4Gi" is recommended for production. |
container_resources.cpu_limit | "2000m" | High | JVM JIT compilation during startup requires significant CPU. Under 500m startup can exceed the probe failure_threshold, causing perpetual container restarts. |
container_resources.mem_request | null (defaults to limit) | High | On GKE Autopilot, mem_request drives node provisioning. Setting it far below memory_limit causes GKE to schedule the pod on a node with insufficient physical memory, resulting in OOM eviction. |
MB_JAVA_OPTS (via environment_variables) | Not set | High | Always pair -Xmx with a value below memory_limit (e.g., -Xmx3500m when limit is "4Gi"). A heap ceiling exceeding container memory causes OOM kills. |
MB_JETTY_PORT | "3000" (hardcoded in Common) | High | Overriding without also changing container_port breaks all routing and health checks. |
application_database_name | "metabase" | High | Immutable after first apply. Changing orphans the entire Metabase schema. |
application_database_user | "metabase" | High | Immutable after first apply. Renaming requires manual Cloud SQL intervention. |
application_version | "v0.51.3" | High | Metabase migrations are one-way. Downgrading to a previous version after a migration has run corrupts the application schema. Always stage upgrades. |
startup_probe_config.initial_delay_seconds | 60 | High | Metabase JVM startup + DB migration check takes 60–90 s. Reducing below 30 causes premature pod kills before the app is ready. |
startup_probe_config.failure_threshold | 30 (= 300 s) | High | Reducing causes premature container kills before Metabase completes JVM startup. Do not reduce below 20. |
min_instance_count | 1 | High | Scale-to-zero causes 60–90 s cold starts (JVM + DB migration check). This triggers request timeouts for users and alert delivery failures. |
enable_cloudsql_volume | true | Critical | Required for the Cloud SQL Auth Proxy sidecar. Disabling with a PostgreSQL backend causes all DB connections to be refused. |
quota_memory_requests / quota_memory_limits | "4Gi" / "8Gi" | High | GKE-specific: must use binary suffixes (Gi, Mi). A bare integer (e.g., "4") is treated as bytes and blocks all pod scheduling. |
stateful_pvc_enabled | false | Medium | Metabase does not require persistent volumes — all state is in PostgreSQL. Enabling may introduce stuck rollouts for a service that does not need it. |
pdb_min_available | "1" | Medium | Setting to "0" allows all pods to be evicted during node upgrades, causing a full Metabase outage. |
enable_iap | false | High | Without IAP, the Metabase login page is accessible from the load-balancer IP. Enable IAP or configure Kubernetes network policies for internal-only deployments. |
backup_schedule | "0 2 * * *" | Medium | Disabling automated backups means all saved dashboards, questions, and user definitions can be permanently lost. |
JAVA_TIMEZONE | "UTC" (hardcoded in Common) | Medium | Overriding causes Metabase date filtering and report scheduling to use a different timezone than the database, producing incorrect results. |
