Keycloak on GKE Autopilot

Keycloak is an open-source identity and access management platform providing single sign-on (SSO), OAuth 2.0/OIDC, SAML 2.0, social login, user federation (LDAP/Active Directory), and fine-grained authorization — a self-hosted alternative to Auth0/Okta with no per-user fees. This module deploys Keycloak on GKE Autopilot on top of the App_GKE foundation, which provisions and manages the shared Google Cloud and Kubernetes infrastructure.

This guide focuses on the cloud services Keycloak uses and how to explore and operate them from the Google Cloud Console and the command line. For the mechanics that are common to every GKE application — Workload Identity, ingress, autoscaling, CI/CD, Cloud Armor, IAP, Binary Authorization, VPC Service Controls, backups, and the deployment lifecycle — refer to the App_GKE foundation guide rather than repeating them here.

---

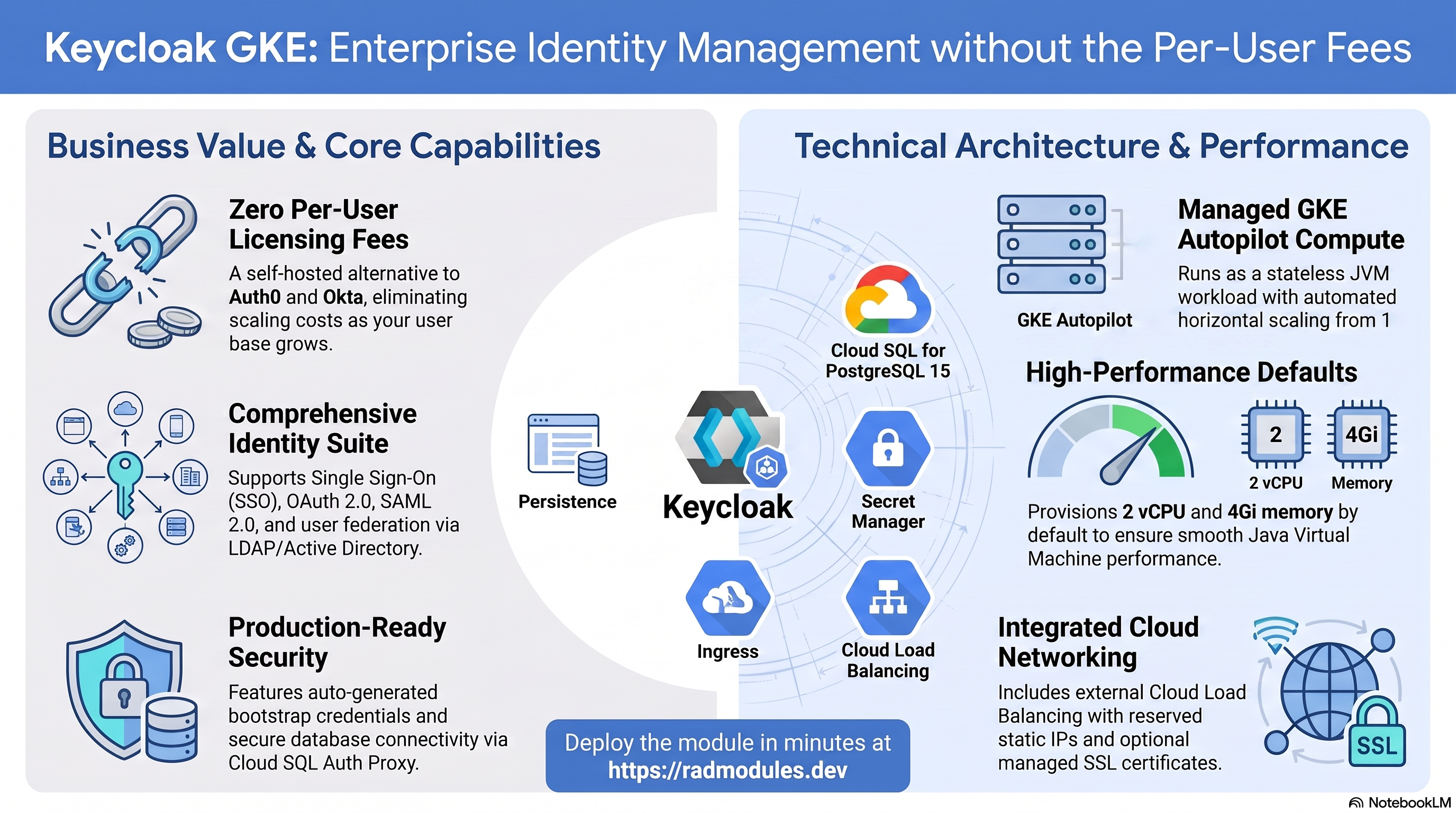

1. Overview

Keycloak runs as a single JVM (Quarkus-based) web workload built in production-optimized mode. The deployment wires together a focused set of Google Cloud services:

Capability	Google Cloud service	Notes
Compute	GKE Autopilot	JVM pod on port 8080, 2 vCPU / 4Gi memory by default
Database	Cloud SQL for PostgreSQL 15	Required — the engine is fixed at POSTGRES_15; MySQL is not supported
Database connectivity	Cloud SQL Auth Proxy sidecar	Listens on 127.0.0.1:5432; KC_DB_URL is a plain JDBC TCP connection — no Unix-socket issue on GKE
Secrets	Secret Manager	Auto-generated KC_BOOTSTRAP_ADMIN_PASSWORD (temporary admin) and database password
Ingress	Cloud Load Balancing	External LoadBalancer with a reserved static IP; optional custom domain + managed certificate
Image build	Cloud Build + Artifact Registry	A custom multi-stage image runs kc.sh build at build time, kc.sh start --optimized at boot

Sensible defaults worth knowing up front:

• PostgreSQL 15 is mandatory. database_type defaults to POSTGRES_15 and is fixed by the shared application layer; MySQL/SQL Server are not supported for Keycloak.
• Cloud SQL is reached via the Auth Proxy sidecar on loopback. GKE sets enable_cloudsql_volume = true by default (unlike the CloudRun variant, which defaults it to false because Cloud Run's Cloud SQL integration is a Unix-socket mount the JDBC driver can't use). On GKE the sidecar exposes a real TCP listener on 127.0.0.1:5432, so KC_DB_URL is a plain jdbc:postgresql://127.0.0.1:5432/<db> — no socket workaround needed.
• KC_DB_USERNAME is never hardcoded. The foundation tenant-prefixes the real Postgres role (e.g. keycloakdemo<hash>); entrypoint.sh maps the platform-injected DB_USER/DB_PASSWORD onto KC_DB_USERNAME/ KC_DB_PASSWORD at runtime only when they are not already set — this module does not hit the hardcoded-DB-user pitfall called out for other apps in this repository.
• min/max replica counts are fixed by this module, not by the min_instance_count/max_instance_count inputs. Keycloak_GKE's main.tf hardcodes the per-app scaling config to min_instance_count = 1, max_instance_count = 5 when it builds the application config map that App_GKE actually reads for scaling — the top-level min_instance_count/max_instance_count variables are passed to the foundation too, but are shadowed by the app-scoped values. See §6.
• NFS and Redis are not used. enable_nfs and enable_redis both default to false — Keycloak keeps all state (realms, clients, users, sessions) in PostgreSQL, and Keycloak_Common provisions no Cloud Storage bucket (storage_buckets = []).
• KC_BOOTSTRAP_ADMIN_PASSWORD is generated automatically and stored in Secret Manager, paired with KC_BOOTSTRAP_ADMIN_USERNAME (default admin). It is explicitly a temporary bootstrap credential — log in, create a permanent administrator, then rotate or disable the bootstrap account.
• Session affinity is ClientIP so a client's requests reach the same pod.
• Health/metrics are on a separate management port (9000), not the HTTP port (8080). All probes are TCP checks against port 8080 (the HTTP listener accepting connections) rather than HTTP checks against /health, which lives on 9000 and would always fail a probe aimed at 8080.
• KC_HOSTNAME is auto-detected at runtime. entrypoint.sh queries the GCP metadata server / Cloud Run Admin API first and falls back to the SERVICE_URL injected by App_GKE; override it via environment_variables for a pinned public URL.

---

2. Google Cloud Services & How to Explore Them

All commands assume you have run gcloud container clusters get-credentials <cluster> --region "$REGION" --project "$PROJECT" and that PROJECT, REGION, and NAMESPACE are set. The namespace and other identifiers are reported in the deployment Outputs.

A. GKE Autopilot — the Keycloak workload

Keycloak pods are scheduled on Autopilot, which bills for the CPU/memory the pods actually request. Keycloak is stateless (workload_type defaults to Deployment, not StatefulSet) since all durable state lives in PostgreSQL.

• Console: Kubernetes Engine → Workloads → select the Keycloak workload for pods, revisions, and events. Kubernetes Engine → Services & Ingress shows the external IP.
• CLI:

  kubectl get pods,svc -n "$NAMESPACE"
  kubectl logs -n "$NAMESPACE" deploy/<service-name> --tail=100
  kubectl describe pod -n "$NAMESPACE" -l app=<service-name>

See App_GKE for how Autopilot, scaling, and the workload type (Deployment vs StatefulSet) are managed.

B. Cloud SQL for PostgreSQL 15

Keycloak stores all application data (realms, clients, users, groups, sessions) in a managed Cloud SQL for PostgreSQL 15 instance. Pods reach it through the Cloud SQL Auth Proxy sidecar on 127.0.0.1:5432; no public IP is exposed. On first deploy the db-init Job idempotently creates the application role and database, grants ownership, and grants privileges on SCHEMA public (required on PostgreSQL 15+, where public is no longer world-writable) — Keycloak itself then creates and migrates its schema on first boot.

• Console: SQL → select the instance for connections, backups, flags, metrics.
• CLI:

  gcloud sql instances list --project "$PROJECT"
  gcloud sql instances describe <instance-name> --project "$PROJECT"
  gcloud sql connect <instance-name> --user=<db-user> --database=<db-name> --project "$PROJECT"

The instance name, database, user, and the Secret Manager secret holding the password are all in the Outputs. See App_GKE for the connection model, automated backups, and password rotation.

C. Secret Manager

Keycloak's only application-level secret is the bootstrap admin password (KC_BOOTSTRAP_ADMIN_PASSWORD, a 20-character random value paired with username admin via KC_BOOTSTRAP_ADMIN_USERNAME). The database password is generated separately by the foundation and is injected directly as KC_DB_PASSWORD (via db_password_env_var_name = "KC_DB_PASSWORD" on the App_GKE call), in addition to the standard DB_PASSWORD. On GKE, secrets are projected into pods via the Secret Store CSI driver.

• Console: Security → Secret Manager.
• CLI:

  gcloud secrets list --project "$PROJECT" --filter="name~keycloak"
  gcloud secrets versions access latest \
    --secret="$(gcloud secrets list --project "$PROJECT" \
      --filter='name~keycloak-admin-password' --format='value(name)' --limit=1)" \
    --project "$PROJECT"

See App_GKE for the Secret Store CSI integration and rotation.

D. Networking & ingress

By default the workload is exposed through an external Cloud Load Balancing IP (service_type = LoadBalancer, reserve_static_ip = true so the address survives redeploys). A custom domain with a Google-managed certificate can be enabled via enable_custom_domain + application_domains.

• Console: Network services → Load balancing; VPC network → IP addresses.
• CLI:

  kubectl get svc,ingress -n "$NAMESPACE"
  gcloud compute addresses list --project "$PROJECT"

See App_GKE for custom domains, Cloud CDN, and static IP details.

E. Cloud Logging & Monitoring

Pod stdout/stderr flow to Cloud Logging; GKE and Cloud SQL metrics flow to Cloud Monitoring. Optional uptime checks and alert policies are available — Keycloak serves a public landing page at /, which is what uptime_check_config targets.

• Console: Logging → Logs Explorer; Monitoring → Dashboards / Alerting.
• CLI:

  gcloud logging read 'resource.type="k8s_container" AND resource.labels.namespace_name="'"$NAMESPACE"'"' \
    --project "$PROJECT" --limit 50

---

3. Keycloak Application Behaviour

• First-deploy database setup. The db-init Job runs db-init.sh using postgres:15-alpine. It waits for pg_isready, then idempotently creates the application role (or updates its password), grants that role to postgres so the superuser can manage its objects, creates/owns the database, and grants privileges on the database and on SCHEMA public. It finishes by sending a POST /quitquitquit to the Cloud SQL Proxy sidecar on 127.0.0.1:9091 so the Job pod can terminate and be marked Succeeded on GKE. The job is safe to re-run (execute_on_apply = true, max_retries = 3).
• No separate migration job — Keycloak migrates its own schema on first boot. The custom image runs kc.sh build at build time (baking in KC_DB=postgres, health, and metrics) and kc.sh start --optimized at container start; Keycloak's own bootstrap process creates/migrates the schema against the empty database created by db-init.
• Bootstrap admin account. entrypoint.sh execs kc.sh start --optimized with KC_BOOTSTRAP_ADMIN_USERNAME=admin and the generated KC_BOOTSTRAP_ADMIN_PASSWORD secret. Log in at <service-url>/admin, create a permanent administrator, then rotate or disable the bootstrap account — it is meant to be temporary.
• DB env-var mapping happens at runtime, never baked in. The platform injects DB_HOST=127.0.0.1 (the Auth Proxy sidecar), DB_USER, DB_PASSWORD, DB_NAME, DB_PORT; entrypoint.sh maps these onto KC_DB_URL/KC_DB_USERNAME/KC_DB_PASSWORD only when the KC_DB_* variable is not already explicitly set, so operators can still override any of them via environment_variables.
• Health path — TCP only, port 8080. Keycloak 25+ serves /health, /health/ready, /health/live, and /metrics on the separate management port 9000, not on the HTTP port 8080 the platform probes. An HTTP probe against 8080/health would always 404. Both the startup probe (30s initial delay, 30 failures ≈ up to ~330s total for JVM start + schema migration) and the liveness probe (60s initial delay, 3 failures) are TCP checks against port 8080.
• Horizontal scaling / clustering caveat. Keycloak_GKE's wiring comment states Keycloak "persists all state in PostgreSQL, so horizontal scaling is safe (cluster nodes form a shared cache via the default infinispan)".
• Verify the running configuration:

  kubectl get jobs -n "$NAMESPACE"
  kubectl logs -n "$NAMESPACE" job/<db-init-job-name>
  kubectl exec -n "$NAMESPACE" deploy/<service-name> -- env | grep -E '^KC_'

---

4. Configuration Variables

Variables are grouped exactly as they appear on the deployment platform. Only settings specific to or notable for Keycloak are listed; every other input is inherited from App_GKE with its standard behaviour and defaults.

Group 3 — Application Identity

Variable	Default	Description
application_name	keycloak	Base name for resources. Do not change after first deploy.
application_version	26.0	Keycloak image tag baked into the custom kc.sh build. Never downgrade — schema migrations are one-way.

Group 4 — Runtime & Scaling

Variable	Default	Description
container_resources	{ cpu_limit = "2000m", memory_limit = "4Gi" }	The authoritative CPU/memory sizing — it is merged into the app config after Keycloak_Common's own cpu_limit/memory_limit, so it always wins. Keycloak's JVM needs at least 2Gi.
cpu_limit / memory_limit	2000m / 4Gi	Legacy top-level sizing inputs, forwarded into Keycloak_Common — shadowed by container_resources (see §6) since container_resources always has a non-null default.
min_instance_count / max_instance_count	1 / 5	Forwarded to the Foundation directly, but the effective replica bounds are hardcoded to 1/5 in this module's main.tf, independent of these values — see §6.
container_port	8080	Keycloak's HTTP listener. Health/metrics are on the separate management port 9000 — the platform probes this port over TCP, not HTTP.
enable_cloudsql_volume	true	Cloud SQL Auth Proxy sidecar (loopback TCP) — required on GKE for JDBC connectivity.
cloudsql_volume_mount_path	/cloudsql	Path inside the container where the Auth Proxy Unix socket directory is mounted (used by the db-init job's pg_isready/psql calls; the running Keycloak container itself connects over 127.0.0.1:5432, not this path).

Group 6 — GKE Backend & Cluster

Variable	Default	Description
service_type	LoadBalancer	External IP for the Keycloak admin/login UI.
workload_type	null → Deployment	Keycloak is stateless; do not switch to StatefulSet.
session_affinity	ClientIP	Sticky routing so a client reaches the same pod.
termination_grace_period_seconds	60	Time allowed for in-flight requests to complete before a pod is force-killed.

Group 10 — Observability & Health

Variable	Default	Description
startup_probe_config / health_check_config	TCP, port 8080	Top-level Foundation probe inputs — the app-scoped startup_probe/liveness_probe values below are what App_GKE actually reads for this workload's probes.
startup_probe	TCP, 30s delay, 30 failures	Forwarded into Keycloak_Common; generous failure budget for JVM start + first-boot schema creation.
liveness_probe	TCP, 60s delay, 3 failures	Forwarded into Keycloak_Common. TCP only — /health on port 9000 is not reachable from the probe.
uptime_check_config	{ enabled = false, path = "/" }	Keycloak serves a public landing page at /.

Group 13 — Filesystem (NFS)

Variable	Default	Description
enable_nfs	false	Not typically required — Keycloak keeps all state in PostgreSQL.

Group 16 — Database Backend

Variable	Default	Description
database_type	POSTGRES_15	Fixed engine; MySQL/SQL Server are not supported.
db_name / db_user	keycloak / keycloak	The authoritative database name/user — these flow through Keycloak_Common's config.db_name/config.db_user, which is what App_GKE actually provisions.
application_database_name / application_database_user	keycloak / keycloak	Forwarded to the Foundation call directly, but shadowed by db_name/db_user inside App_GKE's per-app config resolution — both default to the same value, so this is invisible unless only one pair is changed. See §6.
enable_postgres_extensions	false	Not required for Keycloak.

Group 19 — Custom Domain, Static IP & Networking

Variable	Default	Description
reserve_static_ip	true	Stable external IP across redeploys.
application_domains	[]	Custom hostnames + managed certificate.

Group 21 — Cloud Armor, CDN & Redis

Variable	Default	Description
enable_redis	false	Keycloak does not require Redis; leave false unless a custom SPI/plugin needs it.

All other inputs follow standard App_GKE behaviour.

---

5. Outputs

These values are returned on a successful deployment and are the quickest way to locate and explore the running resources.

Output	Description
service_name	Kubernetes Service name.
namespace	Namespace the workload runs in.
service_cluster_ip	In-cluster ClusterIP.
stage_service_cluster_ips	Map of ClusterIPs for stage-specific services.
service_external_ip	External LoadBalancer IP (when a static IP is reserved).
service_url	URL to reach Keycloak.
database_instance_name	Cloud SQL instance name.
database_name / database_user	Application database name / user.
database_password_secret	Secret Manager secret holding the DB password.
database_host / database_port	DB endpoint (127.0.0.1 via the Auth Proxy) / port.
storage_buckets	Created Cloud Storage buckets (empty — Keycloak stores no state outside PostgreSQL).
network_name / network_exists / regions	VPC network, presence, available regions.
container_image / container_registry	Deployed image and Artifact Registry repo.
monitoring_enabled / monitoring_notification_channels	Monitoring status and channels.
initialization_jobs / db_import_job	Names of the setup (db-init) and (optional) import jobs.
deployment_id / tenant_id / resource_prefix	Naming identifiers.
project_id / project_number	Project identifiers.
cicd_enabled / cicd_configuration	CI/CD status and details (repo, trigger, registry).
github_repository_url / github_repository_owner / github_repository_name	CI/CD GitHub details.
artifact_registry_repository / cloudbuild_trigger_name / cloudbuild_trigger_id	Registry and build trigger.
kubernetes_ready	Whether the cluster/workload is ready.
vpc_sc_enabled / vpc_sc_perimeter_name / vpc_sc_dry_run_mode	VPC-SC status.
audit_logging_enabled / artifact_registry_cmek_enabled	Audit logging and CMEK status.

---

6. Configuration Pitfalls & Sensible Defaults

Risk: Critical (data loss / outage / security) — High (service degraded) — Medium (cost or partial degradation) — Low (minor).

Inherited plan-time validation. This module passes its configuration through the App_GKE foundation engine, which validates values and combinations at plan time — a StatefulSet forced alongside a stateless setting, IAP with no authorized identities, quota_memory_* given as bare integers, an out-of-range container_port/ backup_retention_days. Invalid configuration fails the plan with a clear, named error before any resource is created, so most mistakes below are caught up front rather than at apply or runtime.

Setting	Sensible value	Risk	Consequence if wrong
database_type	POSTGRES_15 (fixed)	Critical	Selecting a non-Postgres engine breaks Keycloak's schema bootstrap and every query.
db_name / db_user (the authoritative pair)	Set once, before first deploy	Critical	Effectively immutable — App_GKE resolves the real Cloud SQL database/user from these, and changing them after first deploy points Keycloak at a different (empty) database/role, orphaning all realms/users.
application_database_name / application_database_user	Leave matching db_name/db_user	Medium	These are forwarded to the Foundation but shadowed by db_name/db_user inside App_GKE's per-app config resolution — changing only this pair silently has no effect on the actual database name, which can mislead an operator into thinking a rename happened.
min_instance_count / max_instance_count	Understand they are informational here	Medium	This module hardcodes the effective replica bounds to 1/5 in main.tf regardless of these variables' values — setting max_instance_count = 1 for cost control will not actually cap replicas at 1.
cpu_limit / memory_limit	Set container_resources instead	Medium	container_resources always has a non-null default and is merged in last, so changing only the legacy cpu_limit/memory_limit variables is silently ignored.
KC_BOOTSTRAP_ADMIN_PASSWORD (auto-generated)	Retrieve, log in, then rotate/disable	High	The bootstrap admin is meant to be temporary; leaving it active indefinitely is a standing credential risk.
enable_cloudsql_volume	true	High	The Auth Proxy sidecar on 127.0.0.1:5432 is required for DB connectivity on GKE; disabling it with no alternative TCP path breaks every DB call.
Probe paths	TCP on port 8080 (default)	High	Keycloak's /health lives on management port 9000, not 8080 — an HTTP probe against 8080/health always 404s and the pod never becomes Ready even though Keycloak booted fine.
max_instance_count > 1 (session clustering)	Verify Infinispan/session replication before relying on it	High	If the deployed image's cache stack is not actually distributed across pods (unconfirmed — see §3), users can be bounced to a pod with no knowledge of their session, forcing re-authentication.
session_affinity	ClientIP	Medium	Without stickiness, requests bounce between pods more than necessary while the clustering caveat above is unresolved.
application_version	Never downgrade	Critical	Keycloak schema migrations are one-way; downgrading after a migration has run can corrupt the schema.
quota_memory_requests / _limits	binary units (4Gi, 8192Mi)	Critical	Bare integers are treated as bytes and block all pod scheduling in the namespace.
reserve_static_ip	true	Medium	Without it, the external IP can change across redeploys, breaking DNS and KC_HOSTNAME.
backup_retention_days	7 (raise for prod)	Medium	Too short for compliance retention.

---

For the foundation behaviour referenced throughout — IAM and Workload Identity, autoscaling, ingress and certificates, CI/CD, Cloud Armor, IAP, Binary Authorization, VPC-SC, backups, and image mirroring — see App_GKE. Keycloak-specific application configuration shared with the Cloud Run variant (the custom image build, entrypoint DB/hostname mapping, secrets, and probe defaults) is described in Keycloak_Common.
