Healthchecks on GKE Autopilot

Healthchecks is an open-source, self-hosted cron job and heartbeat monitoring service: scheduled tasks "ping" it on success, and it alerts you by email, Slack, SMS, or any of 100+ other integrations when a ping is late or missing. This module deploys Healthchecks on GKE Autopilot on top of the App_GKE foundation, which provisions and manages the shared Google Cloud and Kubernetes infrastructure.

This guide focuses on the cloud services Healthchecks uses and how to explore and operate them from the Google Cloud Console and the command line. For the mechanics that are common to every GKE application — Workload Identity, ingress, autoscaling, CI/CD, Cloud Armor, IAP, Binary Authorization, VPC Service Controls, backups, and the deployment lifecycle — refer to the App_GKE foundation guide rather than repeating them here.

---

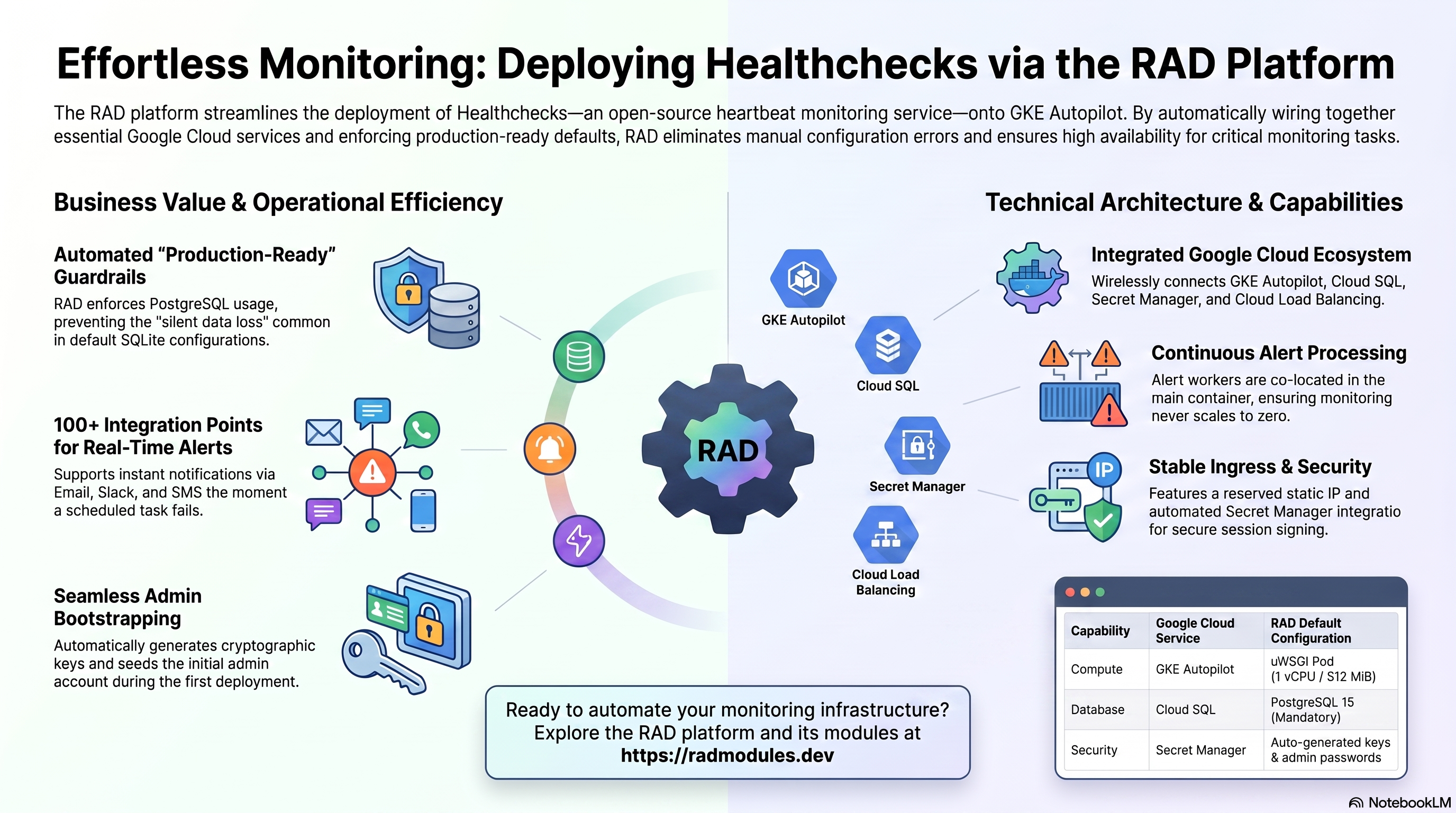

1. Overview

Healthchecks runs as a Django/uWSGI Pod. The deployment wires together a focused set of Google Cloud services:

Capability	Google Cloud service	Notes
Compute	GKE Autopilot	uWSGI pod, 1 vCPU / 512 MiB by default, single replica
Database	Cloud SQL for PostgreSQL 15	Required — the DB env var is explicitly set to postgres, overriding the image's SQLite fallback
Secrets	Secret Manager	Auto-generated SECRET_KEY and initial admin password; database password
Ingress	Cloud Load Balancing	External LoadBalancer with a reserved static IP by default

Sensible defaults worth knowing up front:

• PostgreSQL 15 is mandatory, and DB = "postgres" is set explicitly. The upstream image otherwise silently falls back to a throwaway, container-local SQLite database with no error.
• The container image is genuinely prebuilt (healthchecks/healthchecks) — container_image_source defaults to "prebuilt", verified both in its own default AND in the main.tf forward (a module that gets either one wrong either builds from a non-existent Dockerfile or silently deploys the wrong image — see the Prowlarr_GKE precedent in this catalogue).
• No scale-to-zero needed on GKE. Unlike the Cloud Run variant, a GKE Deployment simply runs its configured replica count continuously, so the co-located sendalerts/sendreports alert loop is always live with zero extra configuration — there is no GKE equivalent of cpu_always_allocated.
• No dedicated health endpoint. Startup/liveness probes target / (the public login page). ALLOWED_HOSTS = "*" is set so the kubelet's own internal probe Host header is never rejected by Django's host validation.
• The initial admin account is seeded once, not self-healing. An admin-bootstrap init Job runs migrations and creates the superuser (admin_email / a generated Secret Manager password) via Django's stock createsuperuser --noinput. Because GKE's init-job ordering is not as strict as Cloud Run's (a job can be scheduled before the main Deployment's own first boot), the job runs its own migration first rather than assuming the schema already exists.
• Outbound email is a placeholder by default. DEFAULT_FROM_EMAIL defaults to healthchecks@example.org. Configure real EMAIL_HOST/EMAIL_HOST_USER/ EMAIL_HOST_PASSWORD post-deploy or alerts will fail to actually deliver.
• No Redis, no object storage. Healthchecks stores all state — checks, pings, users, alert configuration — in PostgreSQL alone.
• service_type = LoadBalancer and reserve_static_ip = true — Healthchecks is a browser-facing web UI, so it gets a stable public IP by default.

---

2. Google Cloud Services & How to Explore Them

All commands assume you have run gcloud container clusters get-credentials <cluster> --region <region> --project <project> and that PROJECT, REGION, and NAMESPACE are set. The namespace and other identifiers are reported in the deployment Outputs.

A. GKE Autopilot — the Healthchecks workload

Healthchecks runs as a single-replica Deployment on Autopilot, which bills for the CPU/memory the pod actually requests.

• Console: Kubernetes Engine → Workloads → select the Healthchecks workload for pods, revisions, and events. Kubernetes Engine → Services & Ingress shows the external IP.
• CLI:

  kubectl get pods,svc -n "$NAMESPACE"
  kubectl logs -n "$NAMESPACE" deploy/<service-name> --tail=100

See App_GKE for Autopilot scheduling and the workload type (Deployment vs StatefulSet).

B. Cloud SQL for PostgreSQL 15

Healthchecks stores all application data (checks, pings, integrations, users, alert history) in a managed Cloud SQL for PostgreSQL 15 instance. Pods reach it privately through the Cloud SQL Auth Proxy sidecar over 127.0.0.1. On first deploy, initialization Jobs create the application database/role and seed the initial admin account.

• Console: SQL → select the instance for connections, backups, flags, and metrics.
• CLI:

  gcloud sql instances list --project "$PROJECT"
  gcloud sql instances describe <instance-name> --project "$PROJECT"
  gcloud sql connect <instance-name> --user=<db-user> --database=<db-name> --project "$PROJECT"

The instance name, database name, user, and the Secret Manager secret holding the password are all surfaced in the Outputs. For the connection model, automated backups, and password rotation, see App_GKE.

C. Secret Manager

Two cryptographic values are generated automatically and stored in Secret Manager: SECRET_KEY (Django session/CSRF signing key) and ADMIN_PASSWORD (the initial superuser password, seeded once). The database password is managed separately by the foundation.

• Console: Security → Secret Manager.
• CLI:

  gcloud secrets list --project "$PROJECT" --filter="name~healthchecks"
  gcloud secrets versions access latest --secret=<secret-name> --project "$PROJECT"

See App_GKE for the Secret Store CSI integration and rotation.

D. Networking & ingress

By default the workload is exposed through an external Cloud Load Balancing IP, reserved as a static IP so the address survives redeploys.

• Console: Network services → Load balancing; VPC network → IP addresses.
• CLI:

  kubectl get svc -n "$NAMESPACE"
  gcloud compute addresses list --project "$PROJECT"

See App_GKE for custom domains and static IP details.

E. Cloud Logging & Monitoring

Pod stdout/stderr (including the co-located sendalerts/sendreports background workers) flow to Cloud Logging; GKE and Cloud SQL metrics flow to Cloud Monitoring.

• Console: Logging → Logs Explorer; Monitoring → Dashboards / Alerting.
• CLI:

  gcloud logging read 'resource.type="k8s_container" AND resource.labels.namespace_name="'"$NAMESPACE"'"' \
    --project "$PROJECT" --limit 50

---

3. Healthchecks Application Behaviour

• First-deploy database setup. The db-init initialization Job runs using postgres:15-alpine, connecting through the Cloud SQL Auth Proxy to idempotently create the application role and database.
• Admin account bootstrap. The admin-bootstrap Job (using the Healthchecks image itself) runs manage.py migrate --noinput, then manage.py createsuperuser --noinput --username admin --email <admin_email> (password from a generated Secret Manager secret). GKE's execute_on_apply setting only gates whether Terraform waits for the job, not whether Kubernetes schedules it immediately — so the job replicates the migration step itself rather than assuming the main Deployment has already booted and migrated.
• Database migrations also run on every normal container start of the main Deployment (the image's uwsgi.ini has hook-pre-app = exec:./manage.py migrate built in), so upgrading application_version applies schema changes automatically.
• The sendalerts/sendreports background loop is co-located in the same container, started automatically by the image's own uwsgi.ini alongside the web server — no separate worker Deployment exists. Because GKE Deployments don't scale to zero on their own, this loop runs continuously as long as the Deployment has at least one replica (the default).
• Health path. Startup and liveness probes target / — Healthchecks has no dedicated health endpoint; the root login page always responds unauthenticated and would 500 (not render) if the database connection were broken.
• Inspect job execution:

  kubectl get jobs -n "$NAMESPACE"
  kubectl logs -n "$NAMESPACE" job/<job-name>

---

4. Configuration Variables

Variables are grouped exactly as they appear on the deployment platform. Only settings specific to or notable for Healthchecks are listed; every other input is inherited from App_GKE with its standard behaviour and defaults.

Group 3 — Application Identity

Variable	Default	Description
application_name	healthchecks	Base name for resources. Do not change after first deploy.
admin_email	admin@techequity.cloud	Email/username for the initial superuser, seeded once.
default_from_email	healthchecks@example.org	Placeholder sender address until real SMTP is configured.

Group 4 — Runtime & Scaling

Variable	Default	Description
container_image_source	prebuilt	The official image needs no custom build.
container_image	""	Leave empty to use healthchecks/healthchecks:<application_version>.
container_port	8000	The upstream image's uWSGI server binds here (docker/uwsgi.ini).
enable_cloudsql_volume	true	Cloud SQL Auth Proxy sidecar — DB_HOST resolves to 127.0.0.1, which the discrete env var accepts verbatim.

Group 6 — GKE Backend & Cluster

Variable	Default	Description
service_type	LoadBalancer	Public web UI — exposed externally by default.
workload_type	Deployment	Stateless — all state lives in PostgreSQL.

Group 13 — Filesystem (NFS)

Variable	Default	Description
enable_nfs	false	Not used — Healthchecks needs no shared filesystem.

Group 15 — Redis Cache & Queue

Variable	Default	Description
enable_redis	false	Not used — Healthchecks has no documented Redis integration.

Group 16 — Database Backend

Variable	Default	Description
database_type	POSTGRES_15	Fixed; MySQL/SQLite are not wired through this module.
application_database_name	healthchecks_db	Immutable after first deploy.
application_database_user	healthchecks_user	Immutable after first deploy.

Group 19 — Custom Domain, Static IP & Networking

Variable	Default	Description
reserve_static_ip	true	Stable external IP across redeploys.

---

5. Outputs

Output	Description
service_name	Kubernetes Service name.
namespace	Namespace the workload runs in.
service_external_ip	External LoadBalancer IP.
service_url	URL to reach Healthchecks.
database_instance_name	Cloud SQL instance name.
database_name / database_user	Application database name / user.
database_password_secret	Secret Manager secret holding the DB password.
database_host / database_port	DB endpoint (127.0.0.1 via the Auth Proxy) / port.
container_image / container_registry	Deployed image and Artifact Registry repo.
initialization_jobs	Names of the setup jobs.
deployment_id / tenant_id / resource_prefix	Naming identifiers.
project_id / project_number	Project identifiers.
kubernetes_ready	Whether the cluster/workload is ready.

---

6. Configuration Pitfalls & Sensible Defaults

Risk: Critical (data loss / outage / security) — High (service degraded) — Medium (cost or partial degradation) — Low (minor).

Setting	Sensible value	Risk	Consequence if wrong
DB (auto-set)	"postgres"	Critical	If somehow unset, the app silently uses a throwaway local SQLite DB — checks and alert history vanish on every restart, with no error.
container_image_source	prebuilt	Critical	Switching to custom with no Dockerfile in Healthchecks_Common/scripts fails the Kaniko build.
ADMIN_PASSWORD (auto-generated)	Retrieve once, rotate via UI after	Medium	The seeded password is only set on the FIRST successful admin-bootstrap run; re-running the job does not update it.
DEFAULT_FROM_EMAIL / SMTP vars	Configure real SMTP post-deploy	High	Left at the placeholder default, sendalerts logs delivery errors instead of actually notifying anyone of a missed check-in.
ALLOWED_HOSTS (auto-set to "*")	Leave as-is unless you have a specific reason	Low	Disabling Django's Host header validation entirely is an accepted trade-off here to keep platform health probes working.
application_database_name / application_database_user	Set once	Critical	Immutable after first deploy; renaming recreates the DB/user and destroys all data.
enable_cloudsql_volume	true	High	The Auth Proxy sidecar is required for PostgreSQL connectivity on GKE.

---

For the foundation behaviour referenced throughout — IAM and Workload Identity, autoscaling, ingress and certificates, CI/CD, Cloud Armor, IAP, Binary Authorization, VPC-SC, backups, and image mirroring — see App_GKE. Healthchecks-specific application configuration shared with the Cloud Run variant is described in Healthchecks_Common.
