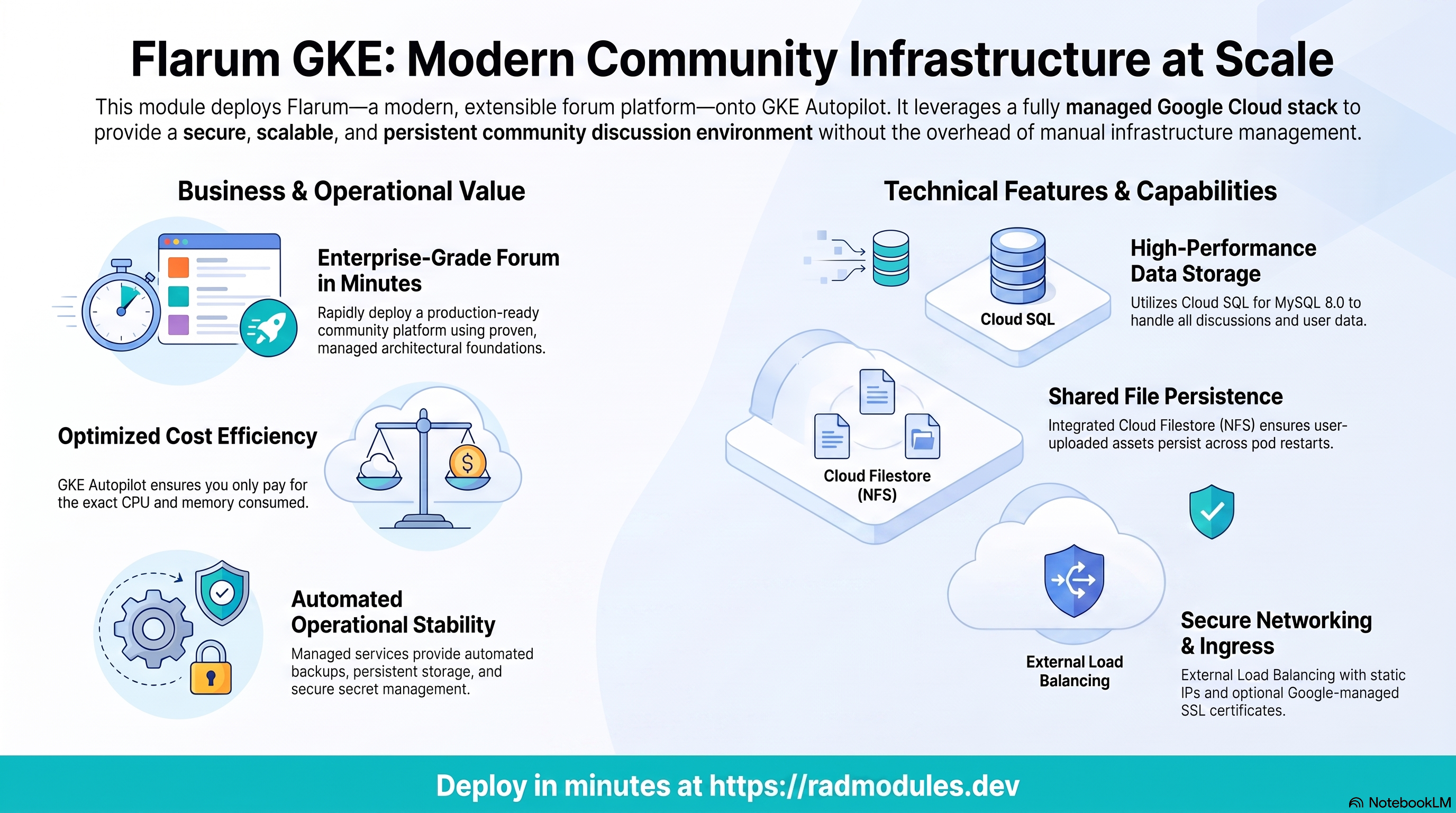

Flarum on GKE Autopilot

Flarum is a free, open-source forum and discussion platform — a modern, extensible alternative to traditional bulletin-board software, built on PHP with a JavaScript/Mithril front end and a REST API. This module deploys Flarum on GKE Autopilot on top of the App_GKE foundation, which provisions and manages the shared Google Cloud and Kubernetes infrastructure.

This guide focuses on the cloud services Flarum uses and how to explore and operate them from the Google Cloud Console and the command line. For the mechanics that are common to every GKE application — Workload Identity, ingress, autoscaling, CI/CD, Cloud Armor, IAP, Binary Authorization, VPC Service Controls, backups, and the deployment lifecycle — refer to the App_GKE foundation guide rather than repeating them here.

---

1. Overview

Flarum runs as a single nginx + php-fpm workload built from the mondedie/flarum community image. The deployment wires together a focused set of Google Cloud services:

Capability	Google Cloud service	Notes
Compute	GKE Autopilot	nginx/php-fpm pod on port 8888, 1 vCPU / 2 GiB by default
Database	Cloud SQL for MySQL 8.0	Required — the engine is fixed at MYSQL_8_0
File persistence	Cloud Filestore (NFS)	User-uploaded avatars/attachments persist under /flarum/app/public/assets, shared across pods
Object storage	Cloud Storage	A flarum-assets bucket is provisioned automatically (not mounted by default — see below)
Secrets	Secret Manager	Auto-generated FLARUM_ADMIN_PASS; database password managed separately
Ingress	Cloud Load Balancing	External LoadBalancer with a reserved static IP; optional custom domain + managed certificate

Sensible defaults worth knowing up front:

• MySQL 8.0 is mandatory. Flarum_Common hardcodes database_type = "MYSQL_8_0" in its output config; the variant's database_type variable only takes effect if explicitly overridden away from its null default.
• Cloud SQL is reached via the Auth Proxy sidecar on loopback. Flarum_Common explicitly overrides DB_HOST = "127.0.0.1" because the mondedie/flarum image's own installer reads DB_HOST directly; a cloud-sql-proxy sidecar (enable_cloudsql_volume = true) listens on 127.0.0.1:3306.
• Single replica by default. min_instance_count = 1, max_instance_count = 1. The workload is NFS-backed (enable_nfs = true), so per the shared Foundation behaviour a redeploy uses the Recreate rollout strategy rather than RollingUpdate — do not raise max_instance_count without verifying Flarum's behaviour under multiple concurrent pods sharing the same NFS assets volume and database.
• NFS is enabled by default (enable_nfs = true, mounted at /flarum/app/public/assets) so user avatars and attachments persist and are shared across pods.
• A flarum-assets GCS bucket is created but not mounted anywhere by default. Flarum_Common provisions a Cloud Storage bucket (storage_buckets output, suffix flarum-assets), but no default gcs_volumes entry references it — it sits unused unless you add one explicitly. NFS, not GCS Fuse, is what actually backs the assets directory out of the box.
• Session affinity is ClientIP so a client's requests reach the same pod.
• First-boot auto-install (no separate migration job). The base image's own s6-overlay entrypoint runs Flarum's installer on first container start, reading DB_HOST/DB_PORT/DB_NAME/DB_USER/DB_PASS/DB_PREF, FORUM_URL, and the FLARUM_ADMIN_* variables. There is no separate migration job — the Dockerfile is a thin, unmodified wrapper over mondedie/flarum (only EXPOSE 8888 and a build-arg-selected base tag).
• FLARUM_ADMIN_PASS is generated automatically and stored in Secret Manager. The admin username and email are fixed by Flarum_Common's defaults (admin / admin@techequity.cloud) — they are not exposed as Application Module variables on this variant, so retrieve the generated password before first login rather than expecting to configure the username/email.
• FORUM_URL is NOT wired on GKE — a known gap. Flarum_Common only sets the FORUM_URL environment variable when its service_url input is non-empty, but Flarum_GKE's wiring never passes service_url into the Common module call. As a result FORUM_URL is absent by default on this variant and must be set manually via environment_variables after the external IP or custom domain is known — otherwise Flarum generates incorrect absolute links, asset URLs, and forum redirects.

---

2. Google Cloud Services & How to Explore Them

All commands assume you have run gcloud container clusters get-credentials <cluster> --region <region> --project <project> and that PROJECT, REGION, and NAMESPACE are set. The namespace and other identifiers are reported in the deployment Outputs.

A. GKE Autopilot — the Flarum workload

Flarum's pod is scheduled on Autopilot, which bills for the CPU/memory the pod actually requests. Because the workload is NFS-backed, updates use the Recreate strategy (a rolling update would run two pods against the same NFS assets volume and shared DB simultaneously).

• Console: Kubernetes Engine → Workloads → select the Flarum workload for pods, revisions, and events. Kubernetes Engine → Services & Ingress shows the external IP.
• CLI:

  kubectl get pods,svc -n "$NAMESPACE"
  kubectl logs -n "$NAMESPACE" deploy/<service-name> --tail=100
  kubectl describe pod -n "$NAMESPACE" -l app=<service-name>

See App_GKE for how Autopilot, scaling, and the workload type (Deployment vs StatefulSet) are managed.

B. Cloud SQL for MySQL 8.0

Flarum stores all forum data (discussions, posts, users, tags) in a managed Cloud SQL for MySQL 8.0 instance, with tables prefixed flarum_. Pods reach it through the Cloud SQL Auth Proxy sidecar on 127.0.0.1:3306; no public IP is exposed. On first deploy the db-init job creates the application database, user, and grants; the Flarum installer then creates the schema on first pod boot.

• Console: SQL → select the instance for connections, backups, flags, metrics.
• CLI:

  gcloud sql instances list --project "$PROJECT"
  gcloud sql instances describe <instance-name> --project "$PROJECT"
  gcloud sql connect <instance-name> --user=<db-user> --database=<db-name> --project "$PROJECT"

The instance name, database, user, and the Secret Manager secret holding the password are all in the Outputs. See App_GKE for the connection model, automated backups, and password rotation.

C. Cloud Storage & file persistence

A Cloud Storage bucket (suffix flarum-assets) is provisioned automatically and the workload service account is granted access, but it is not mounted into the pod by default — add an entry to gcs_volumes if you want to use it. Separately, Flarum's uploaded avatars and attachments live on NFS (Cloud Filestore) at /flarum/app/public/assets, shared across pods.

• Console: Cloud Storage → Buckets; Filestore → Instances.
• CLI:

  gcloud storage buckets list --project "$PROJECT" --filter="name~flarum-assets"
  gcloud filestore instances list --project "$PROJECT"
  kubectl get pvc -n "$NAMESPACE"

See App_GKE for CMEK options and GCS Fuse mounts.

D. Secret Manager

One Flarum secret is generated automatically and stored in Secret Manager: FLARUM_ADMIN_PASS (the first-run administrator password, ≥8 characters). The admin username and email are fixed at admin / admin@techequity.cloud and are not stored as secrets. The database password is managed separately by the foundation. On GKE, secrets are projected into pods via the Secret Store CSI driver.

• Console: Security → Secret Manager.
• CLI:

  gcloud secrets list --project "$PROJECT" --filter="name~flarum"
  gcloud secrets versions access latest --secret=<admin-password-secret-name> --project "$PROJECT"

See App_GKE for the Secret Store CSI integration and rotation.

E. Networking & ingress

By default the workload is exposed through an external Cloud Load Balancing IP (service_type = LoadBalancer, reserve_static_ip = true so the address survives redeploys). A custom domain with a Google-managed certificate can be enabled (enable_custom_domain = true by default, with no domains configured until you add one).

• Console: Network services → Load balancing; VPC network → IP addresses.
• CLI:

  kubectl get svc,ingress -n "$NAMESPACE"
  gcloud compute addresses list --project "$PROJECT"

See App_GKE for custom domains, Cloud CDN, and static IP details.

F. Cloud Logging & Monitoring

Pod stdout/stderr flow to Cloud Logging; GKE and Cloud SQL metrics flow to Cloud Monitoring. Optional uptime checks and alert policies are available.

• Console: Logging → Logs Explorer; Monitoring → Dashboards / Alerting.
• CLI:

  gcloud logging read 'resource.type="k8s_container" AND resource.labels.namespace_name="'"$NAMESPACE"'"' \
    --project "$PROJECT" --limit 50

---

3. Flarum Application Behaviour

• First-deploy database setup. The db-init job runs db-init.sh using mysql:8.0-debian. It connects to Cloud SQL (preferring the Unix socket under /cloudsql provided by the Auth Proxy sidecar, polling up to 30s for the socket to appear, and falling back to TCP against DB_IP/DB_HOST otherwise), idempotently creates the application database (CREATE DATABASE IF NOT EXISTS) and user (CREATE USER IF NOT EXISTS followed by an unconditional ALTER USER ... IDENTIFIED BY so the password always stays in sync) and grants (GRANT ALL PRIVILEGES ON <db>.* TO <user>@'%'), verifies the app user can connect, then gracefully shuts down the proxy sidecar via /quitquitquit. The job is safe to re-run (execute_on_apply = true, max_retries = 3).
• First-boot auto-install (no separate migration job). The mondedie/flarum image's own s6-overlay entrypoint runs the Flarum installer on first pod start, creating the schema in the empty database. The custom Dockerfile is an unmodified thin wrapper over the base image — it neither overrides ENTRYPOINT nor adds a migrate step.
• Admin account. The installer creates a first-run administrator whose username is admin and email is admin@techequity.cloud (fixed Flarum_Common defaults, not exposed as module variables) and whose password is the generated FLARUM_ADMIN_PASS secret. Retrieve it before first login.
• DB env-var wiring. Flarum_GKE's main.tf sets db_user_env_var_name = "DB_USER", db_password_env_var_name = "DB_PASS", and db_name_env_var_name = "DB_NAME" on the Foundation call — the exact env names the mondedie/flarum installer expects — so no alias entrypoint is needed. Flarum_Common additionally sets DB_PORT = "3306" and DB_PREF = "flarum_" directly in environment_variables, and overrides DB_HOST = "127.0.0.1" for the Auth Proxy sidecar.
• NFS-backed rollouts use Recreate. Updates terminate the old pod before starting the new one, avoiding two pods deadlocking on the shared NFS assets volume and DB locks.
• FORUM_URL must be set manually. It is never populated by default on GKE (see the Overview gap above) — set it via environment_variables once the LoadBalancer IP or custom domain is known:

  kubectl patch deploy <service-name> -n "$NAMESPACE" \
    -p '{"spec":{"template":{"spec":{"containers":[{"name":"flarum","env":[
      {"name":"FORUM_URL","value":"https://forum.example.com"}]}]}}}}'

• Health paths. The application-specific startup_probe defaults to a TCP check on the container port (8888) with a generous failure_threshold = 20 at period_seconds = 15 (five minutes of grace) to accommodate the first-boot installer. The application-specific liveness_probe defaults to HTTP GET / with an initial_delay_seconds = 300 (five minutes) before the first check — again to avoid killing the pod mid-install.
• Redis (optional). enable_redis defaults to false. When enabled without an explicit redis_host, plan-time validation requires enable_nfs = true (the shared NFS server also hosts Redis, and the Foundation injects its IP as REDIS_HOST) — otherwise the apply fails with a clear error rather than deploying a forum that can't reach Redis.
• Inspect the init job and running config:

  kubectl get jobs -n "$NAMESPACE"
  kubectl logs -n "$NAMESPACE" job/<db-init-job-name>
  kubectl exec -n "$NAMESPACE" deploy/<service-name> -- env | grep -E '^(DB_|FORUM_URL|FLARUM_ADMIN)'

---

4. Configuration Variables

Variables are grouped exactly as they appear on the deployment platform. Only settings specific to or notable for Flarum are listed; every other input is inherited from App_GKE with its standard behaviour and defaults.

Group 3 — Application Identity

Variable	Default	Description
application_name	flarum	Base name for resources. Do not change after first deploy.
application_version	latest	mondedie/flarum image tag, mapped via the FLARUM_VERSION build ARG. latest resolves to the image's own stable (production-recommended) tag at build time.

Group 4 — Runtime & Scaling

Variable	Default	Description
cpu_limit	1000m	1 vCPU for nginx + php-fpm.
memory_limit	2Gi	Minimum 512Mi enforced by the gen2 floor concept on Cloud Run; on GKE, size for PHP workload.
php_memory_limit	512M	PHP memory limit; raise for heavy extensions or large forums.
upload_max_filesize / post_max_size	64M	Max upload / POST size; upload_max_filesize must be ≤ post_max_size (enforced at plan time).
min_instance_count	1	Keep at 1 to keep the forum reachable.
max_instance_count	1	Keep at 1 unless multi-pod NFS/DB sharing is verified; plan-time validation requires min_instance_count ≤ max_instance_count.
container_port	8888	mondedie/flarum serves nginx + php-fpm on 8888.
enable_cloudsql_volume	true	Auth Proxy sidecar (loopback) — required on GKE while database_type != "NONE" (enforced at plan time).
container_image_source	custom	Thin build FROM mondedie/flarum, re-tagged via the FLARUM_VERSION build ARG.

Group 6 — GKE Backend & Cluster

Variable	Default	Description
service_type	LoadBalancer	External IP for the Flarum UI.
workload_type	null → Deployment	Deployment (NFS-backed, Recreate strategy).
session_affinity	ClientIP	Sticky routing so a client reaches the same pod.

Group 10 — Observability & Health

Variable	Default	Description
startup_probe	{ type = "TCP", path = "/", initial_delay_seconds = 30, period_seconds = 15, failure_threshold = 20 }	Flarum-specific startup probe — TCP port check with a five-minute grace window for the first-boot installer.
liveness_probe	{ type = "HTTP", path = "/", initial_delay_seconds = 300, period_seconds = 60, failure_threshold = 3 }	Flarum-specific liveness probe — five-minute initial delay to avoid killing the pod mid-install.

Group 13 — Filesystem (NFS)

Variable	Default	Description
enable_nfs	true	NFS is on by default so uploaded avatars/attachments persist and are shared.
nfs_mount_path	/flarum/app/public/assets	Where Flarum stores user-uploaded assets.

Group 15 — Redis

Variable	Default	Description
enable_redis	false	Optional object cache backend.
redis_host / redis_port	"" / 6379	When redis_host is left empty, requires enable_nfs = true (validated at plan time) so the Foundation-injected shared Redis IP can be used.

Group 16 — Database Backend

Variable	Default	Description
database_type	null → MYSQL_8_0	Flarum_Common hardcodes MySQL 8.0; this variable only matters if explicitly overridden.
application_database_name	flarum	Database name. Immutable after first deploy.
application_database_user	flarum	Application database user; password auto-generated in Secret Manager.

Group 16 — Cloud Storage

Variable	Default	Description
storage_buckets	[{ name_suffix = "data" }]	User-configurable extra buckets — created alongside (not instead of) the Common-supplied flarum-assets bucket.
gcs_volumes	[]	No bucket is mounted into the pod by default; add an entry here to actually use flarum-assets or data as a filesystem mount.

Group 19 — Custom Domain, Static IP & Networking

Variable	Default	Description
reserve_static_ip	true	Stable external IP across redeploys.
enable_custom_domain	true	Provisions an Ingress; application_domains is empty by default.
application_domains	[]	Custom hostnames + managed certificate.

All other inputs follow standard App_GKE behaviour.

---

5. Outputs

These values are returned on a successful deployment and are the quickest way to locate and explore the running resources.

Output	Description
service_name	Kubernetes Service name.
namespace	Namespace the workload runs in.
service_cluster_ip	In-cluster ClusterIP.
stage_service_cluster_ips	Map of ClusterIPs for stage-specific services.
service_external_ip	External LoadBalancer IP (when a static IP is reserved).
service_url	URL to reach Flarum.
database_instance_name	Cloud SQL instance name.
database_name / database_user	Application database name / user.
database_password_secret	Secret Manager secret holding the DB password.
database_host / database_port	DB endpoint (127.0.0.1 via the Auth Proxy) / port.
storage_buckets	Created Cloud Storage buckets.
network_name / network_exists / regions	VPC network, presence, available regions.
container_image / container_registry	Deployed image and Artifact Registry repo.
monitoring_enabled / monitoring_notification_channels	Monitoring status and channels.
initialization_jobs / db_import_job	Names of the setup (db-init) and (optional) import jobs.
deployment_id / tenant_id / resource_prefix	Naming identifiers.
project_id / project_number	Project identifiers.
cicd_enabled / cicd_configuration	CI/CD status and details (repo, trigger, registry).
github_repository_url / github_repository_owner / github_repository_name	CI/CD GitHub details.
artifact_registry_repository / cloudbuild_trigger_name / cloudbuild_trigger_id	Registry and build trigger.
kubernetes_ready	Whether the cluster/workload is ready.
vpc_sc_enabled / vpc_sc_perimeter_name / vpc_sc_dry_run_mode	VPC-SC status.
audit_logging_enabled / artifact_registry_cmek_enabled	Audit logging and CMEK status.

---

6. Configuration Pitfalls & Sensible Defaults

Risk: Critical (data loss / outage / security) — High (service degraded) — Medium (cost or partial degradation) — Low (minor).

Inherited plan-time validation. This module passes its configuration through the App_GKE foundation engine, which validates values and combinations at plan time — a StatefulSet forced alongside a stateless setting, IAP with no authorized identities, quota_memory_* given as bare integers, an out-of-range container_port/ backup_retention_days. Flarum additionally has its own preconditions (min_instance_count ≤ max_instance_count, enable_redis requiring redis_host or enable_nfs, IAP requiring both OAuth credentials, enable_cloudsql_volume requiring a real database engine, and upload_max_filesize ≤ post_max_size). Invalid configuration fails the plan with a clear, named error before any resource is created, so most mistakes below are caught up front rather than at apply or runtime.

Setting	Sensible value	Risk	Consequence if wrong
database_type	null (→ MYSQL_8_0)	Critical	Selecting a non-MySQL engine breaks the installer and every query.
application_database_name / application_database_user	Set once	Critical	Immutable after first deploy; renaming recreates the DB/user and orphans all data.
FORUM_URL (not preset — set manually)	External LoadBalancer/domain URL	High	Left unset, Flarum generates broken absolute links, asset URLs, and redirects; this variant does not auto-inject it.
enable_nfs	true	High	Disabling it makes uploaded avatars/attachments ephemeral — lost on pod recreation.
enable_cloudsql_volume	true (with a real database_type)	High	The Auth Proxy sidecar on 127.0.0.1:3306 is required for DB connectivity on GKE; enabling it with database_type = "NONE" fails plan-time validation.
max_instance_count	1	High	Scaling beyond 1 without verified shared-storage/lock behaviour risks split sessions and NFS/DB lock contention.
session_affinity	ClientIP	High	Without stickiness, requests bounce between pods and disrupt authenticated sessions.
enable_redis + redis_host	Leave redis_host empty only if enable_nfs = true	High	Violating this combination fails plan-time validation rather than deploying a forum that can't reach Redis.
memory_limit	2Gi	High	Undersizing PHP-FPM under load risks OOM kills.
quota_memory_requests / _limits	binary units (4Gi, 8192Mi)	Critical	Bare integers are treated as bytes and block all pod scheduling in the namespace.
FLARUM_ADMIN_PASS (auto-generated)	Retrieve before first login	Medium	Not knowing it locks you out of the first administrator account until reset via the DB.
gcs_volumes (empty by default)	Add an entry to actually use flarum-assets	Medium	The flarum-assets bucket is billed and created but does nothing unless explicitly mounted.
reserve_static_ip	true	Medium	Without it, the external IP can change across redeploys, breaking DNS and FORUM_URL.
backup_retention_days	7 (raise for prod)	Medium	Too short for compliance retention.

---

For the foundation behaviour referenced throughout — IAM and Workload Identity, autoscaling, ingress and certificates, CI/CD, Cloud Armor, IAP, Binary Authorization, VPC-SC, backups, and image mirroring — see App_GKE. Flarum-specific application configuration shared with the Cloud Run variant is described in Flarum_Common.
