OpenSourcePOS on Google Cloud Run

Open Source Point of Sale (OSPOS) is a free, open-source, web-based retail point of sale: ring up sales, manage items, customers and suppliers, print receipts, and run sales and inventory reports from a browser. This module deploys OpenSourcePOS on Cloud Run v2 on top of the App_CloudRun foundation, which provisions and manages the shared Google Cloud infrastructure.

This guide focuses on the cloud services OpenSourcePOS uses and how to explore and operate them from the Google Cloud Console and the command line. For the mechanics common to every Cloud Run application — service identity, ingress and load balancing, scaling and concurrency, CI/CD, Cloud Armor, IAP, Binary Authorization, VPC Service Controls, backups, and the deployment lifecycle — refer to the App_CloudRun foundation guide rather than repeating them here.

---

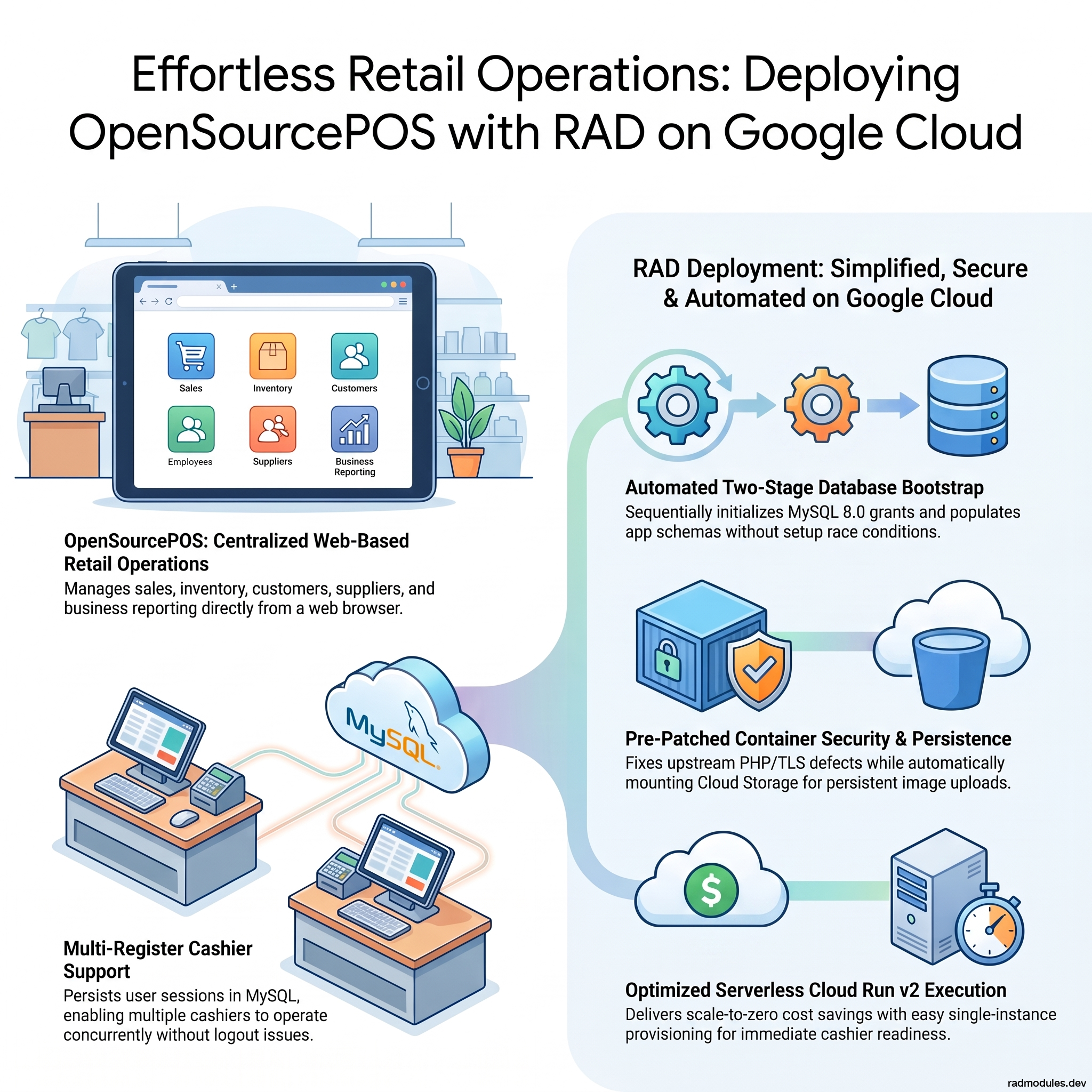

1. Overview

OpenSourcePOS runs as a PHP / CodeIgniter 4 container (a single Apache process on port 80) on Cloud Run v2. The deployment wires together a focused set of Google Cloud services:

Capability	Google Cloud service	Notes
Compute	Cloud Run v2	Apache + PHP service, 1 vCPU / 2 GiB by default; scale-to-zero by default
Database	Cloud SQL for MySQL 8.0	Required — OpenSourcePOS_Common fixes the engine. Holds all POS data and user sessions
Object storage	Cloud Storage	A storage bucket, GCS-Fuse-mounted at /app/public/uploads for item pictures and the company logo; plus a generic data bucket the app does not use
Secrets	Secret Manager	Database password only — OpenSourcePOS has no application signing secret
Ingress	Cloud Run URL / Cloud Load Balancing	Default run.app URL; optional external HTTPS load balancer + custom domain

Sensible defaults worth knowing up front:

• MySQL 8.0 is mandatory. The engine is fixed by OpenSourcePOS_Common.
• enable_cloudsql_volume = false. OpenSourcePOS reads a plain TCP host (MYSQL_HOST_NAME), so the service connects to the instance's private IP directly. There is no port override in OpenSourcePOS — the port is always 3306.
• Scale-to-zero is the shipped default (min_instance_count = 0, max_instance_count = 1). For a till in daily use, set min_instance_count = 1: a cashier will not wait through a cold start.
• Multiple instances are safe. Sessions live in MySQL (DatabaseHandler, table ospos_sessions) and uploads live on the shared GCS bucket, so raising max_instance_count does not log cashiers out or lose pictures.
• Uploads persist on GCS. enable_gcs_storage_volume = true mounts the storage bucket at /app/public/uploads. The upstream image declares no volume there, so without the mount uploaded images would be lost on every cold start.
• NFS is off and not needed (enable_nfs = false).
• The version is pinned (application_version = "3.4.1"). Never use latest.
• The uptime check is disabled by default (uptime_check_config.enabled = false).

---

2. Google Cloud Services & How to Explore Them

All commands assume PROJECT and REGION are set. Service and resource names are reported in the deployment Outputs.

A. Cloud Run — the OpenSourcePOS service

OpenSourcePOS runs as a Cloud Run v2 service that autoscales by request load between the minimum and maximum instance counts. Each deployment creates an immutable revision; traffic can be split across revisions for safe rollouts.

• Console: Cloud Run → select the service for revisions, traffic, logs, and metrics.
• CLI:

  gcloud run services list --project "$PROJECT" --region "$REGION"
  gcloud run services describe <service-name> --project "$PROJECT" --region "$REGION"
  gcloud run revisions list --service <service-name> --project "$PROJECT" --region "$REGION"

See App_CloudRun for scaling, concurrency, execution environment, and traffic splitting.

B. Cloud SQL for MySQL 8.0

OpenSourcePOS stores everything — sales, items, customers, suppliers, receivings, configuration and sessions — in a managed Cloud SQL for MySQL 8.0 instance. The service connects over the instance's private IP via TCP. On first deploy a db-init job creates the application database and user, followed by schema-load, which loads the schema that ships inside the OpenSourcePOS image.

• Console: SQL → select the instance for connections, backups, flags, metrics.
• CLI:

  gcloud sql instances list --project "$PROJECT"
  gcloud sql instances describe <instance-name> --project "$PROJECT"
  gcloud sql connect <instance-name> --user=<db-user> --database=<db-name> --project "$PROJECT"

The instance name, database, user, and password secret are in the Outputs. See App_CloudRun for the connection model, backups, and password rotation.

C. Cloud Storage

Two application buckets are provisioned:

• storage — added by OpenSourcePOS_Common and mounted through GCS Fuse at /app/public/uploads, where OpenSourcePOS writes item pictures and the company logo (only while enable_gcs_storage_volume = true).
• data — the Foundation's generic default from storage_buckets; not read or written by OpenSourcePOS.

The Foundation also creates a backups bucket for the scheduled backup job.

• Console: Cloud Storage → Buckets.
• CLI:

  gcloud storage buckets list --project "$PROJECT"
  gcloud storage ls gs://<storage-bucket-name>/

D. Secret Manager

OpenSourcePOS has no application-level secret: OpenSourcePOS_Common returns no secrets of its own. The only credential is the database password, which the Foundation generates and stores in Secret Manager (its name is the database_password_secret output).

• Console: Security → Secret Manager.
• CLI:

  gcloud secrets list --project "$PROJECT"
  gcloud secrets versions access latest --secret=<database-password-secret> --project "$PROJECT"

See App_CloudRun for injection and rotation details.

E. Networking & ingress

The service is reachable at its run.app URL by default. An external HTTPS load balancer with a custom domain, Cloud CDN, and Cloud Armor can be layered on.

• Console: Cloud Run (service URL); Network services → Load balancing.
• CLI:

  gcloud run services describe <service-name> --region "$REGION" --format='value(status.url)'
  gcloud compute addresses list --project "$PROJECT"

See App_CloudRun.

F. Cloud Logging & Monitoring

Container logs flow to Cloud Logging; Cloud Run and Cloud SQL metrics flow to Cloud Monitoring. The uptime check is off by default and alert policies are empty until configured.

• Console: Logging → Logs Explorer; Monitoring → Dashboards / Alerting.
• CLI:

  gcloud run services logs read <service-name> --project "$PROJECT" --region "$REGION" --limit 50

---

3. OpenSourcePOS Application Behaviour

• Two-stage init chain. db-init (mysql:8.0-debian, max_retries = 3) creates the application user and database and grants privileges, then verifies the app user can connect. schema-load depends on db-init and runs on the app image (image = null), because the schema file ships only inside jekkos/opensourcepos at /app/app/Database/database.sql. It counts the tables in the database first: if any exist it exits without changes, and after loading it fails if the database still has no tables. Both jobs run on apply and are safe to re-run.
• Why a job, not the entrypoint. Cloud Run can cold-start several instances at once; two of them racing the same CREATE TABLE set would produce a half-loaded schema with no error. A job runs once, before the service serves.
• Startup log line. On every start the wrapper prints [startup] OpenSourcePOS pointed at <ip>:3306/<db> as <user>. If any of DB_IP, DB_USER, DB_PASSWORD or DB_NAME is empty it instead prints a FATAL: message and exits — OpenSourcePOS would otherwise silently fall back to the credentials baked into the image's .env and run against the wrong database.
• Image patches. The wrapper image writes a real date.timezone (UTC) into PHP's timezone.ini (upstream ships it empty), sets CI_ENVIRONMENT = production (upstream's development renders stack traces and the debug toolbar to the browser), and adds an X-Forwarded-Proto guard to the www-stripping rewrite in public/.htaccess, which would otherwise 301 https://www.<domain> to http:// on a custom domain.
• Health checks. Startup and liveness probes both GET /, the document root where OpenSourcePOS serves its login page — the same path the upstream image's own HEALTHCHECK uses.

  curl -s -o /dev/null -w "%{http_code}\n" "$SERVICE_URL/"

• Administrator account. The administrator is created by the bundled schema with the username admin; the module does not create or change it, and the admin_email input is not applied. Change the administrator password after first login.
• Inspect job execution:

  gcloud run jobs list --project "$PROJECT" --region "$REGION"
  gcloud run jobs executions list --job <job-name> --project "$PROJECT" --region "$REGION"

---

4. Configuration Variables

Variables are grouped exactly as they appear on the deployment platform. Only settings specific to or notable for OpenSourcePOS are listed; every other input is inherited from App_CloudRun with its standard behaviour.

Group 1 — Project & Identity

Variable	Default	Description
project_id	(required)	Target Google Cloud project.
tenant_id	demo	Short suffix (1–7 lowercase alphanumerics) that makes resource names unique per environment.
region	us-central1	Region for the service and regional resources.

Group 2 — Deployment Environment

Variable	Default	Description
support_users	[]	Emails granted project access and monitoring alerts.
resource_labels	{}	Labels applied to all resources.

Group 3 — Application Identity

Variable	Default	Description
application_name	ospos	Base name for resources. Do not change after first deploy.
display_name	OpenSourcePOS	Human-readable name shown in the Console.
application_version	3.4.1	jekkos/opensourcepos tag, passed to the build as OSPOS_VERSION. This variant's default is the one that takes effect. Pin an exact release.
php_memory_limit	512M	Injected as the plain env var memory_limit.
admin_email	admin@example.com	Not applied — the administrator comes from the bundled schema.
enable_gcs_storage_volume	true	Mount the storage bucket at /app/public/uploads (the variable's own description names /opt/ospos/var/data; the mounted path is /app/public/uploads).

Group 4 — Runtime & Scaling

Variable	Default	Description
deploy_application	true	Set false to provision infrastructure only.
container_image_source	custom	Builds the wrapper image via Cloud Build. prebuilt skips the wrapper — no MYSQL_* mapping, no image patches.
cpu_limit	1000m	CPU per instance.
memory_limit	2Gi	Memory per instance.
min_instance_count	0	0 enables scale-to-zero; use 1 for a till in use.
max_instance_count	1	Autoscaling upper bound. Multi-instance is safe.
container_port	80	Apache listens on port 80.
execution_environment	gen2	Required for the GCS Fuse uploads mount.
timeout_seconds	300	Request timeout; raise for large imports or reports.
enable_cloudsql_volume	false	Private-IP TCP instead of the Auth Proxy socket.
enable_image_mirroring	true	Mirror the image into Artifact Registry.
container_protocol	http1	HTTP/1.1.

Group 5 — Access & Ingress Control

Variable	Default	Description
ingress_settings	all	Public ingress by default.
vpc_egress_setting	PRIVATE_RANGES_ONLY	Route only RFC 1918 traffic via VPC.
enable_iap	false	Require Google sign-in before the POS login page.
iap_authorized_users / iap_authorized_groups	[]	Who may access through IAP.

Group 6 — Environment Variables & Secrets

Variable	Default	Description
environment_variables	{}	Extra non-secret settings. Do not set the MYSQL_* connection variables here — the wrapper exports them from DB_* at start.
secret_environment_variables	{}	Map of env var → Secret Manager secret name.
protect_sensitive_environment_variables	true	Credential-named keys in environment_variables are moved to Secret Manager.
secret_propagation_delay	30	Seconds to wait after secret creation before proceeding.
secret_rotation_period	2592000s	Secret Manager rotation notification frequency.

Group 7 — Backup & Restore

Variable	Default	Description
backup_schedule	0 2 * * *	Automated backup cron (UTC).
backup_retention_days	7	Lifecycle age applied to the backups bucket.
enable_backup_import / backup_source / backup_uri / backup_format	restore options	Restore from a backup on deploy.

Group 8 — CI/CD & Binary Authorization

Standard App_CloudRun Cloud Build / Cloud Deploy integration — see App_CloudRun. Key inputs: enable_cicd_trigger, github_repository_url, github_token, enable_cloud_deploy, enable_binary_authorization.

Group 9 — Custom SQL Scripts & NFS Instance

enable_custom_sql_scripts, custom_sql_scripts_bucket, custom_sql_scripts_path, custom_sql_scripts_use_root — run SQL from a GCS bucket after provisioning. This group also holds nfs_instance_name / nfs_instance_base_name, relevant only if enable_nfs is turned on. See App_CloudRun.

Group 10 — Load Balancer, CDN & Image Retention

Variable	Default	Description
enable_cloud_armor	false	Provision Global HTTPS LB + Cloud Armor WAF.
admin_ip_ranges	[]	CIDR allowlist for administrative access.
application_domains	[]	Custom domain names for the HTTPS LB.
enable_cdn	false	Enable Cloud CDN on the HTTPS LB backend.
max_images_to_retain / delete_untagged_images / image_retention_days	7 / true / 30	Artifact Registry cleanup policy.

Group 11 — Storage & Filesystem

Variable	Default	Description
create_cloud_storage	true	Create the module's buckets.
storage_buckets	[{ name_suffix = "data" }]	Generic Foundation bucket; not used by OpenSourcePOS.
enable_nfs	false	Not needed — uploads persist on GCS.
nfs_mount_path	/var/lib/ospos	Only used if enable_nfs = true; nothing in the image writes there.
gcs_volumes	[]	Extra GCS Fuse mounts, merged with the storage uploads volume.
manage_storage_kms_iam / enable_artifact_registry_cmek	false	CMEK options.

Group 12 — Database Backend

Variable	Default	Description
database_type	MYSQL_8_0	Fixed by OpenSourcePOS_Common.
db_name / db_user	ospos	Tenant-prefixed at deploy time. Immutable after first deploy.
database_password_length	32	Generated password length (16–64). Do not change on a running deployment.
enable_auto_password_rotation	false	Automated password rotation.
db_host_env_var_name	DB_IP	Keep as DB_IP — the wrapper entrypoint reads it.

Group 13 — Jobs & Scheduled Tasks

Variable	Default	Description
initialization_jobs	[]	Leave empty to use the built-in db-init → schema-load chain. Supplying any job replaces both.
cron_jobs	[]	No scheduled tasks by default; OpenSourcePOS needs none.

Group 14 — Observability & Health

Variable	Default	Description
startup_probe	HTTP GET /, 30s delay, 15s period, 20 retries	Waits for Apache to serve the login page.
liveness_probe	HTTP GET /, 60s delay, 30s period, 3 retries	Document root.
uptime_check_config	{ enabled = false, path = "/" }	Enable for production monitoring.
alert_policies	[]	Metric alert policies.

Group 21 — Redis

Variable	Default	Description
enable_redis	false	OpenSourcePOS has no Redis integration; leave off.
redis_host / redis_port / redis_auth	"" / 6379 / ""	Unused by OpenSourcePOS.

Group 22 — VPC Service Controls & Audit Logging

Variable	Default	Description
enable_vpc_sc	false	Enforce a VPC-SC perimeter.
enable_audit_logging	false	Detailed Cloud Audit Logs.

---

5. Outputs

Returned on a successful deployment — the quickest way to locate and explore the running resources.

Output	Description
service_name	Cloud Run service name.
service_url	Default run.app URL of the service.
service_location	Region the service runs in.
stage_services	Cloud Deploy stage services (when enabled).
load_balancer_ip / load_balancer_url	External HTTPS load balancer IP / URL (when enabled).
database_instance_name	Cloud SQL instance name.
database_name / database_user	Application database name / user.
database_password_secret	Secret Manager secret holding the DB password.
database_host / database_port	DB endpoint (sensitive) / port.
storage_buckets	Created Cloud Storage buckets.
network_name / network_exists / regions	VPC network, presence, regions.
container_image / container_registry	Deployed image and Artifact Registry repo.
monitoring_enabled / monitoring_notification_channels / uptime_check_names	Monitoring status, channels, uptime checks.
initialization_jobs	Names of the setup jobs (db-init, schema-load).
deployment_id / tenant_id / resource_prefix	Naming identifiers.
project_id / project_number	Project identifiers.
cicd_enabled / github_repository_url / github_repository_owner / github_repository_name / cicd_configuration	CI/CD status and details.
artifact_registry_repository / cloudbuild_trigger_name / cloudbuild_trigger_id	Registry and build trigger.
vpc_sc_enabled / vpc_sc_perimeter_name / vpc_sc_dry_run_mode	VPC-SC status.
audit_logging_enabled / artifact_registry_cmek_enabled	Audit logging and CMEK status.

---

6. Configuration Pitfalls & Sensible Defaults

Risk: Critical (data loss / outage / security) — High (service degraded) — Medium (cost or partial degradation) — Low (minor).

Inherited plan-time validation. This module passes its configuration through the App_CloudRun foundation engine, which validates values and combinations at plan time. Invalid configuration fails the plan with a clear, named error before any resource is created, so most mistakes below are caught up front rather than at apply or runtime.

Setting	Sensible value	Risk	Consequence if wrong
application_version	An exact release (default 3.4.1)	Critical	latest resolves to an image with a different layout; the module's history records it failing to deploy. A floating tag also rebuilds under an unchanged string, so no new revision rolls out and the running container silently keeps the old image.
container_image_source	custom	Critical	prebuilt skips the wrapper: no DB_* → MYSQL_* mapping (OpenSourcePOS then falls back to the baked localhost credentials and cannot reach Cloud SQL), and none of the timezone / CI_ENVIRONMENT / TLS-rewrite patches.
db_host_env_var_name	DB_IP	Critical	The wrapper entrypoint reads DB_IP; it refuses to start if that is empty.
db_name / db_user	Set once	Critical	Immutable after first deploy; renaming recreates the DB/user and loses all sales data.
database_password_length	Leave at 32 after deploy	High	Changing it on a running deployment writes a new password secret while the database keeps the old one; connections fail until the db-init job is re-run.
enable_gcs_storage_volume	true	High	Without the mount, item pictures and the company logo are written to the container's ephemeral filesystem and lost on every cold start or new revision.
initialization_jobs	[]	High	Supplying any job replaces the whole default chain, including schema-load; the app then starts against an empty database.
min_instance_count	1 for a till in use	Medium	Scale-to-zero (0) makes the first sale after idle wait for a cold start.
Administrator password (bundled schema, user admin)	Change after first login	High	The account is created by the upstream schema, not by this module, and is not randomised.
enable_cloud_armor / enable_iap	Enable for production	Medium	The POS login page is publicly reachable by default.
enable_backup_import	false unless restoring	Critical	Enabling without a valid backup_uri fails the import job.
enable_redis / enable_nfs	false	Low / cost	OpenSourcePOS uses neither; enabling them provisions resources nothing reads.

---

For the foundation behaviour referenced throughout — service identity, scaling and concurrency, ingress and load balancing, CI/CD, Cloud Armor, IAP, Binary Authorization, VPC-SC, backups, and image mirroring — see App_CloudRun. OpenSourcePOS-specific application configuration is described in OpenSourcePOS_Common.

Related guides

• Hands-on lab: OpenSourcePOS on Cloud Run — deploy it step by step, with the console screens and commands at each stage.
• OpenSourcePOS Common — Shared Application Configuration — the application-layer configuration this module builds on.
