Matomo on GKE Autopilot

Matomo is the leading open-source web analytics platform and a privacy-focused, self-hosted alternative to Google Analytics — no data sampling, GDPR/CCPA-friendly tracking, heatmaps, session recordings, A/B testing, and funnel analytics, with 100% ownership of the collected data. This module deploys Matomo on GKE Autopilot on top of the App_GKE foundation, which provisions and manages the shared Google Cloud and Kubernetes infrastructure.

This guide focuses on the cloud services Matomo uses and how to explore and operate them from the Google Cloud Console and the command line. For the mechanics that are common to every GKE application — Workload Identity, ingress, autoscaling, CI/CD, Cloud Armor, IAP, Binary Authorization, VPC Service Controls, backups, and the deployment lifecycle — refer to the App_GKE foundation guide rather than repeating them here.

---

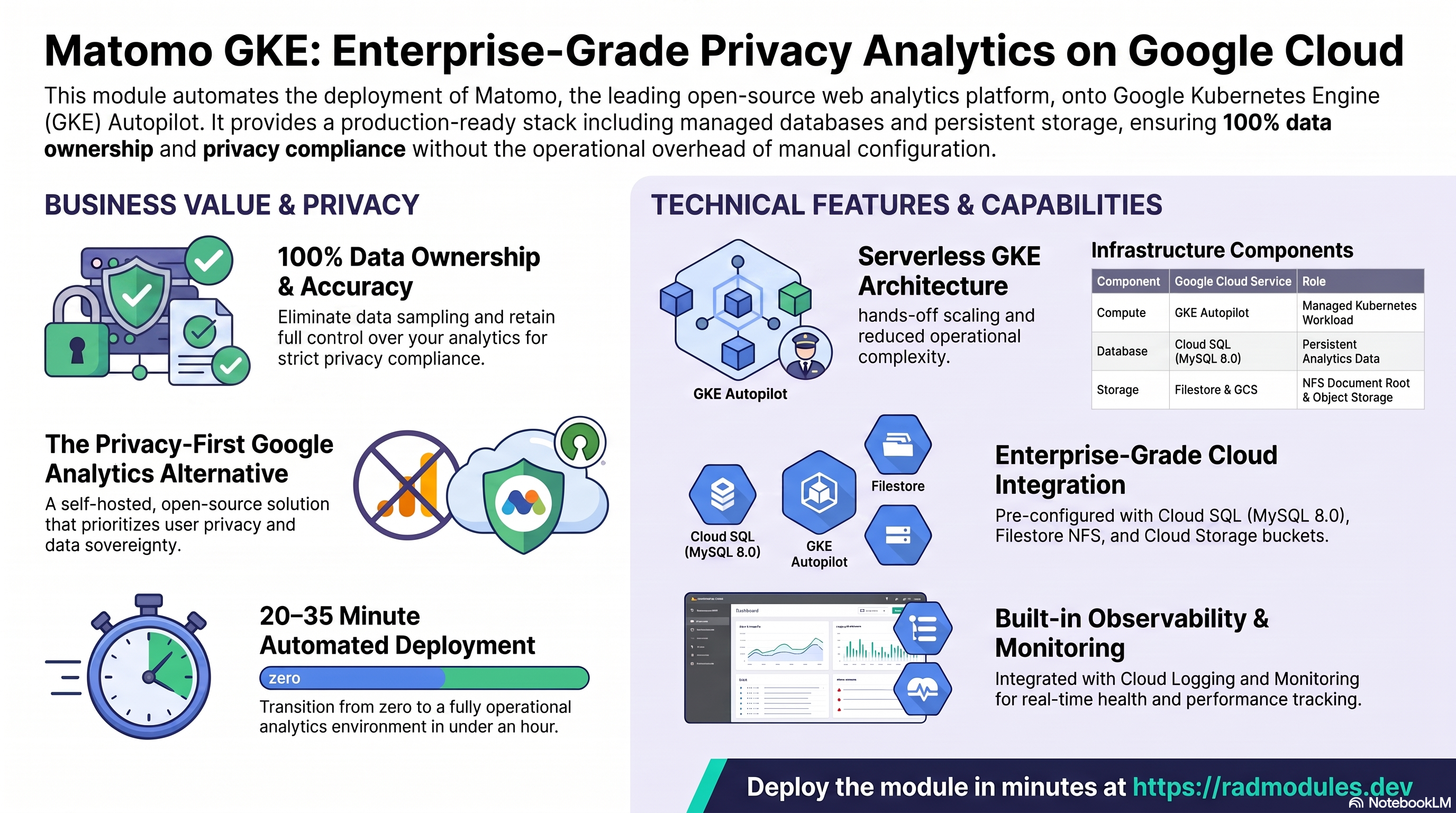

1. Overview

Matomo runs as a single PHP/Apache web workload built from the official prebuilt image. The deployment wires together a focused set of Google Cloud services:

Capability	Google Cloud service	Notes
Compute	GKE Autopilot	PHP/Apache pods (matomo:<application_version>) on port 80, 1 vCPU / 2 GiB by default
Database	Cloud SQL for MySQL 8.0	Required — the engine is fixed at MYSQL_8_0
File persistence	Cloud Filestore (NFS)	Matomo's document root (/var/www/html) persists here, shared across pods
Cache	Redis (NFS-VM co-hosted or Memorystore)	Optional object cache; connectivity only — see Section 6
Object storage	Cloud Storage	A data bucket provisioned automatically
Secrets	Secret Manager	Auto-generated Cloud SQL application-user password only
Ingress	Cloud Load Balancing	External LoadBalancer with a reserved static IP; optional custom domain + managed certificate

Sensible defaults worth knowing up front:

• MySQL 8.0 is mandatory. The database engine is fixed by the shared application layer (Matomo_Common hard-codes database_type = "MYSQL_8_0"); other engines are not supported.
• The prebuilt official image is used by default. container_image_source = "prebuilt" deploys matomo:<application_version> (default 5-apache) directly — no Cloud Build step. The image is mirrored into Artifact Registry (enable_image_mirroring = true) to avoid Docker Hub rate limits.
• Cloud SQL is reached via the Auth Proxy sidecar on loopback. GKE injects enable_cloudsql_volume = true by default; a cloud-sql-proxy sidecar listens on 127.0.0.1:3306, and the platform maps the deployment-scoped DB credentials onto MATOMO_DATABASE_HOST/USERNAME/DBNAME/PASSWORD — the exact env vars Matomo's EnvironmentVariables plugin reads to pre-fill the web installer's database screen.
• NFS is enabled by default (enable_nfs = true, mounted at /var/www/html), persisting Matomo's config (config.ini.php), installed plugins, and generated assets. The official image's entrypoint populates an empty volume from /usr/src/matomo on first start.
• Single replica by default. min_instance_count = 1, max_instance_count = 1. session_affinity = ClientIP keeps a client's requests on the same pod; the NFS-backed workload deploys with the Recreate update strategy so a rolling update never runs two pods against the same NFS volume and shared DB simultaneously.
• No application secrets are auto-generated. Unlike apps that mint an admin-password or instance-salt secret, Matomo's only managed secret is the Cloud SQL application-user password. The Matomo super-user account is created interactively through the web installer on first browse — there is no init job that provisions it.
• db-init creates only the empty database + user; the web installer does the rest. There is no headless schema-migration job — Matomo's own installer wizard, reached at the service URL, creates the schema and the first admin account.
• Redis connectivity is wired but not auto-consumed. enable_redis = true by default injects REDIS_HOST/REDIS_PORT into the pod, but nothing in this module edits Matomo's config.ini.php [Cache] backend — using Redis as Matomo's object cache still requires manual post-deploy configuration.

---

2. Google Cloud Services & How to Explore Them

All commands assume you have run gcloud container clusters get-credentials <cluster> --region "$REGION" --project "$PROJECT" and that PROJECT, REGION, and NAMESPACE are set. The namespace and other identifiers are reported in the deployment Outputs.

A. GKE Autopilot — the Matomo workload

Matomo pods are scheduled on Autopilot, which bills for the CPU/memory the pods actually request. Because the workload is NFS-backed, the Deployment uses the Recreate strategy (a rolling update would run two pods against the same NFS volume and shared DB and deadlock).

• Console: Kubernetes Engine → Workloads → select the Matomo workload for pods, revisions, and events. Kubernetes Engine → Services & Ingress shows the external IP.
• CLI:

  kubectl get pods,svc -n "$NAMESPACE"
  kubectl logs -n "$NAMESPACE" deploy/<service-name> --tail=100
  kubectl describe pod -n "$NAMESPACE" -l app=<service-name>

See App_GKE for how Autopilot, scaling, and the workload type (Deployment vs StatefulSet) are managed.

B. Cloud SQL for MySQL 8.0

Matomo stores all analytics data (sites, visits, log tables, reports, users) in a managed Cloud SQL for MySQL 8.0 instance. Pods reach it through the Cloud SQL Auth Proxy sidecar on 127.0.0.1:3306; no public IP is exposed. On first deploy the db-init job creates the application database, user, and grants; Matomo's own web installer then creates the schema.

• Console: SQL → select the instance for connections, backups, flags, metrics.
• CLI:

  gcloud sql instances list --project "$PROJECT"
  gcloud sql instances describe <instance-name> --project "$PROJECT"
  gcloud sql connect <instance-name> --user=<db-user> --database=<db-name> --project "$PROJECT"

The instance name, database, user, and the Secret Manager secret holding the password are all in the Outputs. See App_GKE for the connection model, automated backups, and password rotation.

C. Cloud Storage & file persistence

A dedicated Cloud Storage bucket (default suffix data) is provisioned automatically and the workload service account is granted access. Separately, Matomo's document root lives on NFS (Cloud Filestore) at /var/www/html, shared across pods — config, plugins, and generated report assets persist there across pod restarts.

• Console: Cloud Storage → Buckets; Filestore → Instances.
• CLI:

  gcloud storage buckets list --project "$PROJECT" --filter="name~-data"
  gcloud filestore instances list --project "$PROJECT"
  kubectl get pvc -n "$NAMESPACE"

See App_GKE for CMEK options and GCS Fuse mounts.

D. Secret Manager

The only application secret Matomo consumes is the Cloud SQL application-user password, generated and managed by the foundation's shared secrets module (no Matomo-specific admin-password or salt secret is minted). On GKE, secrets are projected into pods via the Secret Store CSI driver.

• Console: Security → Secret Manager.
• CLI:

  gcloud secrets list --project "$PROJECT" --filter="name~matomo"
  gcloud secrets versions access latest --secret=<db-password-secret-name> --project "$PROJECT"

See App_GKE for the Secret Store CSI integration and rotation.

E. Networking & ingress

By default the workload is exposed through an external Cloud Load Balancing IP (service_type = LoadBalancer, reserve_static_ip = true so the address survives redeploys). A custom domain with a Google-managed certificate can be enabled.

• Console: Network services → Load balancing; VPC network → IP addresses.
• CLI:

  kubectl get svc,ingress -n "$NAMESPACE"
  gcloud compute addresses list --project "$PROJECT"

See App_GKE for custom domains, Cloud CDN, and static IP details.

F. Cloud Logging & Monitoring

Pod stdout/stderr flow to Cloud Logging; GKE and Cloud SQL metrics flow to Cloud Monitoring. Optional uptime checks and alert policies are available.

• Console: Logging → Logs Explorer; Monitoring → Dashboards / Alerting.
• CLI:

  gcloud logging read 'resource.type="k8s_container" AND resource.labels.namespace_name="'"$NAMESPACE"'"' \
    --project "$PROJECT" --limit 50

---

3. Matomo Application Behaviour

• First-deploy database setup. The db-init job runs a script using mysql:8.0-debian. It connects to Cloud SQL (via the Auth Proxy sidecar socket, falling back to TCP against the private IP), idempotently creates the application database and user, grants privileges, verifies the app user can connect, then shuts down the proxy sidecar cleanly (quitquitquit, so the job exits 0 and is not retried under restartPolicy: OnFailure). The job is safe to re-run (execute_on_apply = true, max_retries = 3).
• No headless schema install. Matomo does not run a migration job on boot. The empty database created by db-init is populated by Matomo's own installer wizard, reached by browsing to the service URL — it walks through system-check, database connection (pre-filled from MATOMO_DATABASE_*), and creation of the first super-user account.
• DB env vars pre-fill, not auto-complete, the installer. The platform injects MATOMO_DATABASE_HOST (127.0.0.1 via the proxy sidecar), MATOMO_DATABASE_USERNAME, MATOMO_DATABASE_DBNAME, and MATOMO_DATABASE_PASSWORD — read by Matomo's EnvironmentVariables plugin to pre-populate the installer's database-connection screen. You still need to walk through the installer to finish setup and create the admin account.
• Table prefix and adapter are fixed. MATOMO_DATABASE_ADAPTER=mysql and MATOMO_DATABASE_TABLES_PREFIX=matomo_ are set by Matomo_Common and are not exposed as module variables.
• NFS-backed rollouts use Recreate. Updates terminate the old pod before starting the new one, avoiding two pods deadlocking on the shared NFS volume and DB locks.
• Health probes. Startup probe is TCP on / with a generous 30s initial delay, 15s period, and a 20-attempt failure threshold — giving the image entrypoint time to populate the NFS-mounted document root from /usr/src/matomo and reach the database on first boot. Liveness probe is HTTP GET / with a 300s initial delay (200/302 to the installer counts as healthy).
• Inspect the init job and running config:

  kubectl get jobs -n "$NAMESPACE"
  kubectl logs -n "$NAMESPACE" job/<db-init-job-name>
  kubectl exec -n "$NAMESPACE" deploy/<service-name> -- env | grep MATOMO_DATABASE

• Scaling constraint. Keep max_instance_count = 1 unless multi-pod session/NFS-lock behaviour has been verified — Matomo does not natively coordinate archiving/tracking-log writes across replicas sharing one NFS volume and one database.
• Cron/archiving is not wired. This module does not provision a CronJob for Matomo's periodic archive processing (console core:archive); if scheduled report pre-processing is required, add one via the generic cron_jobs variable (Group 11) pointing at the deployed image and command.

---

4. Configuration Variables

Variables are grouped exactly as they appear on the deployment platform. Only settings specific to or notable for Matomo are listed; every other input is inherited from App_GKE with its standard behaviour and defaults.

Group 3 — Application Identity

Variable	Default	Description
application_name	matomo	Base name for resources. Do not change after first deploy.
application_version	5-apache	Tag of the official Matomo image to deploy. Use an Apache variant tag (e.g. 5.11-apache, latest).

Group 4 — Runtime & Scaling

Variable	Default	Description
container_image_source	prebuilt	prebuilt deploys the official Matomo image directly; custom builds via Cloud Build.
container_port	80	Matomo/Apache listens on port 80.
cpu_limit	1000m	CPU limit for the Matomo container.
memory_limit	2Gi	Memory limit; Matomo with common plugins typically needs at least 512Mi.
min_instance_count	1	Keep at 1 to keep the workload reachable.
max_instance_count	1	Keep at 1 unless multi-pod NFS/session behaviour is verified.
enable_cloudsql_volume	true	Auth Proxy sidecar (loopback) — required on GKE.
php_memory_limit	512M	PHP memory_limit; must be ≤ memory_limit. Applies only to a custom image build.
upload_max_filesize	64M	Max single upload (e.g. log-file import). Must be ≤ post_max_size.
post_max_size	64M	Max POST body size. Must be ≥ upload_max_filesize.

Group 6 — GKE Backend & Cluster

Variable	Default	Description
service_type	LoadBalancer	External IP for the Matomo UI.
workload_type	null → Deployment	Deployment (NFS-backed, Recreate strategy).
session_affinity	ClientIP	Sticky routing so a client reaches the same pod.

Group 10 — Observability & Health

Variable	Default	Description
startup_probe	TCP /, 30s delay, 15s period, 20 failures	Matomo-specific override with a generous threshold for first-boot NFS population + DB connection.
liveness_probe	HTTP /, 300s delay, 60s period, 3 failures	Confirms Apache/PHP is serving (200/302 to the installer counts as healthy).

Group 13 — Filesystem (NFS)

Variable	Default	Description
enable_nfs	true	NFS is on by default so config.ini.php, plugins, and generated assets persist and are shared.
nfs_mount_path	/var/www/html	Matomo's document root; the image entrypoint populates an empty volume from /usr/src/matomo on first start.

Group 15 — Redis

Variable	Default	Description
enable_redis	true	Injects REDIS_HOST/REDIS_PORT into the pod for use as Matomo's object cache. Connectivity only — see Section 6.
redis_host	""	Leave blank to default to the NFS server's co-hosted Redis IP; set explicitly for Memorystore.
redis_port	6379	Standard Redis port.

Group 16 — Database Backend

Variable	Default	Description
database_type	null → MYSQL_8_0 (fixed by Matomo_Common)	Only MySQL is supported.
application_database_name	matomo	Database name, injected as MATOMO_DATABASE_DBNAME. Immutable after first deploy.
application_database_user	matomo	Application database user, injected as MATOMO_DATABASE_USERNAME; password auto-generated in Secret Manager.

Group 19 — Custom Domain, Static IP & Networking

Variable	Default	Description
reserve_static_ip	true	Stable external IP across redeploys.
application_domains	[]	Custom hostnames + managed certificate.

All other inputs follow standard App_GKE behaviour.

---

5. Outputs

These values are returned on a successful deployment and are the quickest way to locate and explore the running resources.

Output	Description
service_name	Kubernetes Service name.
namespace	Namespace the workload runs in.
service_cluster_ip	In-cluster ClusterIP.
stage_service_cluster_ips	Map of ClusterIPs for stage-specific services.
service_external_ip	External LoadBalancer IP (when a static IP is reserved).
service_url	URL to reach Matomo.
database_instance_name	Cloud SQL instance name.
database_name / database_user	Application database name / user.
database_password_secret	Secret Manager secret holding the DB password.
database_host / database_port	DB endpoint (127.0.0.1 via the Auth Proxy) / port.
storage_buckets	Created Cloud Storage buckets.
network_name / network_exists / regions	VPC network, presence, available regions.
container_image / container_registry	Deployed image and Artifact Registry repo.
monitoring_enabled / monitoring_notification_channels	Monitoring status and channels.
initialization_jobs / db_import_job	Names of the setup (db-init) and (optional) import jobs.
deployment_id / tenant_id / resource_prefix	Naming identifiers.
project_id / project_number	Project identifiers.
cicd_enabled / cicd_configuration	CI/CD status and details (repo, trigger, registry).
github_repository_url / github_repository_owner / github_repository_name	CI/CD GitHub details.
artifact_registry_repository / cloudbuild_trigger_name / cloudbuild_trigger_id	Registry and build trigger.
kubernetes_ready	Whether the cluster/workload is ready.
vpc_sc_enabled / vpc_sc_perimeter_name / vpc_sc_dry_run_mode	VPC-SC status.
audit_logging_enabled / artifact_registry_cmek_enabled	Audit logging and CMEK status.

---

6. Configuration Pitfalls & Sensible Defaults

Risk: Critical (data loss / outage / security) — High (service degraded) — Medium (cost or partial degradation) — Low (minor).

Inherited plan-time validation. This module passes its configuration through the App_GKE foundation engine, which validates values and combinations at plan time — a StatefulSet forced alongside a stateless setting, IAP with no authorized identities, quota_memory_* given as bare integers, an out-of-range container_port/ backup_retention_days. Invalid configuration fails the plan with a clear, named error before any resource is created, so most mistakes below are caught up front rather than at apply or runtime.

Setting	Sensible value	Risk	Consequence if wrong
database_type	null (→ MYSQL_8_0)	Critical	Matomo requires MySQL/MariaDB; the engine cannot be changed to Postgres.
application_database_name / application_database_user	Set once	Critical	Immutable after first deploy; renaming recreates the DB/user and orphans all analytics data.
enable_nfs	true	High	Disabling it makes config.ini.php, installed plugins, and generated assets ephemeral — lost on pod recreation, breaking the site after the first restart.
enable_cloudsql_volume	true	High	The Auth Proxy sidecar on 127.0.0.1:3306 is required for DB connectivity on GKE.
max_instance_count	1	High	Scaling beyond 1 without verified shared-storage/session behaviour risks split sessions and NFS/DB lock contention during archive processing.
session_affinity	ClientIP	High	Without stickiness, requests bounce between pods and disrupt the admin UI session.
container_port	80	Critical	Matomo/Apache serves on 80; a mismatch fails every liveness/startup probe and the Deployment never becomes Ready.
memory_limit	2Gi	High	Below roughly 512Mi the PHP/Apache pod OOMs under load, especially during archive/report generation.
quota_memory_requests / _limits	binary units (4Gi, 8192Mi)	Critical	Bare integers are treated as bytes and block all pod scheduling in the namespace.
enable_redis	true, with a real cache backend configured post-deploy	Medium	The env vars alone do not configure Matomo's [Cache] backend — leaving Redis "enabled" with no reachable service (e.g. blank redis_host and no co-hosted Redis) can surface connection errors without an actual caching benefit.
reserve_static_ip	true	Medium	Without it, the external IP can change across redeploys, breaking DNS and any bookmarked/embedded tracking URLs.
backup_retention_days	7 (raise for prod)	Medium	Too short for compliance retention of historical analytics backups.

---

For the foundation behaviour referenced throughout — IAM and Workload Identity, autoscaling, ingress and certificates, CI/CD, Cloud Armor, IAP, Binary Authorization, VPC-SC, backups, and image mirroring — see App_GKE. Matomo-specific application configuration shared with the Cloud Run variant is described in Matomo_Common.
