Kestra on GKE Autopilot

Kestra is an open-source data orchestration platform (Apache 2.0) for building, scheduling, and monitoring ETL/ELT pipelines, batch jobs, and workflow automation through declarative YAML-based flow definitions and a 500+ plugin ecosystem. This module deploys Kestra on GKE Autopilot in standalone mode on top of the App_GKE foundation, which provisions and manages the shared Google Cloud and Kubernetes infrastructure.

This guide focuses on the cloud services Kestra uses and how to explore and operate them from the Google Cloud Console and the command line. For the mechanics common to every GKE application — Workload Identity, ingress, autoscaling, CI/CD, Cloud Armor, IAP, Binary Authorization, VPC Service Controls, backups, and the deployment lifecycle — refer to the App_GKE foundation guide rather than repeating them here.

---

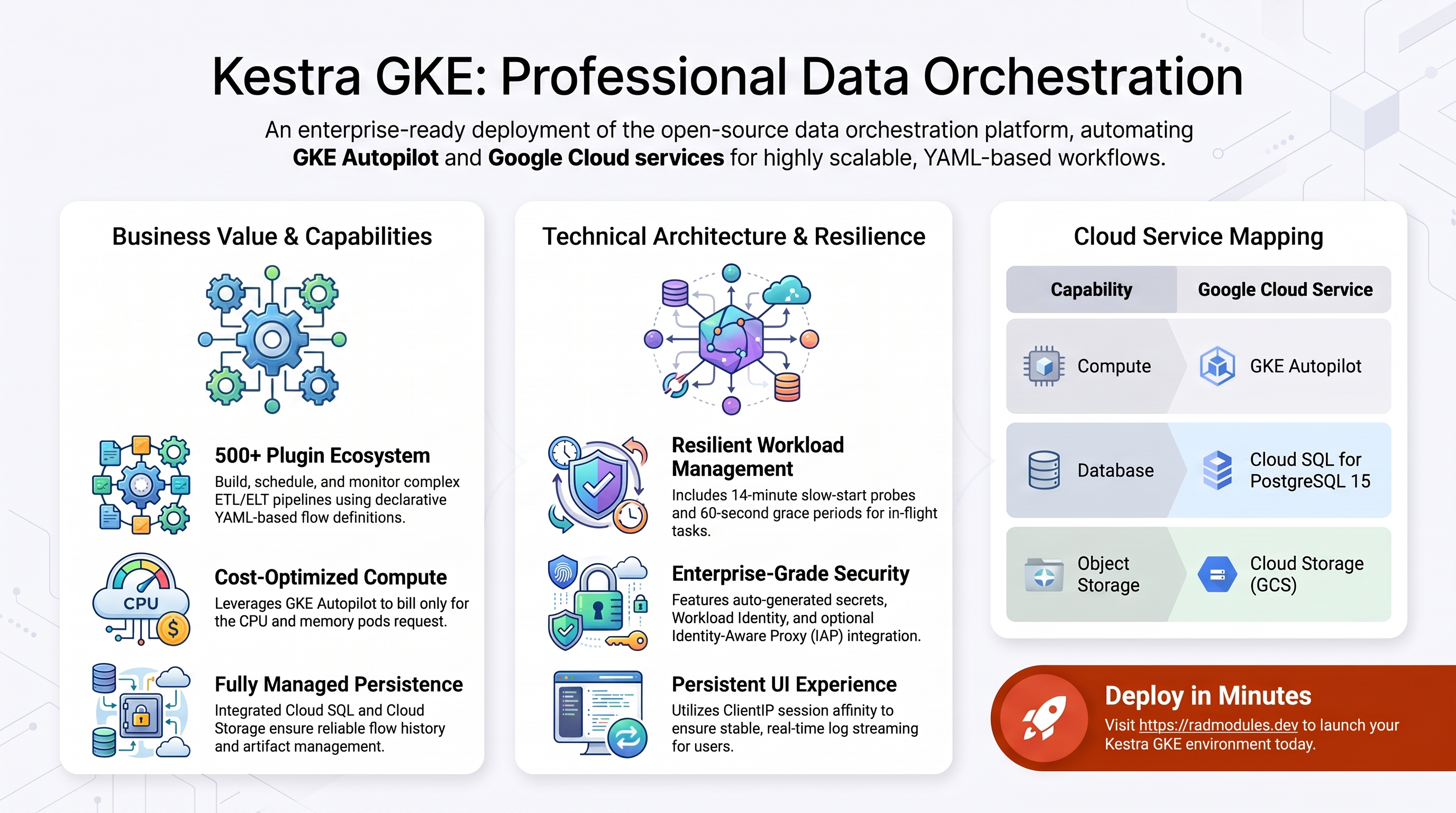

1. Overview

Kestra runs as a Java/JVM container in standalone mode (server, worker, and scheduler in a single container). The deployment wires together a focused set of Google Cloud services:

Capability	Google Cloud service	Notes
Compute	GKE Autopilot	Java/JVM pod, 2 vCPU / 4 GiB by default, single-replica standalone mode
Database	Cloud SQL for PostgreSQL 15	Required — stores queue, repository, and execution history
Object storage	Cloud Storage	Dedicated GCS bucket for flows, executions, and artifacts
Secrets	Secret Manager	Auto-generated Kestra admin password
Ingress	Cloud Load Balancing	External LoadBalancer, optional custom domain + managed certificate

Sensible defaults worth knowing up front:

• PostgreSQL 15 is mandatory. Kestra uses PostgreSQL for both its internal queue and flow repository. MySQL is not supported.
• Standalone mode runs all components in one container. Keep max_instance_count = 1 to avoid conflicting queue-lock state across replicas.
• Java JVM cold start is slow. The default startup probe allows up to ~14 minutes (30s initial delay + 20s period × 40 retries). Keep min_instance_count = 1 in production so scheduled triggers are never missed during cold starts.
• Redis is not used. Kestra uses PostgreSQL for queuing in standalone mode.
• Session affinity is ClientIP. Required for the Kestra UI's persistent log-streaming connection — requests from the same browser must reach the same pod.
• The admin password is auto-generated and stored in Secret Manager; it is never set in plain text.
• A GCS storage bucket is always provisioned for flows, executions, and artifacts; its name is injected as KESTRA_STORAGE_GCS_BUCKET automatically.

---

2. Google Cloud Services & How to Explore Them

All commands assume you have run gcloud container clusters get-credentials <cluster> --region <region> --project <project> and that PROJECT, REGION, and NAMESPACE are set. The namespace and other identifiers are reported in the deployment Outputs.

A. GKE Autopilot — the Kestra workload

Kestra pods are scheduled on Autopilot, which bills for the CPU/memory the pods actually request. By default a single replica handles all orchestration components (server, worker, scheduler) in one pod.

• Console: Kubernetes Engine → Workloads → select the Kestra workload to see pods, events, and status. Kubernetes Engine → Services & Ingress shows the external IP.
• CLI:

  kubectl get pods,svc,hpa -n "$NAMESPACE"
  kubectl logs -n "$NAMESPACE" deploy/<service-name> --tail=100
  kubectl describe hpa -n "$NAMESPACE"          # current vs target utilisation

See App_GKE for how Autopilot, scaling, and the workload type (Deployment vs StatefulSet) are managed.

B. Cloud SQL for PostgreSQL 15

Kestra stores all workflow state — flow definitions, execution history, triggers, namespaces, and the internal task queue — in a managed Cloud SQL for PostgreSQL 15 instance. Pods reach it through the Cloud SQL Auth Proxy sidecar over a TCP socket at 127.0.0.1:5432 (no public IP is exposed). On first deploy an initialization job creates the Kestra database, user, and grants required privileges.

• Console: SQL → select the instance for connections, backups, flags, and metrics.
• CLI:

  gcloud sql instances list --project "$PROJECT"
  gcloud sql instances describe <instance-name> --project "$PROJECT"
  # Open an interactive shell to inspect schema/data:
  gcloud sql connect <instance-name> --user=<db-user> --project "$PROJECT"

The instance name, database name, user, and the Secret Manager secret holding the password are all surfaced in the Outputs. For the connection model, automated backups, and password rotation, see App_GKE.

C. Cloud Storage

A dedicated Cloud Storage bucket is provisioned for Kestra's GCS artifact storage backend. All flow executions, task inputs/outputs, and internal storage objects are written here. The bucket name is injected into every pod as KESTRA_STORAGE_GCS_BUCKET. Additional buckets or GCS Fuse volumes can be mounted for flow data access.

• Console: Cloud Storage → Buckets.
• CLI:

  gcloud storage buckets list --project "$PROJECT"
  gcloud storage ls gs://<kestra-storage-bucket>/        # bucket name in Outputs
  # Confirm a GCS Fuse volume is mounted inside a pod (if configured):
  kubectl exec -n "$NAMESPACE" deploy/<service-name> -- df -h | grep -i fuse

See App_GKE for NFS provisioning, GCS Fuse, and CMEK options.

D. Secret Manager

The Kestra admin password is stored as a Secret Manager secret and injected into pods at runtime; plain text never appears in configuration.

• Console: Security → Secret Manager.
• CLI:

  gcloud secrets list --project "$PROJECT"
  gcloud secrets versions access latest --secret=<admin-password-secret> --project "$PROJECT"

The admin password secret is named <resource_prefix>-admin-password. The database password secret name is in the Outputs. See App_GKE for the Secret Store CSI integration and rotation.

E. Networking & ingress

The workload is exposed through an external Cloud Load Balancing IP. enable_custom_domain defaults to true, provisioning a Kubernetes Gateway with a Google-managed certificate for the hostnames in application_domains; a static IP is reserved by default so the address survives redeploys.

• Console: Network services → Load balancing; VPC network → IP addresses.
• CLI:

  kubectl get ingress,svc -n "$NAMESPACE"
  gcloud compute addresses list --project "$PROJECT"

See App_GKE for custom domains, Cloud CDN, and static IP details.

F. Cloud Logging & Monitoring

Pod stdout/stderr flow to Cloud Logging; GKE and Cloud SQL metrics flow to Cloud Monitoring. Health probes target Kestra's /health endpoint. Optional uptime checks and alert policies are available.

• Console: Logging → Logs Explorer; Monitoring → Dashboards / Alerting.
• CLI:

  gcloud logging read 'resource.type="k8s_container" AND resource.labels.namespace_name="'"$NAMESPACE"'"' \
    --project "$PROJECT" --limit 50

---

3. Kestra Application Behaviour

• First-deploy database setup. An initialization job (db-init) uses postgres:15-alpine to connect through the Cloud SQL Auth Proxy and idempotently creates the Kestra database and user, grants privileges, and resets the public schema so Flyway can apply all migrations cleanly on a fresh Cloud SQL instance. The job signals the proxy to shut down cleanly when done.
• Flyway migrations on start. Kestra runs its own Flyway-based schema migrations on every startup. The FLYWAY_DATASOURCES_POSTGRES_BASELINE_ON_MIGRATE=true setting prevents failures on Cloud SQL, which pre-populates the public schema with extension objects. Upgrading the application_version applies schema changes automatically.
• JDBC socket bridge. On GKE the Cloud SQL Auth Proxy sidecar already listens on TCP 127.0.0.1:5432, so the entrypoint.sh JDBC bridge logic is skipped automatically — no socat bridge is needed here (unlike the Cloud Run variant).
• Health endpoint. Startup and liveness probes target GET /health on port 8080. Kestra (Java JVM) has a slow startup; the default probe allows up to ~14 minutes before declaring failure.
• Session affinity. The Kestra UI streams execution logs over a persistent connection. session_affinity = "ClientIP" routes all requests from the same browser to the same pod, preventing log-stream disconnections.
• Termination grace period. Set to 60 seconds (up from the Kubernetes default) to allow in-flight task executions to complete gracefully before the pod is forcibly terminated.
• Admin login. The initial admin username is admin. The password is retrieved from Secret Manager (see §2.D).
• Scheduled triggers. Kestra's internal scheduler processes flow-defined triggers (cron, interval, webhook). As long as one pod is running, all triggers fire on schedule. Setting min_instance_count = 0 causes missed triggers during cold-start periods.

---

4. Configuration Variables

Variables are grouped exactly as they appear on the deployment platform. Only settings specific to or notable for Kestra are listed; every other input is inherited from App_GKE with its standard behaviour and defaults.

Group 1 — Project & Identity

Variable	Default	Description
project_id	(required)	Target Google Cloud project.
region	us-central1	Region for the workload and regional resources.

Group 2 — Deployment Environment

Variable	Default	Description
tenant_deployment_id	demo	Short suffix that makes resource names unique per environment.
support_users	[]	Emails granted project access and monitoring alerts.
resource_labels	{}	Labels applied to all resources for cost/ownership tracking.

Group 3 — Application Identity

Variable	Default	Description
application_name	kestra	Base name for resources. Do not change after first deploy.
application_version	latest	Kestra image version tag; increment to roll out a new version (e.g. 0.17.0).
display_name	Kestra Data Orchestration	Friendly name shown in the Console and platform UI.
description	Kestra Data Orchestration - ETL/ELT pipeline and workflow orchestration on GKE Autopilot	Workload description annotation.
deploy_application	true	Set false to provision infrastructure only.

Group 4 — Runtime & Scaling

Variable	Default	Description
cpu_limit	2000m	CPU per pod; 2 vCPU minimum recommended for Kestra JVM.
memory_limit	4Gi	Memory per pod; 4 GiB recommended (minimum 2 GiB).
container_port	8080	Kestra/Micronaut server port. Must match MICRONAUT_SERVER_PORT.
min_instance_count	1	Minimum replicas. Keep ≥ 1 so scheduled triggers are never missed.
max_instance_count	1	Maximum replicas. Keep at 1 for standalone mode to avoid queue conflicts.
timeout_seconds	300	Maximum request duration in seconds (0–3600).
enable_cloudsql_volume	true	Cloud SQL Auth Proxy sidecar for TCP socket connections to PostgreSQL.
enable_image_mirroring	true	Mirror the Kestra image into Artifact Registry before deploy.
enable_vertical_pod_autoscaling	false	Let Autopilot tune resource requests automatically.
termination_grace_period_seconds	60	Seconds Kubernetes waits after SIGTERM — allows in-flight executions to finish.
deployment_timeout	1800	Max seconds Terraform waits for the rollout to complete (large Java image).

Group 5 — Environment Variables & Secrets

Variable	Default	Description
environment_variables	{}	Extra non-secret settings. Core Kestra vars are injected automatically; do not override them here.
secret_environment_variables	{}	Map of env var → Secret Manager secret name (e.g. { KESTRA_ENCRYPTION_SECRET = "kestra-enc-key" }).
secret_propagation_delay	30	Seconds to wait after secret creation (0–300).
secret_rotation_period	2592000s	Secret Manager rotation notification period.
enable_auto_password_rotation	false	Automated zero-downtime database password rotation.
rotation_propagation_delay_sec	90	Seconds to wait after rotation before restarting pods.

Group 6 — GKE Backend & Cluster

Variable	Default	Description
service_type	LoadBalancer	How the Service is exposed.
session_affinity	ClientIP	Sticky routing required for Kestra UI log streaming.
workload_type	null	Auto-resolves to StatefulSet when per-pod storage is enabled; otherwise Deployment.
gke_cluster_name	""	Leave empty to auto-discover the Services_GCP-managed cluster.
namespace_name	""	Leave empty to auto-generate from application name and tenant ID.
network_tags	["nfsserver"]	Node/pod tags for VPC firewall rules.
enable_network_segmentation	false	Create Kubernetes NetworkPolicy resources.
configure_service_mesh	false	Enable Istio injection for the application namespace.

Group 7 — StatefulSet

Only relevant when workload_type = "StatefulSet" or stateful_pvc_enabled = true.

Variable	Default	Description
stateful_pvc_enabled	null	Enable a PVC per pod for local plugin storage or temporary execution files.
stateful_pvc_size	10Gi	Storage size for each PVC. Immutable after creation — plan capacity in advance.
stateful_pvc_mount_path	/app/storage	Container path where the PVC is mounted.
stateful_pvc_storage_class	""	Kubernetes StorageClass; empty uses cluster default.

Group 9 — Reliability Policies

Variable	Default	Description
enable_pod_disruption_budget	true	Protect availability during node upgrades (default true for Kestra).
pdb_min_available	1	Minimum pods available during voluntary disruptions.
enable_topology_spread	false	Spread pods across zones (relevant only when max_instance_count > 1).

Group 10 — Observability & Health

Variable	Default	Description
startup_probe	HTTP /health, 30s delay, period 20s, 40 failures	Application startup probe — allows up to ~14 minutes for JVM startup.
liveness_probe	HTTP /health, 180s delay, period 30s, 5 failures	Application liveness probe.
uptime_check_config	disabled	Optional Cloud Monitoring uptime check.
alert_policies	[]	Optional metric alert policies.

Group 11 — Jobs & Scheduled Tasks

Variable	Default	Description
initialization_jobs	[]	Leave empty to use the built-in db-init job. Provide a non-empty list to replace it entirely.
cron_jobs	[]	Kubernetes CronJobs for scheduled auxiliary tasks (e.g. backups).
additional_services	[]	Sidecar or helper GKE services deployed alongside Kestra.

Group 12 — CI/CD & GitHub Integration

Standard App_GKE Cloud Build / Cloud Deploy integration — see App_GKE. Key inputs: enable_cicd_trigger, github_repository_url, github_token, enable_cloud_deploy, enable_binary_authorization.

Group 13 — Filesystem (NFS)

Variable	Default	Description
enable_nfs	false	Provision a Cloud Filestore (NFS) share and mount it into pods. Useful for flow scripts that write local files.
nfs_mount_path	/mnt/nfs	Mount path inside the container.

Group 14 — Cloud Storage & Artifact Registry

Variable	Default	Description
create_cloud_storage	true	Provision additional buckets in storage_buckets. The Kestra storage bucket is always created.
storage_buckets	[]	Additional GCS buckets beyond the built-in storage bucket.
gcs_volumes	[]	GCS buckets to mount via GCS Fuse CSI Driver.
manage_storage_kms_iam / enable_artifact_registry_cmek	false	CMEK options.

Group 16 — Database Backend

Variable	Default	Description
db_name	kestra	PostgreSQL database name. Immutable after first deploy.
db_user	kestra	Application user. Immutable after first deploy.
database_password_length	32	Generated password length (16–64).
enable_auto_password_rotation	false	Zero-downtime DB password rotation.

Group 17 — Backup & Maintenance

Variable	Default	Description
backup_schedule	0 2 * * *	Automated backup cron (UTC).
backup_retention_days	7	Retention; raise to 30–90 for production/compliance.
enable_backup_import / backup_source / backup_uri	restore options	Restore from a backup on deploy.

Group 18 — Custom SQL Scripts

enable_custom_sql_scripts, custom_sql_scripts_bucket, custom_sql_scripts_path, custom_sql_scripts_use_root — run SQL from a GCS bucket after provisioning. See App_GKE.

Group 19 — Custom Domain, Static IP & Networking

Variable	Default	Description
enable_custom_domain	true	Provision Kubernetes Gateway with SSL certificate for custom hostnames.
application_domains	[]	Hostnames to serve. Empty with enable_custom_domain = true generates a nip.io domain.
reserve_static_ip	true	Stable external IP across redeploys. Recommended for production.

Group 20 — Identity-Aware Proxy (IAP)

Variable	Default	Description
enable_iap	false	Require Google sign-in in front of Kestra.
iap_authorized_users / iap_authorized_groups	[]	Who may access.
iap_oauth_client_id / iap_oauth_client_secret	""	Required when IAP is enabled (sensitive).

Group 21 — Cloud Armor

Variable	Default	Description
enable_cloud_armor	false	Attach a Cloud Armor (WAF) policy to the Ingress backend.
admin_ip_ranges	[]	CIDRs allowed privileged access.
cloud_armor_policy_name	default-waf-policy	Policy name.

Group 22 — VPC Service Controls & Audit Logging

Variable	Default	Description
enable_vpc_sc	false	Enforce a VPC-SC perimeter (requires organization_id).
vpc_cidr_ranges / vpc_sc_dry_run	(set)	Access level CIDRs / dry-run mode.
enable_audit_logging	false	Detailed Cloud Audit Logs.

---

5. Outputs

These values are returned on a successful deployment and are the quickest way to locate and explore the running resources.

Output	Description
service_name	Kubernetes Service name.
namespace	Namespace the workload runs in.
service_cluster_ip	In-cluster ClusterIP.
stage_service_cluster_ips	Map of ClusterIPs for stage-specific services (Cloud Deploy).
service_external_ip	External LoadBalancer IP (when a static IP is reserved).
service_url	URL to reach Kestra.
database_instance_name	Cloud SQL instance name.
database_name	Application database name.
database_user	Application database user.
database_password_secret	Secret Manager secret holding the DB password.
database_host / database_port	DB endpoint (127.0.0.1 via the Auth Proxy) / port.
storage_buckets	Created Cloud Storage buckets (includes the Kestra storage bucket).
network_name / network_exists / regions	VPC network, presence, available regions.
container_image / container_registry	Deployed image and Artifact Registry repo.
monitoring_enabled / monitoring_notification_channels	Monitoring status and channels.
initialization_jobs / db_import_job	Names of the setup and (optional) import jobs.
deployment_id / tenant_id / resource_prefix	Naming identifiers.
project_id / project_number	Project identifiers.
cicd_enabled / cicd_configuration	CI/CD status and details (repo, trigger, registry).
github_repository_url / github_repository_owner / github_repository_name	GitHub repo details.
artifact_registry_repository / cloudbuild_trigger_name / cloudbuild_trigger_id	Registry and build trigger.
kubernetes_ready	Whether the cluster/workload is ready. false on first apply of a new inline cluster.
vpc_sc_enabled / vpc_sc_perimeter_name / vpc_sc_dry_run_mode	VPC-SC status.
audit_logging_enabled / artifact_registry_cmek_enabled	Audit logging and CMEK status.

---

6. Configuration Pitfalls & Sensible Defaults

Risk: Critical (data loss / outage / security) — High (service degraded) — Medium (cost or partial degradation) — Low (minor).

Setting	Sensible value	Risk	Consequence if wrong
db_name	kestra — set once	Critical	Immutable after first deploy; changing it connects Kestra to an empty database, losing all flows, execution history, triggers, and namespaces.
application_name	kestra — set once	Critical	Immutable after first deploy; changing it renames all GCP/Kubernetes resources, causing full recreation with data loss.
KESTRA_BASICAUTH_ENABLED (injected true)	leave as injected	Critical	Overriding to false exposes the full Kestra UI and REST API without authentication. Only disable behind a trusted auth proxy (IAP, Cloud Armor).
enable_backup_import	false unless restoring	Critical	Enabling without a valid backup_uri fails the import job.
max_instance_count	1	High	Kestra Community Edition uses PostgreSQL queue locking — multiple replicas cause task double-assignment and execution conflicts.
min_instance_count	1	High	Setting to 0 causes scheduled triggers to be missed during cold-start periods. Kestra JVM startup can take several minutes.
memory_limit	4Gi	High	Values below 2 GiB cause JVM OutOfMemoryErrors under concurrent execution load.
enable_cloudsql_volume	true	High	Required for PostgreSQL connectivity; blocked at plan time when database_type != "NONE".
KESTRA_QUEUE_TYPE / KESTRA_REPOSITORY_TYPE (injected postgres)	leave as injected	High	Only PostgreSQL is provisioned; overriding to an unsupported backend type causes startup failure.
KESTRA_STORAGE_TYPE (injected gcs)	leave as injected	High	Changing to local causes all execution artifacts to write to ephemeral pod storage and be lost on restart.
startup_probe failure threshold	40 (default)	High	Reducing below ~10 causes premature pod restarts on slow JVM startups before Kestra has finished loading all flows.
session_affinity	ClientIP	Medium	Without stickiness, Kestra UI log-streaming connections disconnect when routed to a different pod.
termination_grace_period_seconds	60	Medium	Values below 30 s abort in-flight task executions mid-run.
enable_pod_disruption_budget	true	Medium	Disabling PDB allows GKE to evict the Kestra pod during node maintenance, interrupting all running executions.
quota_memory_requests / _limits	binary units	Critical	Bare integers are treated as bytes by Kubernetes and block all scheduling in the namespace.
enable_iap / enable_cloud_armor	enable for admin-facing	Medium	The Kestra UI and API are otherwise publicly reachable.
backup_retention_days	7 (raise for prod)	Medium	Too short for compliance retention requirements.
organization_id	set when using VPC-SC	Medium	If empty, VPC Service Controls are silently skipped.

---

For the foundation behaviour referenced throughout — IAM and Workload Identity, autoscaling, ingress and certificates, CI/CD, Cloud Armor, IAP, Binary Authorization, VPC-SC, backups, and image mirroring — see App_GKE. Kestra-specific application configuration shared with the Cloud Run variant is described in Kestra_Common.
