Temporal GKE Module

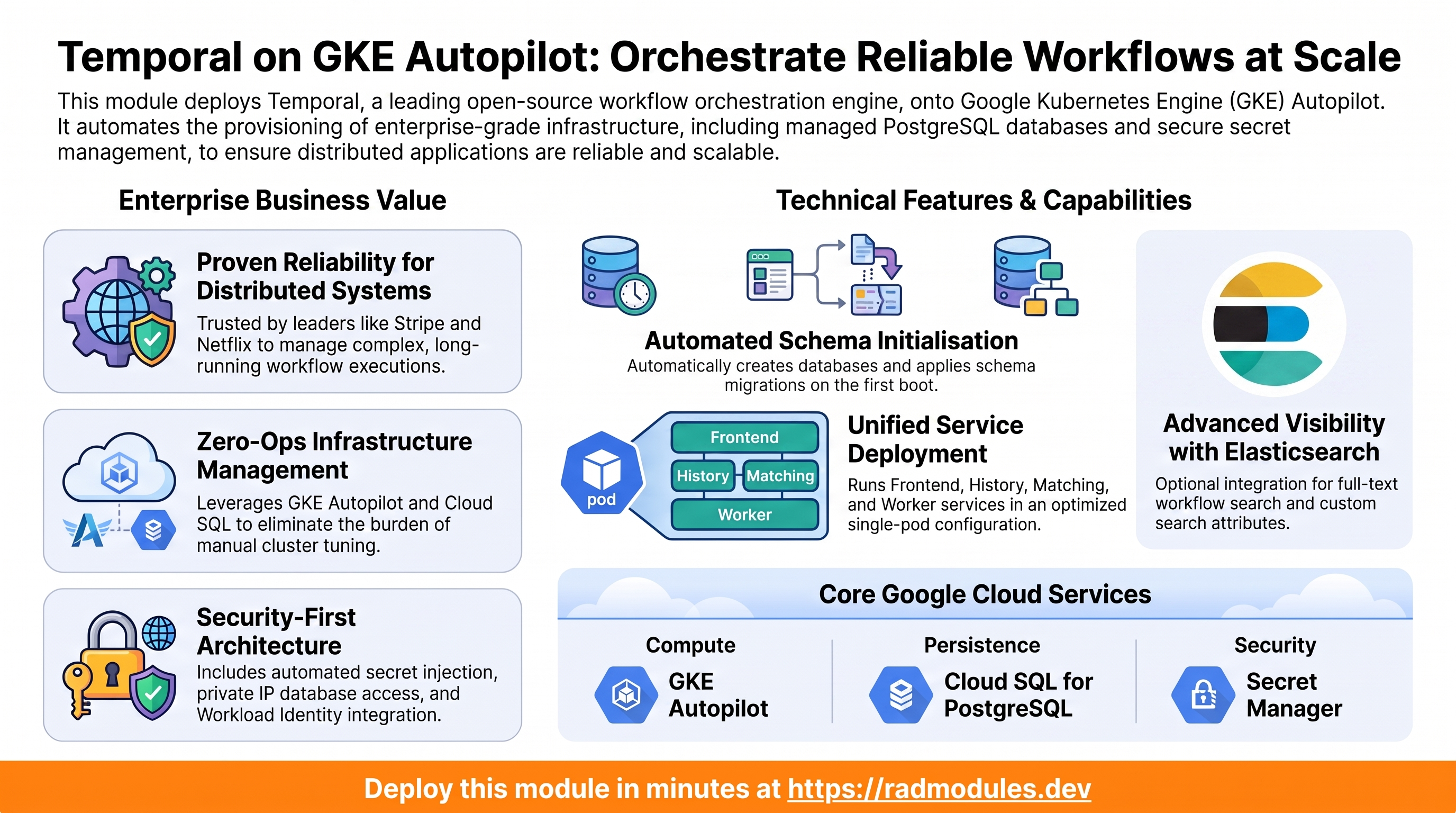

The Temporal_GKE module deploys Temporal Workflow Engine to GKE Autopilot using the official temporalio/auto-setup all-in-one image. It provisions all four Temporal services — Frontend, History, Matching, and Worker — in a single pod, backed by Cloud SQL PostgreSQL for persistence and visibility. An optional Elasticsearch integration unlocks advanced visibility for full-text workflow search and custom search attributes.

A Temporal Web UI can be optionally added via the additional_services variable.

---

1. Overview

Purpose: Deploy a production-ready Temporal Workflow Engine on GKE Autopilot with automatic schema initialisation, App GKE standard credential management, and an optional Elasticsearch advanced visibility backend.

Architecture:

Layer 3: Temporal_GKE (this module)
  ├── temporal-db-init (Kubernetes Job — runs before server pod)
  │     └── Creates PostgreSQL role with CREATEDB privilege (postgres:15-alpine)
  └── app_gke (App_GKE)
        └── Temporal server pod (temporalio/auto-setup)
              └── Connects directly to Cloud SQL via private IP (no Auth Proxy sidecar)
                       ↓
Layer 2: App_GKE (Kubernetes Deployment, Service, HPA, Workload Identity,
                  Secret Manager credential management)
                       ↓
Layer 1: Services_GCP (VPC, Cloud SQL, GKE Autopilot cluster, Artifact Registry)

Key characteristics:

• The temporalio/auto-setup image runs schema initialisation on first start, then launches all four Temporal services (frontend,history,matching,worker). No separate admin-tools init job is needed.
• Database credentials (user, password, DB_USER / DB_PASSWORD / DB_NAME env vars) are managed by App GKE's standard mechanism — the same as Django, Ghost, and every other module.
• The temporal-db-init Kubernetes Job creates the PostgreSQL role with CREATEDB privilege before the server pod starts. auto-setup then creates the DBNAME and VISIBILITY_DBNAME databases itself and runs schema migrations.
• The Temporal Frontend gRPC port is hardcoded to 7233 in main.tf (service_port = 7233). The container_port variable has no effect on service exposure.
• No Cloud SQL Auth Proxy sidecar — enable_cloudsql_volume = false. Temporal connects directly to Cloud SQL via the private IP discovered by the sql_discovery sub-module (POSTGRES_SEEDS = <db_internal_ip>). DB = "postgres12" tells auto-setup to use the PostgreSQL 12 driver/schema.
• Redis is explicitly disabled (enable_redis = false). Temporal uses PostgreSQL as its queue and persistence backend.
• The Temporal server service_type defaults to ClusterIP — SDK workers connect from within the GKE cluster. Use service_type = "LoadBalancer" only if external SDK workers need direct gRPC access.
• No Web UI is deployed automatically. Use the additional_services variable to add a Temporal Web UI container if desired.

---

2. Module Composition

temporal.tf defines the following locals consumed by main.tf:

Symbol	Purpose
local.temporal_module	Application config map passed to App GKE as application_config
local.application_modules	{ temporal = local.temporal_module }
local.module_env_vars	Empty — all env vars are set inside temporal_module.environment_variables
local.module_secret_env_vars	Empty — DB_PASSWORD / ROOT_PASSWORD are managed by App GKE's standard mechanism
local.module_storage_buckets	Empty — Temporal requires no GCS buckets

The temporal_module config sets db_name = "" and db_user = "" so App GKE's standard Cloud SQL database creation is skipped. Database and user provisioning is handled entirely by Temporal Common (which creates its own Secret Manager secret for the password). The secret is injected via module_secret_env_vars = module.temporal_common.secret_ids.

---

3. Container Image

Component	Image	Tag
Temporal server	temporalio/auto-setup	var.application_version (default: 1.25.0)
DB init job	postgres	15-alpine (hardcoded)

• enable_image_mirroring = true by default — the Temporal server image is mirrored from Docker Hub into Artifact Registry before deployment.
• image_source = "prebuilt" — no custom Dockerfile is required.
• NUM_HISTORY_SHARDS defaults to 4 (suitable for dev/demo); set to 512 or higher for production. This value cannot be changed after deployment.

---

4. Environment Variables

The Temporal server environment variables are set directly in environment_variables within temporal.tf. There is no shell wrapper — all variables are passed as Kubernetes env vars.

Static Variables (set in environment_variables)

Variable	Default Value	Description
DB	"postgres12"	Tells auto-setup to use the PostgreSQL 12+ driver and schema paths
POSTGRES_SEEDS	module.sql_discovery.db_internal_ip	Cloud SQL private IP (auto-discovered from Services GCP)
POSTGRES_USER	var.temporal_db_user	PostgreSQL username (from temporal_db_user variable)
DBNAME	var.temporal_database_name	Primary persistence database name
VISIBILITY_DBNAME	var.temporal_visibility_database_name	Visibility database name
NUM_HISTORY_SHARDS	"4"	History shard count (power of two; cannot change post-deploy)
SERVICES	"frontend,history,matching,worker"	All four Temporal services in one pod
SQL_TLS_ENABLED	"true"	Enables TLS for direct Cloud SQL connections
POSTGRES_TLS_ENABLED	"true"	Enables TLS in schema migration tool
POSTGRES_TLS_DISABLE_HOST_VERIFICATION	"true"	Skips host verification (Cloud SQL CA cert not available in pod)

The POSTGRES_PWD is injected via module_secret_env_vars from Temporal Common's Secret Manager secret.

Elasticsearch Variables (when enable_elasticsearch = true)

Variable	Source	Description
ENABLE_ES	"true"	Activates Elasticsearch advanced visibility
ES_SEEDS	Parsed from elasticsearch_url (host only, no scheme/port)	Elasticsearch cluster host
ES_PORT	Parsed from elasticsearch_url	Elasticsearch cluster port (default 9200)
ES_VERSION	var.elasticsearch_version ("v7" or "v8")	Elasticsearch major version
ES_INDICES_VISIBILITY	var.elasticsearch_index_visibility (default "temporal_visibility_v1")	Index name for advanced visibility

---

5. Temporal Web UI

No Temporal Web UI is deployed automatically by this module. To add a Web UI, pass a configuration entry via the additional_services variable. A typical example using ubuntu/temporal-ui:

additional_services = [
  {
    name         = "temporal-ui"
    image        = "ubuntu/temporal-ui:2.39.0-24.04_edge"
    port         = 8081
    cpu_limit    = "500m"
    memory_limit = "256Mi"
    env_vars = {
      TEMPORAL_ADDRESS = "<temporal-frontend-service>:7233"
      TEMPORAL_UI_PORT = "8081"
    }
    min_instance_count = 1
    max_instance_count = 1
    ingress            = "INGRESS_TRAFFIC_ALL"
  }
]

Replace <temporal-frontend-service> with the Kubernetes Service name of the Temporal frontend (available from the service_name output).

---

6. Health Probes

TCP probes are used for both the startup and liveness checks because Temporal Frontend exposes gRPC (not HTTP/1.1) on port 7233.

Probe	Type	Initial Delay	Period	Failure Threshold
Startup	TCP	30s	10s	60 (10-minute window for schema init)
Liveness	TCP	60s	30s	3

The Web UI uses HTTP GET / probes on port 8081.

---

7. Outputs

Output	Description
service_name	Kubernetes Service name for the Temporal server
service_url	Cluster-internal service URL (ClusterIP by default)
service_external_ip	External IP (non-null only when service_type = "LoadBalancer")
temporal_frontend_address	<service-url>:7233 — the gRPC address for SDK workers
namespace	Kubernetes namespace
project_id	GCP project ID
deployment_id	Deployment identifier used for all resource names
temporal_db_user	PostgreSQL username (from App GKE database_user output)
temporal_db_name	Primary persistence database name (from App GKE database_name output)
temporal_visibility_db_name	Visibility database name (<temporal_db_name>_vis)
temporal_db_password_secret_id	Secret Manager secret name for the database password
storage_buckets	Always empty
container_image	Resolved container image URI (after mirroring)
kubernetes_ready	true once the GKE cluster endpoint is available and Kubernetes resources are deployed
cicd_enabled	Whether CI/CD pipeline is active
github_repository_url	Connected GitHub repository (if CI/CD is enabled)

---

8. Key Variables

Application & Runtime

Variable	Type	Default	Description
application_version	string	"1.25.0"	Temporal server image tag. Pin to a specific version; schema migrations must be run before upgrading.
num_history_shards	number	4	History shard count. Must be a power of two. Cannot be changed after first deployment. Use 4 for dev/demo, 512+ for production.
min_instance_count	number	1	Minimum replica count for the Temporal server pod.
max_instance_count	number	1	Maximum replica count.
cpu_limit	string	"2000m"	CPU limit for the all-in-one container (all four services share this).
memory_limit	string	"4Gi"	Memory limit for the all-in-one container.
deploy_application	bool	true	Set false to provision databases and secrets without deploying pods.
deployment_timeout	number	1800	Seconds Terraform waits for the Deployment rollout. Default 30 min covers Autopilot node provisioning (~10 min) plus schema init (~5 min) on first deploy.

Networking

Variable	Type	Default	Description
service_type	string	"ClusterIP"	Kubernetes Service type for the Temporal Frontend. Use ClusterIP for cluster-internal SDK workers (recommended). Use LoadBalancer only if SDK workers need to connect from outside the cluster.
container_protocol	string	"h2c"	HTTP/2 cleartext — required for gRPC.
timeout_seconds	number	300	Backend response timeout for the load balancer.

Elasticsearch (Advanced Visibility)

Variable	Type	Default	Description
enable_elasticsearch	bool	false	Enables Elasticsearch advanced visibility.
elasticsearch_url	string	""	Elasticsearch endpoint. Accepts http://host:9200 or host:9200. Required when enable_elasticsearch = true.
elasticsearch_version	string	"v7"	"v7" or "v8". Must match the actual cluster version.
elasticsearch_index_visibility	string	"temporal_visibility_v1"	Index name; auto-created by auto-setup on first start.

Database

Variable	Type	Default	Description
application_database_name	string	"none"	Passed through to App GKE. The actual Temporal database name is always derived from the deployment resource prefix; this value does not override it.
application_database_user	string	"none"	Passed through to App GKE. The actual Temporal database user is always derived from the deployment resource prefix; this value does not override it.
database_password_length	number	32	Length in characters of the randomly generated database user password. Valid range: 16–64 characters.

Reliability

Variable	Type	Default	Description
enable_pod_disruption_budget	bool	true	Creates a PodDisruptionBudget (recommended for production).
pdb_min_available	string	"1"	Minimum pods available during node disruptions.
enable_vertical_pod_autoscaling	bool	false	Enables VPA for the Temporal server deployment.

---

9. Deployment Notes

Database Initialisation

Database provisioning for Temporal uses a dedicated Temporal Common sub-module rather than App GKE's standard mechanism:

1. Temporal Common creates the Cloud SQL user (temporal_db_user), both databases (temporal_database_name and temporal_visibility_database_name), and the Secret Manager secret for the database password.
2. temporal-db-init job (runs before the server pod) connects as the postgres superuser and creates the Temporal PostgreSQL role with CREATEDB privilege, so that auto-setup can create the databases itself.
3. temporalio/auto-setup connects as POSTGRES_USER (set from var.temporal_db_user) directly to the Cloud SQL private IP and creates the DBNAME and VISIBILITY_DBNAME databases, then runs all schema migrations.

Because Temporal Common manages its own credentials, db_name = "" and db_user = "" are passed to App GKE, and enable_cloudsql_volume = false — the Cloud SQL Auth Proxy is not used.

Schema Initialisation

temporalio/auto-setup performs schema detection on every startup:

• If no schema exists, it creates and migrates both the default and visibility schemas.
• If the schema is already at the current version, startup proceeds immediately.
• Schema migrations are run before any Temporal services begin accepting connections.

Upgrading Temporal Version

1. Update application_version to the target tag.
2. Review the Temporal release notes for breaking schema changes.
3. auto-setup applies any pending schema migrations automatically on the next startup.
4. For large deployments, run temporal-sql-tool update-schema manually before updating the deployment to avoid extended startup latency.

Connecting SDK Workers

SDK workers connect to the Temporal Frontend gRPC address:

// Go SDK example
c, err := client.Dial(client.Options{
    HostPort: "<temporal_frontend_address>", // e.g., "apptemporaldemod1a2b3c:7233"
})

For workers running inside the same GKE cluster, use temporal_frontend_address output directly. For workers outside the cluster, set service_type = "LoadBalancer" and use service_external_ip:7233.

Namespace Management

Temporal uses its own internal namespace concept (not Kubernetes namespaces). The default Temporal namespace is created automatically by auto-setup. Additional namespaces can be created with:

kubectl exec -n <k8s-namespace> deploy/<app-name> -- \
  temporal operator namespace create my-namespace

---

Configuration Pitfalls & Sensible Defaults

Risk levels: Critical (data loss, full outage, security breach) — High (service unavailable or significant degradation) — Medium (degraded function or increased cost) — Low (minor impact).

Variable	Sensible Default	Risk	Consequence of Incorrect Value
num_history_shards	4 (dev/demo), 512+ (production)	Critical	Permanently immutable after first deploy. The shard count is written into the Temporal database schema during initialisation. Changing it requires a full data wipe and re-initialisation — all in-flight and historical workflow data is lost. Set correctly before the first tofu apply. Use 512 or higher for any production deployment.
application_database_name	temporal	Critical	Hardcoded in the schema initialisation job. Changing this after first deploy orphans the existing schema and causes Temporal server to start with an uninitialised database, crashing on every boot.
db_visibility_name	temporal_visibility	Critical	Temporal's visibility store is initialised separately from the main database. Changing this after first deploy causes Temporal to lose all workflow search/filter capability and fail to write execution records, breaking the Temporal Web UI.
db_user	temporal	High	Both temporal and temporal_visibility databases share this user. Changing the user after deploy without updating the Cloud SQL IAM grants and Secret Manager password causes all Temporal server connections to fail with authentication errors.
container_protocol	h2c	Critical	Temporal uses gRPC for all inter-service and client-to-server communication. Changing to http1 breaks gRPC entirely — SDK workers cannot connect, workflow execution stops, and the Temporal Web UI becomes non-functional. h2c (HTTP/2 cleartext) is mandatory.
postgres_instance_name	Auto-discovered from Services GCP	Critical	Must not be empty. If Services GCP has not been deployed first, or its Cloud SQL instance is not labelled managed-by=services-gcp, Temporal Common cannot resolve the instance name and the plan fails immediately.
enable_elasticsearch	false	Medium	When set to true, elasticsearch_url must point to a reachable Elasticsearch 7.x or 8.x endpoint before Temporal starts. An unreachable endpoint causes Temporal to crash on startup — it does not fall back to PostgreSQL visibility.
elasticsearch_url	""	High	Required when enable_elasticsearch = true. An empty value with Elasticsearch enabled causes Temporal server to start without a valid visibility store URL, crashing immediately. Format must be host:port or http://host:port.
elasticsearch_version	"v7"	High	Must match the actual Elasticsearch cluster version (v7 for 7.x, v8 for 8.x). A mismatch causes Temporal's index management to use incompatible mappings, resulting in visibility write failures and missing workflow entries.
elasticsearch_index_visibility	"temporal_visibility_v1"	Medium	Temporal auto-creates this index on first start. Changing the name after initial deployment means the new index is empty — all historical visibility data is in the old index and cannot be queried.
min_instance_count	1	High	Setting to 0 allows scale-to-zero. Temporal requires at least one running pod at all times to process workflow timers, activity retries, and heartbeats. Scale-to-zero causes missed timers and stalled workflows.
cpu_limit	2000m	High	Temporal's all-in-one mode runs history, matching, frontend, and worker services in a single process. Insufficient CPU (below 1000m) causes high scheduling latency and timer fires to be delayed, directly impacting workflow SLAs.
memory_limit	2Gi	High	Temporal holds shard state in memory proportional to num_history_shards. With the default 4 shards and a modest workflow load, 1Gi is the absolute minimum; 2Gi is the recommended starting point for production.
quota_memory_requests / quota_memory_limits	"4Gi" / "8Gi"	Critical	Must use binary unit suffixes (e.g., "4Gi", "8192Mi"). A bare integer is treated as bytes by Kubernetes, sets an effectively zero quota, and immediately blocks all pod scheduling.
stateful_pvc_enabled	false	High	Temporal stores all durable state in Cloud SQL PostgreSQL. Enabling PVCs adds persistent storage that is never written by Temporal, wastes resources, and can cause pod scheduling failures on Autopilot when disk quota is not available.
enable_cloudsql_volume	true	Critical	Must be true. Temporal connects to Cloud SQL via the Auth Proxy Unix socket. Setting to false causes all database connections to fail and Temporal to crash on startup. Direct private IP is not used — only the socket path.
backup_schedule	"0 2 * * *"	Medium	An empty string disables automated database backups. Without backups, a Cloud SQL failure or accidental schema mutation cannot be recovered without data loss. Always configure a schedule before go-live.
enable_pod_disruption_budget	true	Medium	Disabling PDB means GKE node upgrades can evict all Temporal pods simultaneously, causing a full service interruption including dropped gRPC connections from all SDK workers.
workload_type	"Deployment"	Medium	Temporal is stateless at the pod level (state is in PostgreSQL). Using StatefulSet is not recommended and provides no benefit; it adds complexity around pod identity and PVC management.
session_affinity	false	Low	Temporal gRPC connections use long-lived streams managed by the SDK. Session affinity is not required and can cause uneven pod load distribution. Leave disabled.
enable_vpc_sc	false	High	Requires explicit organization_id. Without it, VPC Service Controls are silently skipped, giving a false sense of perimeter security.
enable_auto_password_rotation	false	Medium	When enabled, the Cloud SQL password is rotated on a schedule. The Temporal pod must be restarted after rotation to pick up the new Secret Manager version; without a restart, Temporal continues with the old (now invalid) password until connections fail.

10. Variable Reference (All Groups)

Variables are organised into UIMeta groups for platform UI rendering:

Group	Section	Key Variables
0	Module Metadata	module_description, module_dependency, credit_cost, public_access, shared_users, deployment_id
1	Project & Identity	project_id, region
2	Deployment Identity	tenant_deployment_id, support_users, resource_labels
3	Application	application_name, application_version, application_display_name
4	Runtime & Scaling	deploy_application, min_instance_count, max_instance_count, cpu_limit, memory_limit, container_protocol, enable_image_mirroring
5	Env Vars & Secrets	environment_variables, secret_environment_variables
6	GKE Backend	service_type, workload_type, namespace_name, gke_cluster_name, session_affinity, enable_network_segmentation
7	StatefulSet	stateful_pvc_enabled (not recommended for Temporal)
8	Resource Quota	enable_resource_quota, quota_memory_requests, quota_memory_limits
9	Reliability	enable_pod_disruption_budget, pdb_min_available, enable_topology_spread
10	Observability	health_check_config, startup_probe_config, uptime_check_config, alert_policies
11	Workload Automation	initialization_jobs, cron_jobs, additional_services
12	CI/CD	enable_cicd_trigger, github_repository_url, enable_cloud_deploy
13	NFS	enable_nfs (not required for Temporal)
14	Cloud Storage	create_cloud_storage (not required for Temporal), max_images_to_retain
15	Database & Temporal-Specific	application_database_name, application_database_user, database_password_length, num_history_shards, enable_elasticsearch, elasticsearch_url, elasticsearch_version, elasticsearch_index_visibility
16	Secret Rotation	enable_auto_password_rotation
17	Backup	backup_schedule, backup_retention_days
19	Custom Domain / Static IP	enable_custom_domain, application_domains, reserve_static_ip
20	Access & IAP	enable_iap, iap_authorized_users, iap_authorized_groups
21	Cloud Armor / CDN	enable_cloud_armor, cloud_armor_policy_name
22	VPC Service Controls	enable_vpc_sc, organization_id
