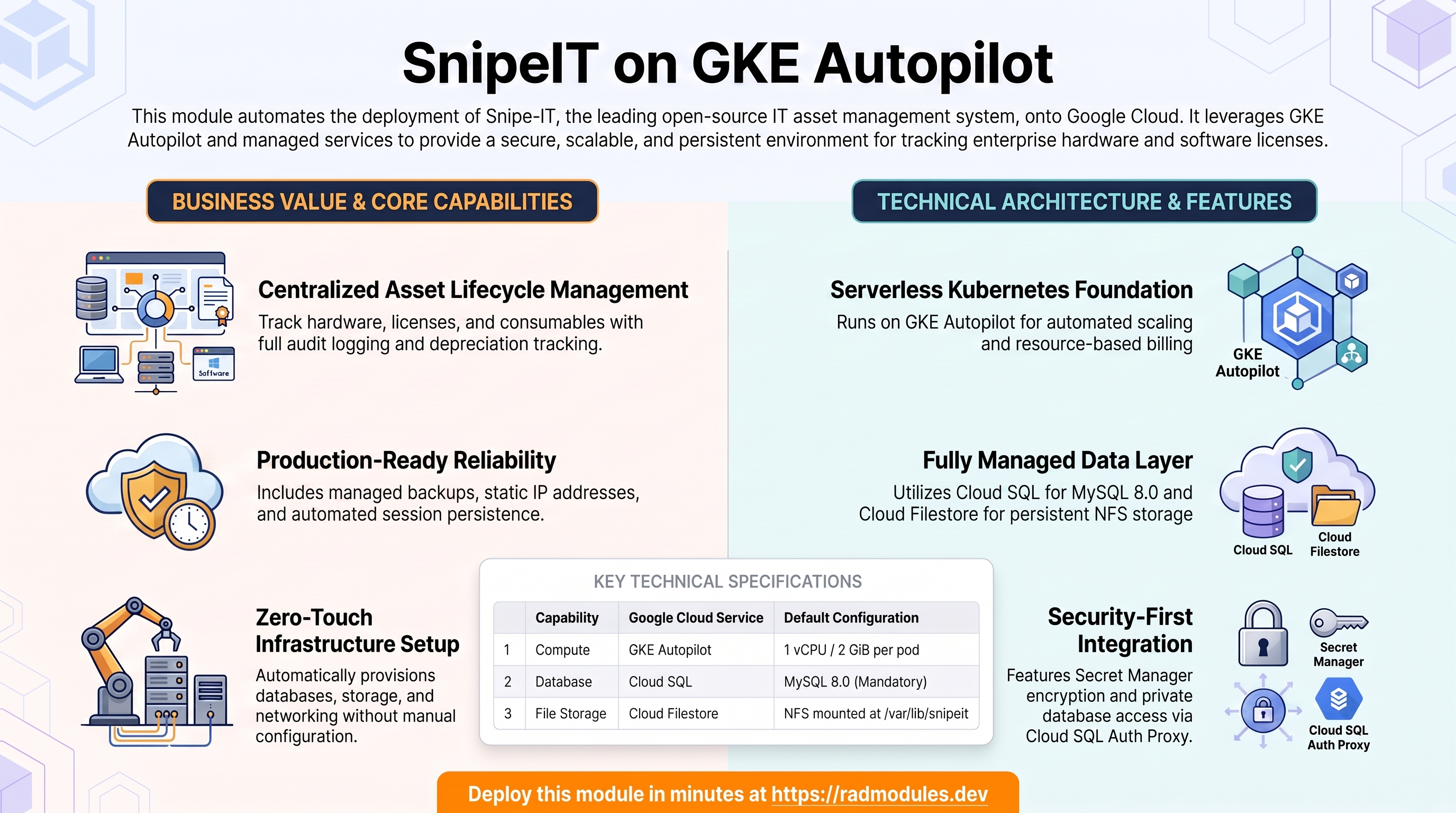

Snipe-IT on GKE Autopilot

Snipe-IT is a free, open-source IT asset and inventory management system used to track hardware, software licences, accessories, and consumables, with asset check-in/out, audit logging, depreciation, and a full REST API. It is built on Laravel/PHP and runs behind Apache. This module deploys Snipe-IT on GKE Autopilot on top of the App_GKE foundation, which provisions and manages the shared Google Cloud and Kubernetes infrastructure.

This guide focuses on the cloud services Snipe-IT uses and how to explore and operate them from the Google Cloud Console and the command line. For the mechanics that are common to every GKE application — Workload Identity, ingress, autoscaling, CI/CD, Cloud Armor, IAP, Binary Authorization, VPC Service Controls, backups, and the deployment lifecycle — refer to the App_GKE foundation guide rather than repeating them here.

---

1. Overview

Snipe-IT runs as a single PHP/Apache web workload pulled directly from the official Docker Hub image. The deployment wires together a focused set of Google Cloud services:

Capability	Google Cloud service	Notes
Compute	GKE Autopilot	Prebuilt snipe/snipe-it PHP/Apache pods on port 80, 1 vCPU / 2 GiB by default
Database	Cloud SQL for MySQL 8.0	Required — the engine is fixed at MYSQL_8_0
File persistence	Cloud Filestore (NFS)	Uploaded asset images, signatures, barcodes, and the runtime keystore persist under /var/lib/snipeit, shared across pods
Object storage	Cloud Storage	A snipeit-uploads bucket provisioned automatically
Secrets	Secret Manager	Auto-generated Laravel APP_KEY; database password managed by the foundation
Ingress	Cloud Load Balancing	External LoadBalancer with a reserved static IP; optional custom domain + managed certificate

Sensible defaults worth knowing up front:

• Prebuilt official image, no custom build. container_image_source = "prebuilt" deploys snipe/snipe-it:<application_version> (default tag v8-latest) directly from Docker Hub, mirrored into Artifact Registry when enable_image_mirroring = true. There is no Cloud Build/Dockerfile step.
• MySQL 8.0 is mandatory. SnipeIT_Common fixes database_type = "MYSQL_8_0"; other engines are not supported.
• Cloud SQL is reached via the Auth Proxy sidecar on loopback. The variant sets enable_cloudsql_volume = true and the merged config forces DB_HOST = 127.0.0.1; main.tf hard-codes db_user_env_var_name = "DB_USERNAME", db_name_env_var_name = "DB_DATABASE", and db_password_env_var_name = "DB_PASSWORD" — the Laravel-native env names, not the Foundation's generic DB_* defaults.
• Single replica by default. min_instance_count = 1, max_instance_count = 1. enable_pod_disruption_budget defaults false to match. Session state uses SESSION_DRIVER = "database" so sessions survive restarts even at one replica.
• NFS is enabled by default (enable_nfs = true, mounted at /var/lib/snipeit) so uploaded asset images, signatures, and barcodes persist and are shared across pods. network_tags = ["nfsserver"] is required for NFS connectivity.
• Session affinity is ClientIP so a client's requests reach the same pod.
• Two ordered init jobs run on every apply. db-init (creates the database/user via mysql:8.0-debian) runs first, then migrate (php artisan migrate --force against the snipe/snipe-it image) — both execute_on_apply = true, safe to re-run.
• A Laravel APP_KEY is generated automatically and stored in Secret Manager, injected as the APP_KEY secret env var. Deleting/recreating it invalidates sessions and any data Snipe-IT encrypted with the old key.
• Redis is on by default (enable_redis = true); when redis_host is blank, REDIS_HOST resolves to the NFS server IP.

---

2. Google Cloud Services & How to Explore Them

All commands assume you have run gcloud container clusters get-credentials <cluster> --region <region> --project <project> and that PROJECT, REGION, and NAMESPACE are set. The namespace and other identifiers are reported in the deployment Outputs.

A. GKE Autopilot — the Snipe-IT workload

Snipe-IT pods are scheduled on Autopilot, which bills for the CPU/memory the pods actually request. The workload deploys as a Deployment (not StatefulSet) reading/writing state to the shared NFS volume and Cloud SQL.

• Console: Kubernetes Engine → Workloads → select the Snipe-IT workload for pods, revisions, and events. Kubernetes Engine → Services & Ingress shows the external IP.
• CLI:

  kubectl get pods,svc -n "$NAMESPACE"
  kubectl logs -n "$NAMESPACE" deploy/<service-name> --tail=100
  kubectl describe pod -n "$NAMESPACE" -l app=<service-name>

See App_GKE for how Autopilot, scaling, and the workload type (Deployment vs StatefulSet) are managed.

B. Cloud SQL for MySQL 8.0

Snipe-IT stores all application data (assets, licences, accessories, consumables, users, audit trail) in a managed Cloud SQL for MySQL 8.0 instance. Pods reach it through the Cloud SQL Auth Proxy sidecar on 127.0.0.1:3306; no public IP is exposed. On first deploy the db-init job creates the application database, user, and grants; the migrate job then runs Laravel's artisan migrate --force to create the schema.

• Console: SQL → select the instance for connections, backups, flags, metrics.
• CLI:

  gcloud sql instances list --project "$PROJECT"
  gcloud sql instances describe <instance-name> --project "$PROJECT"
  gcloud sql connect <instance-name> --user=<db-user> --database=<db-name> --project "$PROJECT"

The instance name, database, user, and the Secret Manager secret holding the password are all in the Outputs. See App_GKE for the connection model, automated backups, and password rotation.

C. Cloud Storage & file persistence

A dedicated Cloud Storage bucket (suffix snipeit-uploads) is provisioned automatically and the workload service account is granted access. Separately, Snipe-IT's runtime data tree (uploaded asset images, signatures, barcodes, keystore) lives on NFS (Cloud Filestore) at /var/lib/snipeit, shared across pods.

• Console: Cloud Storage → Buckets; Filestore → Instances.
• CLI:

  gcloud storage buckets list --project "$PROJECT" --filter="name~snipeit-uploads"
  gcloud filestore instances list --project "$PROJECT"
  kubectl get pvc -n "$NAMESPACE"

See App_GKE for CMEK options and GCS Fuse mounts.

D. Secret Manager

One Snipe-IT secret is generated automatically and stored in Secret Manager: the Laravel APP_KEY (base64:<...>, 32 random bytes base64-encoded). The database password is managed separately by the foundation. On GKE, secrets are projected into pods via the Secret Store CSI driver.

• Console: Security → Secret Manager.
• CLI:

  gcloud secrets list --project "$PROJECT" --filter="name~snipeit"
  gcloud secrets versions access latest --secret=<app-key-secret-name> --project "$PROJECT"

See App_GKE for the Secret Store CSI integration and rotation.

E. Networking & ingress

By default the workload is exposed through an external Cloud Load Balancing IP (service_type = LoadBalancer, reserve_static_ip = true so the address survives redeploys). enable_custom_domain = true provisions a Kubernetes Ingress; add hostnames via application_domains for a Google-managed certificate.

• Console: Network services → Load balancing; VPC network → IP addresses.
• CLI:

  kubectl get svc,ingress -n "$NAMESPACE"
  gcloud compute addresses list --project "$PROJECT"

See App_GKE for custom domains, Cloud CDN, and static IP details.

F. Cloud Logging & Monitoring

Pod stdout/stderr flow to Cloud Logging; GKE and Cloud SQL metrics flow to Cloud Monitoring. Optional uptime checks and alert policies are available (uptime_check_config.enabled = false by default).

• Console: Logging → Logs Explorer; Monitoring → Dashboards / Alerting.
• CLI:

  gcloud logging read 'resource.type="k8s_container" AND resource.labels.namespace_name="'"$NAMESPACE"'"' \
    --project "$PROJECT" --limit 50

---

3. Snipe-IT Application Behaviour

• First-deploy database setup. The db-init job runs on mysql:8.0-debian, idempotently creating the application database, user, and grants (safe to re-run — execute_on_apply = true, max_retries = 3).
• Explicit migration job, not boot-time auto-migration. Unlike some Laravel apps that migrate on container start, Snipe-IT here runs an explicit migrate init job (php /var/www/html/artisan migrate --force, depends on db-init, max_retries = 2) so the schema is ready before the first app revision serves traffic. The official image's own boot-time auto-migration behaviour, if any, is a secondary safety net.
• DB env-var mapping to Laravel names. main.tf hard-codes db_user_env_var_name = "DB_USERNAME", db_name_env_var_name = "DB_DATABASE", and db_password_env_var_name = "DB_PASSWORD" so the Foundation injects the tenant-scoped DB credentials directly under the names Snipe-IT's Laravel config expects — no entrypoint aliasing needed. DB_HOST is forced to 127.0.0.1 (the Auth Proxy sidecar) and DB_PORT = "3306" is set by SnipeIT_Common.
• Session/cache/queue persistence. SnipeIT_Common sets SESSION_DRIVER = "database", CACHE_DRIVER = "file", and QUEUE_DRIVER = "database" so sessions and queued jobs survive pod restarts.
• APP_URL is derived automatically. SnipeIT_Common sets APP_URL from the predicted GKE service URL when known; override via environment_variables if you assign a custom domain after deploy.
• Health path. Default startup probe is TCP (30 s initial delay, 15 s period, failure threshold 20 — generous to allow first-boot DB setup). Default liveness probe is HTTP GET / (300 s initial delay, 60 s period, failure threshold 3) — Snipe-IT serves its login page at / unauthenticated, confirming the PHP app and DB connection are healthy.
• Inspect the init jobs and running config:

  kubectl get jobs -n "$NAMESPACE"
  kubectl logs -n "$NAMESPACE" job/<db-init-job-name>
  kubectl logs -n "$NAMESPACE" job/<migrate-job-name>
  kubectl exec -n "$NAMESPACE" deploy/<service-name> -- env | grep DB_

---

4. Configuration Variables

Variables are grouped exactly as they appear on the deployment platform. Only settings specific to or notable for Snipe-IT are listed; every other input is inherited from App_GKE with its standard behaviour and defaults.

Group 3 — Application Identity

Variable	Default	Description
application_name	snipeit	Base name for resources. Do not change after first deploy.
application_version	v8-latest	Tag of the official snipe/snipe-it image. Use a pinned version in production.
php_memory_limit	512M	PHP memory_limit. Accepted but not applied by SnipeIT_Common — the prebuilt image keeps its own PHP config.
upload_max_filesize / post_max_size	64M / 64M	PHP upload / POST size. upload_max_filesize must not exceed post_max_size (plan-time guard); neither is applied to the prebuilt image.

Group 4 — Runtime & Scaling

Variable	Default	Description
container_image_source	prebuilt	Deploys the official image directly; "custom" would build via Cloud Build.
cpu_limit / memory_limit	1000m / 2Gi	Per-pod CPU/memory limits.
container_port	80	Snipe-IT (Apache) listens on port 80.
min_instance_count / max_instance_count	1 / 1	HPA replica bounds.
enable_cloudsql_volume	true	Auth Proxy sidecar (loopback) — required on GKE; plan-time guard rejects it when database_type = "NONE".

Group 6 — GKE Backend & Cluster

Variable	Default	Description
service_type	LoadBalancer	External IP for the Snipe-IT UI.
workload_type	null → Deployment	Deployment (NFS-backed).
session_affinity	ClientIP	Sticky routing so a client reaches the same pod.

Group 13 — NFS

Variable	Default	Description
enable_nfs	true	NFS is on by default so uploaded asset images/signatures/barcodes persist and are shared. Keep enabled.
nfs_mount_path	/var/lib/snipeit	Where Snipe-IT stores uploads and runtime data.

Group 15 — Redis

Variable	Default	Description
enable_redis	true	Injects REDIS_HOST/REDIS_PORT. Plan-time guard requires either redis_host set or enable_nfs = true (NFS server IP is the fallback Redis host).
redis_host	""	Leave blank to use the NFS server IP.

Group 16 — Database

Variable	Default	Description
database_type	null → MYSQL_8_0	Fixed by SnipeIT_Common; other engines are not supported.
application_database_name	snipeit	Database name. Immutable after first deploy.
application_database_user	snipeit	Application database user; password auto-generated in Secret Manager.

Group 19 — Custom Domain, Static IP & Networking

Variable	Default	Description
enable_custom_domain	true	Provisions a Kubernetes Ingress for custom hostnames.
reserve_static_ip	true	Stable external IP across redeploys.
network_tags	["nfsserver"]	Required for NFS connectivity — do not remove unless NFS is disabled.

All other inputs follow standard App_GKE behaviour.

---

5. Outputs

These values are returned on a successful deployment and are the quickest way to locate and explore the running resources.

Output	Description
service_name	Kubernetes Service name.
namespace	Namespace the workload runs in.
service_cluster_ip	In-cluster ClusterIP.
stage_service_cluster_ips	Map of ClusterIPs for stage-specific services.
service_external_ip	External LoadBalancer IP (when a static IP is reserved).
service_url	URL to reach Snipe-IT.
database_instance_name	Cloud SQL instance name.
database_name / database_user	Application database name / user.
database_password_secret	Secret Manager secret holding the DB password.
database_host / database_port	DB endpoint (127.0.0.1 via the Auth Proxy) / port.
storage_buckets	Created Cloud Storage buckets.
network_name / network_exists / regions	VPC network, presence, available regions.
container_image / container_registry	Deployed image and Artifact Registry repo.
monitoring_enabled / monitoring_notification_channels	Monitoring status and channels.
initialization_jobs / db_import_job	Names of the setup (db-init, migrate) and (optional) import jobs.
deployment_id / tenant_id / resource_prefix	Naming identifiers.
project_id / project_number	Project identifiers.
cicd_enabled / cicd_configuration	CI/CD status and details (repo, trigger, registry).
github_repository_url / github_repository_owner / github_repository_name	CI/CD GitHub details.
artifact_registry_repository / cloudbuild_trigger_name / cloudbuild_trigger_id	Registry and build trigger.
kubernetes_ready	Whether the cluster/workload is ready.
vpc_sc_enabled / vpc_sc_perimeter_name / vpc_sc_dry_run_mode	VPC-SC status.
audit_logging_enabled / artifact_registry_cmek_enabled	Audit logging and CMEK status.

---

6. Configuration Pitfalls & Sensible Defaults

Risk: Critical (data loss / outage / security) — High (service degraded) — Medium (cost or partial degradation) — Low (minor).

Inherited plan-time validation. This module passes its configuration through the App_GKE foundation engine, which validates values and combinations at plan time — a StatefulSet forced alongside a stateless setting, IAP with no authorized identities, quota_memory_* given as bare integers, an out-of-range container_port/ backup_retention_days. SnipeIT_GKE adds its own guards (upload_max_filesize ≤ post_max_size, min_instance_count ≤ max_instance_count, Redis needs redis_host or NFS, IAP needs both OAuth values, enable_cloudsql_volume needs database_type != "NONE"). Invalid configuration fails the plan with a clear, named error before any resource is created, so most mistakes below are caught up front rather than at apply or runtime.

Setting	Sensible value	Risk	Consequence if wrong
database_type	null (→ MYSQL_8_0)	Critical	Snipe-IT requires MySQL; other engines are not supported by SnipeIT_Common.
application_database_name / application_database_user	Set once	Critical	Immutable after first deploy; renaming recreates the DB/user and orphans all data.
APP_KEY (auto-generated)	Never change	Critical	Regenerating the Laravel key after first boot invalidates sessions and any data encrypted with the old key (e.g., stored LDAP credentials).
enable_nfs	true	High	Disabling it makes uploaded asset images/signatures/barcodes ephemeral — isolated per pod and lost on restart.
enable_cloudsql_volume	true	High	The Auth Proxy sidecar on 127.0.0.1:3306 is required for DB connectivity on GKE.
max_instance_count	1	High	Scaling beyond 1 without verified shared-storage/lock behaviour risks split sessions and NFS/DB lock contention.
session_affinity	ClientIP	High	Without stickiness, requests bounce between pods and disrupt authenticated sessions.
network_tags	["nfsserver"]	High	Removing the tag while NFS is enabled breaks pod-to-Filestore connectivity.
memory_limit	2Gi	High	Below 512Mi the PHP/Apache pod OOMs under load.
upload_max_filesize / post_max_size	upload_max_filesize ≤ post_max_size	Medium	The wrong order silently truncates uploads at the PHP layer; plan-time guard blocks it, but only for these two variables.
quota_memory_requests / _limits	binary units (4Gi, 8192Mi)	Critical	Bare integers are treated as bytes and block all pod scheduling in the namespace.
reserve_static_ip	true	Medium	Without it, the external IP can change across redeploys, breaking DNS and any bookmarked/API-integrated URL.
backup_retention_days	7 (raise for prod)	Medium	Too short for compliance retention.

---

For the foundation behaviour referenced throughout — IAM and Workload Identity, autoscaling, ingress and certificates, CI/CD, Cloud Armor, IAP, Binary Authorization, VPC-SC, backups, and image mirroring — see App_GKE. Snipe-IT-specific application configuration shared with the Cloud Run variant (image, APP_KEY secret, init jobs) is described in modules/SnipeIT_Common/README.md — no standalone docs/modules/ SnipeIT_Common.md guide exists yet.
