Sample GKE Module — Configuration Guide
Sample_GKE is a wrapper module that sits on top of App_GKE. It deploys a pre-configured reference Flask application (Python 3.11, PostgreSQL 15, optional Redis, optional NFS) on GKE Autopilot. Its purpose is to serve as a working example of how to build a custom application module on top of App_GKE.
Most configuration variables in Sample_GKE are passed through unchanged to App_GKE. For the meaning, options, validation steps, and gcloud CLI commands for any variable that appears in App_GKE, refer to the App_GKE Configuration Guide. This guide documents only what is unique to Sample_GKE: its layered architecture, the pre-configured application it ships, and the specific behaviours it imposes on top of App_GKE.
Note: Variables marked as platform-managed are set and maintained by the platform. You do not normally need to change them.

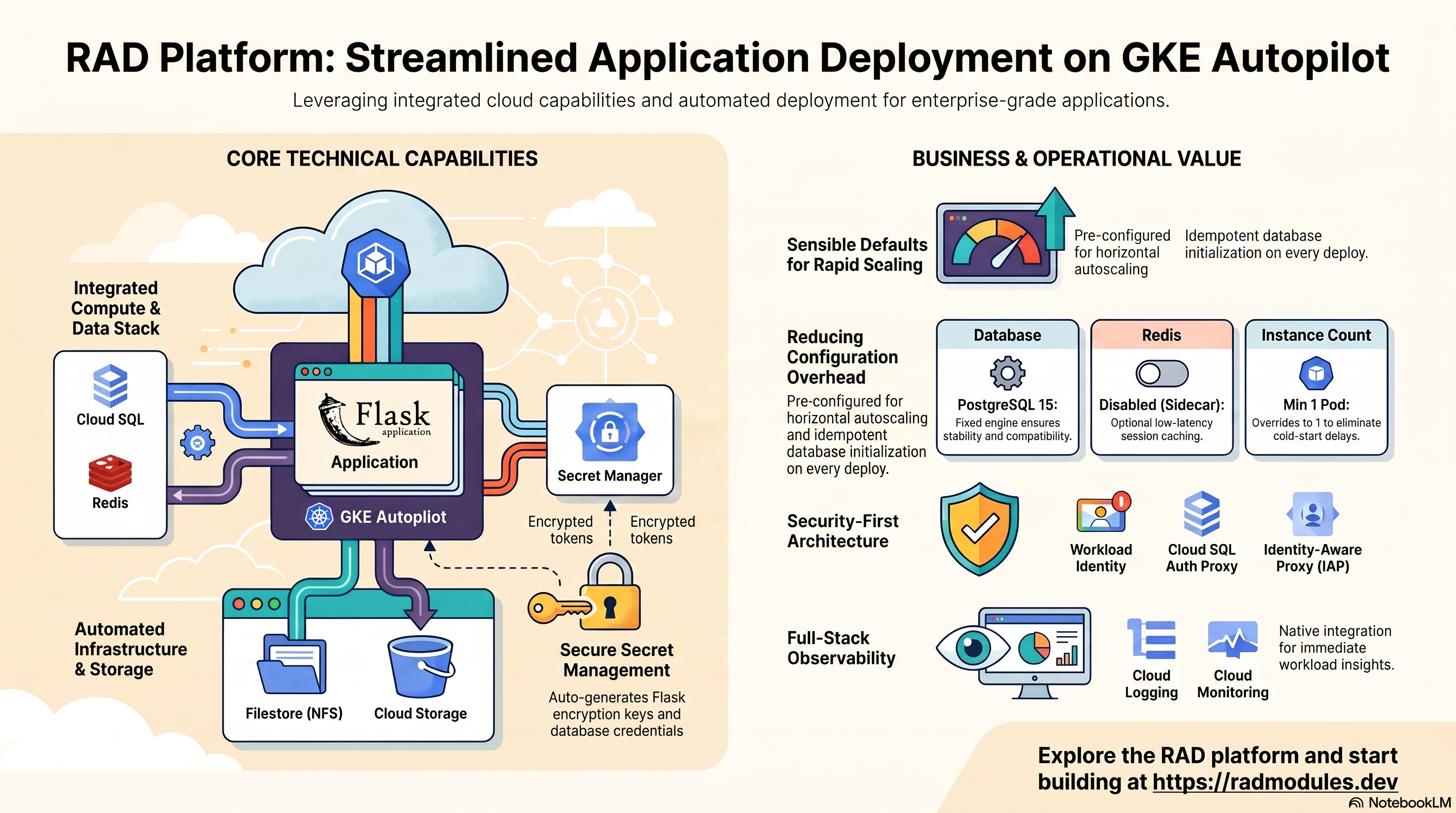

Module Architecture
Sample GKE composes two internal layers:
Sample_GKE
├── Sample_Common (application layer — Flask app, secrets, db-init job, Redis service)
└── App_GKE (infrastructure layer — GKE Autopilot, Cloud SQL, NFS, networking, CI/CD)
Sample Common is a shared internal module that produces the application-specific configuration object (application_config) consumed by App GKE. It is responsible for:
- Generating a random 32-character Flask
SECRET_KEYand storing it in Secret Manager. - Defining a
db-initKubernetes Job (usingpostgres:15-alpine) that runs the bundled database initialisation script (scripts/db-init.sh) on first deployment. - Optionally defining an internal Redis additional service (using
redis:alpine) whenenable_redis = true. - Providing a custom Cloud Build configuration that builds the sample Flask application from the bundled Dockerfile in
Sample_Common/scripts/.
App GKE receives the merged configuration from Sample Common and provisions all GCP and Kubernetes infrastructure: the GKE cluster, Cloud SQL instance, NFS PersistentVolume, Artifact Registry repository, Secret Manager secrets, IAM bindings, networking, CI/CD pipelines, and observability resources.
You do not interact with Sample Common directly. All inputs are exposed as variables on Sample GKE itself.
Pre-configured Application
When deployed with default settings, Sample GKE provides:
| Component | Details |
|---|---|
| Application framework | Flask (Python 3.11-slim), listening on port 8080 |
| Container image source | custom — built from the bundled Dockerfile via Cloud Build |
| Database | PostgreSQL 15, with a db-init Kubernetes Job that runs on first deployment |
| Secret | SECRET_KEY — auto-generated 32-character random string, stored in Secret Manager, injected as the SECRET_KEY environment variable |
| Redis | Optional — when enable_redis = true, an internal Redis (redis:alpine) additional service is deployed alongside the application |
| NFS | Optional — when enable_nfs = true, a shared NFS volume is mounted at nfs_mount_path |
The db-init job and the SECRET_KEY secret are managed entirely by the module. You do not need to pre-create them.
Behaviours Unique to Sample GKE
1. Minimum Instance Count Override
The min_instance_count variable is exposed so you can tune it, but Sample GKE internally overrides the value passed to App GKE to be at least 1:
# sample.tf
sample_module = merge(module.sample_app.config, {
min_instance_count = 1 # Always keep at least 1 pod warm
})
Why: Unlike Cloud Run, GKE Autopilot does not natively support true scale-to-zero for standard Deployments. Setting min_instance_count = 1 ensures at least one pod is always ready to serve traffic without a cold-start delay. If you set min_instance_count = 0 in your configuration, the module overrides it to 1 internally.
2. Redis Host Fallback to Sidecar (127.0.0.1)
When enable_redis = true and redis_host is not set (or is empty), Sample GKE injects REDIS_HOST=127.0.0.1 into the application:
# sample.tf
REDIS_HOST = var.enable_redis ? (
var.redis_host != null && var.redis_host != "" ? var.redis_host : "127.0.0.1"
) : ""
Why: In GKE, the Redis additional service (a separate redis:alpine Deployment) runs within the cluster. Using 127.0.0.1 as the fallback host is appropriate for configurations where Redis runs locally alongside the application. For an external Redis instance (e.g. Cloud Memorystore), set redis_host explicitly to the instance's private IP address.
Contrast with Sample CloudRun: Cloud Run does not support pod-level co-location, so Sample CloudRun does not fall back to 127.0.0.1 — you must always provide an explicit redis_host when using Redis with Cloud Run.
3. Explicit Secret Value Injection (explicit_secret_values)
Sample GKE passes the raw value of the Flask SECRET_KEY directly to App GKE via the explicit_secret_values mechanism:
# main.tf
explicit_secret_values = {
SECRET_KEY = module.sample_app.secret_values["FLASK_SECRET_KEY"]
}
Why: When a Secret Manager secret is created and then immediately referenced by a Kubernetes workload in the same Terraform apply, there is a read-after-write consistency window during which the secret version may not yet be globally available. By passing the raw value directly, App GKE can create the Kubernetes Secret object without needing to read back from Secret Manager on the first apply. On subsequent applies, the secret is already present and this mechanism has no visible effect.
This is a GKE-specific pattern. Sample CloudRun does not use explicit_secret_values because Cloud Run fetches secrets from Secret Manager at instance startup (after propagation is complete), avoiding this timing issue.
4. Resource Naming (resource_prefix)
Sample GKE computes a deterministic resource_prefix and passes it to Sample Common so that the Flask SECRET_KEY secret name is aligned with the naming convention used by App GKE for all other resources:
resource_prefix = "app${var.application_name}${var.tenant_deployment_id}${local.random_id}"
This ensures the Secret Manager secret created by Sample Common is named consistently with the secrets, Cloud SQL instance, GCS buckets, and Kubernetes resources created by App GKE. You do not need to set this — it is computed automatically.
Configuration Reference
All configuration variables in Sample GKE are passed through to App GKE. The table below maps each configuration group to the corresponding section of the App GKE Configuration Guide, noting any Sample GKE-specific defaults or overrides.
| Group | Description | Sample GKE Defaults / Overrides | Reference |
|---|---|---|---|
| Group 0 | Module Metadata & Configuration | module_description defaults to "Sample_GKE: A sample application module…". module_documentation points to the GKE App docs URL. module_services includes GKE Autopilot, Cloud Build, Artifact Registry, Cloud SQL, Filestore (NFS), Secret Manager, Workload Identity, Cloud Monitoring, and Uptime Checks. All other variables are identical to App_GKE. | App_GKE §1 Module Overview |
| Group 1 | Project & Identity | No changes. project_id, tenant_deployment_id, support_users, resource_labels, and resource_creator_identity behave identically to App_GKE. | App_GKE §2 IAM & Access Control |
| Group 2 | Application Identity | application_name defaults to "sample". application_display_name defaults to "Sample Application". application_description defaults to "Sample application to showcase GKE Autopilot features". application_version defaults to "latest". All other behaviour is identical to App_GKE. | App_GKE §1 Module Overview |
| Group 3 | Runtime & Scaling | container_image_source defaults to "custom" (the Flask image is built by Cloud Build). container_image defaults to "" (empty — the AR image path is derived automatically from application_name). min_instance_count variable defaults to 0, but is overridden to 1 internally by the module (see Minimum Instance Count Override above). max_instance_count defaults to 3. All other variables (container_port, container_protocol, container_resources, timeout_seconds, enable_image_mirroring, enable_vertical_pod_autoscaling, enable_cloudsql_volume, cloudsql_volume_mount_path, service_annotations, service_labels) behave identically to App_GKE. | App_GKE §3.A Compute (GKE Autopilot) |
| Group 4 | Environment Variables & Secrets | environment_variables and secret_environment_variables are passed through to App_GKE. Additionally, the module automatically injects ENABLE_REDIS, REDIS_HOST, and REDIS_PORT (see Redis Host Fallback above) and SECRET_KEY (sourced from the auto-generated Secret Manager secret). secret_rotation_period, secret_propagation_delay, and manage_storage_kms_iam behave identically to App_GKE. | App_GKE §3.A Compute (GKE Autopilot) |
| Group 5 | GKE Backend Configuration | All variables (gke_cluster_name, gke_cluster_selection_mode, namespace_name, workload_type, service_type, session_affinity, enable_multi_cluster_service, configure_service_mesh, enable_network_segmentation, termination_grace_period_seconds, deployment_timeout, prereq_gke_subnet_cidr) are passed through unchanged. Refer to the base guide for full descriptions. | App_GKE §3.A Compute (GKE Autopilot) |
| Group 6 | Jobs & Scheduled Tasks | initialization_jobs defaults to the pre-configured db-init job (using postgres:15-alpine and the bundled db-init.sh script). You may override this with a custom job list. When enable_redis = true, an internal Redis additional service is added automatically — you do not need to declare it in additional_services. cron_jobs and additional_services are passed through to App_GKE unchanged. | App_GKE §3.E Initialization Jobs & CronJobs |
| Group 7 | CI/CD & GitHub Integration | All variables (enable_cicd_trigger, github_repository_url, github_token, github_app_installation_id, cicd_trigger_config, enable_cloud_deploy, cloud_deploy_stages, enable_binary_authorization) are passed through unchanged. Refer to the base guide for full descriptions. | App_GKE §6 CI/CD & Delivery |
| Group 8 | Storage & Filesystem — NFS | All variables (enable_nfs, nfs_mount_path, nfs_instance_name, nfs_instance_base_name) are passed through unchanged. Refer to the base guide for full descriptions. | App_GKE §3.C Storage (NFS / GCS / GCS Fuse) |
| Group 9 | Storage & Filesystem — GCS | All variables (create_cloud_storage, storage_buckets, gcs_volumes) are passed through unchanged. Sample_Common does not define any additional GCS buckets beyond what you configure here. Refer to the base guide for full descriptions. | App_GKE §3.C Storage (NFS / GCS / GCS Fuse) |
| Group 10 | Database Configuration | All variables (database_type, sql_instance_name, sql_instance_base_name, application_database_name, application_database_user, database_password_length, enable_postgres_extensions, postgres_extensions, enable_mysql_plugins, mysql_plugins, enable_auto_password_rotation, rotation_propagation_delay_sec) are passed through unchanged. application_database_name defaults to "sampledb" and application_database_user defaults to "sampleuser" in Sample_GKE. The database is automatically initialised by the db-init job. Refer to the base guide for full descriptions. | App_GKE §3.B Database (Cloud SQL) |
| Group 11 | Backup Schedule & Retention | Variables backup_schedule, backup_retention_days, enable_backup_import, backup_source, backup_format, and backup_file are passed through unchanged. Additionally, backup_uri is an application-specific user-facing variable mapped to backup_file when passed to App_GKE. Refer to the base guide for full descriptions. | App_GKE §8.B Backup Import & Recovery |
| Group 12 | Custom SQL Scripts | All variables (enable_custom_sql_scripts, custom_sql_scripts_bucket, custom_sql_scripts_path, custom_sql_scripts_use_root) are passed through unchanged. Refer to the base guide for full descriptions. | App_GKE §3.E Initialization Jobs & CronJobs |
| Group 13 | Observability & Health | Probe routing in Sample_GKE: startup_probe_config and health_check_config each serve a dual role — they are passed to Sample_Common (as startup_probe and liveness_probe respectively) to configure the Kubernetes container probes, and also forwarded directly to App_GKE (using the same startup_probe_config / health_check_config names) to configure the load balancer backend health checks. Other App_GKE wrapper modules use separate startup_probe/liveness_probe variables for container probes; Sample_GKE consolidates both paths into the single _config pair. alert_policies and uptime_check_config are passed through unchanged. | App_GKE §5 Traffic & Ingress |
| Group 14 | Reliability Policies | All variables related to pod disruption budgets, HPA behaviour, and reliability settings are passed through unchanged. Refer to the base guide for full descriptions. | App_GKE §7 Reliability & Scheduling |
| Group 15 | Resource Quota | All variables related to Kubernetes namespace resource quotas are passed through unchanged. Refer to the base guide for full descriptions. | App_GKE §7.C Resource Quotas |
| Group 16 | Custom Domain, Static IP & Network Configuration | All variables (application_domains, enable_custom_domain, reserve_static_ip, static_ip_name, enable_cdn, admin_ip_ranges, network_tags, enable_vpc_sc) are passed through unchanged. Refer to the base guide for full descriptions. | App_GKE §5 Traffic & Ingress |
| Group 17 | Identity-Aware Proxy | All variables (enable_iap, iap_authorized_users, iap_authorized_groups, iap_oauth_client_id, iap_oauth_client_secret, iap_support_email) are passed through unchanged. Refer to the base guide for full descriptions. | App_GKE §4.B Identity-Aware Proxy (IAP) |
| Group 18 | Cloud Armor | All variables (enable_cloud_armor, cloud_armor_policy_name) are passed through unchanged. Refer to the base guide for full descriptions. | App_GKE §4.A Cloud Armor WAF |
| §3.D | Networking & Network Policies | All variables (enable_network_segmentation, network_tags, admin_ip_ranges) are passed through unchanged. Refer to the base guide for full descriptions. | App_GKE §3.D Networking & Network Policies |
| §3.F | Additional Services | additional_services is passed through unchanged. When enable_redis = true, Sample_GKE automatically injects an internal Redis additional service — you do not need to declare it separately. Refer to the base guide for full descriptions. | App_GKE §3.F Additional Services |
| §4.C | Binary Authorization | enable_binary_authorization is passed through unchanged. Refer to the base guide for full descriptions. | App_GKE §4.C Binary Authorization |
| §4.D | VPC Service Controls | enable_vpc_sc is passed through unchanged. Refer to the base guide for full descriptions. | App_GKE §4.D VPC Service Controls |
| §4.E | Secrets Store CSI | Always enabled — the CSI driver is used for all deployments. Secrets are fetched from Secret Manager at pod start and never written to Terraform state. | App_GKE §4.E Secrets Store CSI |
| §5.B | Cloud CDN | enable_cdn is passed through unchanged. Refer to the base guide for full descriptions. | App_GKE §5.B Cloud CDN |
| §5.C | Static IP | reserve_static_ip and static_ip_name are passed through unchanged. Refer to the base guide for full descriptions. | App_GKE §5.C Static IP |
| §7.A | Pod Disruption Budget | enable_pod_disruption_budget and related variables are passed through unchanged. Refer to the base guide for full descriptions. | App_GKE §7.A Pod Disruption Budget |
| §7.B | Topology Spread | enable_topology_spread and related variables are passed through unchanged. Refer to the base guide for full descriptions. | App_GKE §7.B Topology Spread |
| §7.D | Auto Password Rotation | enable_auto_password_rotation and rotation_propagation_delay_sec are passed through unchanged. Refer to the base guide for full descriptions. | App_GKE §7.D Auto Password Rotation |
| §8.A | Redis / Memorystore | enable_redis, redis_host, redis_port, and redis_auth are passed through to App_GKE. Additionally, Sample_GKE automatically injects ENABLE_REDIS, REDIS_HOST, and REDIS_PORT environment variables (see Redis Host Fallback above). enable_redis defaults to false. | App_GKE §8.A Redis / Memorystore |
| §8.C | Service Mesh | configure_service_mesh is passed through unchanged. Refer to the base guide for full descriptions. | App_GKE §8.C Service Mesh |
| §8.D | Multi-Cluster Services | enable_multi_cluster_service is passed through unchanged. Refer to the base guide for full descriptions. | App_GKE §8.D Multi-Cluster Services |
| StatefulSet | StatefulSet Configuration | stateful_pvc_enabled (default false), stateful_pvc_size (default "10Gi"), stateful_pvc_mount_path (default "/data"), stateful_pvc_storage_class (default "standard-rwo"), stateful_headless_service (default true), stateful_pod_management_policy (default "OrderedReady"), stateful_update_strategy (default "RollingUpdate") are all passed through unchanged. Only used when workload_type = "StatefulSet". | App_GKE §3.A Compute (GKE Autopilot) |
| Networking | Deployment Region & Network | deployment_region (default "us-central1") and network_name (default "vpc-network") control which GCP region and VPC network are used when auto-discovery cannot find a Services_GCP-managed resource. | App_GKE |
| Misc | Additional App-Specific Variables | application_module (default "", validates against "sample") allows selecting the Sample pre-configured module. backup_file (default "backup.sql") is the internal file name for backup import within the backup bucket. explicit_secret_values and scripts_dir are internal pass-through variables used by the module wiring. binauthz_evaluation_mode (default "ALWAYS_ALLOW") controls the Binary Authorization enforcement mode. | App_GKE |
Redis Configuration Summary
The table below summarises the three Redis-related variables and how they interact with the module's behaviour. The Redis integration is provided by App_GKE — see §8.A Redis / Memorystore for the full integration reference.
| Variable | Default | Behaviour when enable_redis = true |
|---|---|---|
enable_redis | false | Deploys an internal redis:alpine additional service. Injects ENABLE_REDIS=true, REDIS_HOST, and REDIS_PORT into the application container. |
redis_host | "" | If left empty, REDIS_HOST is set to 127.0.0.1 (local fallback). If set to an IP or hostname, that value is used instead (for external Redis such as Cloud Memorystore). |
redis_port | 6379 (number) | Injected as REDIS_PORT. Change only if your Redis instance uses a non-standard port. |
redis_auth | "" | If set, stored in Secret Manager and injected securely. Leave empty for unauthenticated Redis (acceptable for internal cluster services on a private network). |
Configuration Pitfalls & Sensible Defaults
The table below identifies the variables most commonly misconfigured in Sample GKE deployments. Because Sample GKE is the reference implementation used to test App GKE Foundation Module changes, the pitfalls here also apply to any new GKE application module built from this template.
Risk levels: Critical (data loss, full outage, security breach) — High (service unavailable or significant degradation) — Medium (degraded function or increased cost) — Low (minor impact).
| Variable | Sensible Default | Risk | Consequence of Incorrect Value |
|---|---|---|---|
application_name | "sample" (default; do not change after first deploy) | Critical | Embedded in GKE namespace, Artifact Registry repo, and Secret Manager secret IDs (FLASK_SECRET_KEY). Changing recreates all named resources. Existing secrets are orphaned and new random values are generated. |
tenant_deployment_id | Match environment: "prod", "staging", "dev" | Critical | Changing after first deploy orphans the old Cloud SQL instance and Secret Manager secrets. A new empty database is provisioned. |
application_version | A pinned tag (e.g. "1.0.0"); avoid "latest" in production | Medium | "latest" makes rollback ambiguous on GKE — Kubernetes cannot distinguish between two pulls of the same tag from different builds. Pin to a specific digest for staging/production. |
container_port | 8080 (Flask/Gunicorn default) | Critical | Mismatch: the GKE liveness and readiness probes fail. The pod never enters the Ready state. Traffic never reaches the Flask app. All requests return 502 from the load balancer. |
quota_memory_requests | "512Mi" minimum (binary suffix required) | Critical | A bare integer like "512" is treated as 512 bytes by Kubernetes. The ResourceQuota rejects every pod — all pods fail to schedule. Always use "512Mi" or "1Gi". This is the most common cause of silent scheduling failures when using Sample GKE for Foundation testing. |
quota_memory_limits | "1Gi" (must be ≥ quota_memory_requests) | Critical | Same bare-integer issue. Always use binary suffixes (Mi, Gi). |
min_instance_count | 0 for dev/testing (scale-to-zero) | Medium | 0 during load testing: cold starts (pod scheduling + image pull) add noise to latency measurements. Set min_instance_count = 1 when benchmarking App GKE Foundation changes. |
max_instance_count | 1 for basic testing; increase only with DB connection pool headroom | High | Exceeding Cloud SQL connection limit during load tests: FATAL: sorry, too many clients already. All Flask pods fail DB queries simultaneously. |
container_resources | { cpu_limit = "1000m", memory_limit = "512Mi" } (default) | Medium | Memory too low (< 128Mi): Flask is OOMKilled on startup when loading Secret Manager client libraries. GKE Autopilot enforces a minimum of 512Mi — requests below the minimum are raised silently. |
FLASK_SECRET_KEY (generated secret) | Auto-generated 32-character random string stored in Secret Manager | High | Not injected into the Flask container: SECRET_KEY is unset, Flask raises RuntimeError on the first session or CSRF operation. Retrieve from Secret Manager to verify injection. |
enable_redis | false (default) | Low | true without redis_host configured: REDIS_HOST is empty; the Flask app raises ConnectionRefusedError on startup if it tries to connect to Redis. Only enable when specifically testing the Redis integration path in the Foundation Module. |
redis_host | Private IP of Redis instance (or "127.0.0.1" for in-cluster sidecar testing) | High | Wrong IP: Flask fails to connect to Redis on every request that uses the cache/session. Set to "127.0.0.1" when testing with the sidecar Redis deployment that App GKE provisions when enable_redis = true and redis_host = "". |
workload_type | null (auto-selects Deployment; appropriate for the stateless hello-world pattern) | Medium | "StatefulSet" for a stateless sample app: creates unnecessary StatefulSet infrastructure. StatefulSets are slower to update and roll back. For Foundation testing keep null or "Deployment". |
startup_probe.path | "/healthz" (Flask route returning 200) | Critical | "/healthz" not implemented in the custom Flask build: GKE kills the pod before it serves traffic. Implement with @app.route('/healthz') / return 'ok', 200. |
liveness_probe.path | "/healthz" — must be fast and non-blocking | High | Health endpoint that makes a DB call or runs expensive logic: if it times out, GKE restarts all healthy pods simultaneously. Keep the health endpoint < 100 ms. |
enable_nfs | false (default for Sample; the reference app does not require shared storage) | Low | true without an NFS server reachable from the cluster: the NFS mount hangs and the pod never becomes Ready. Only enable when specifically testing NFS integration in the Foundation Module. |
network_tags | ["nfsserver"] (default; required for NFS firewall rule if NFS is enabled) | High | Removing "nfsserver" and enabling NFS: the GKE node loses the tag matching the NFS firewall rule. NFS mount fails, pod never starts. Only relevant when enable_nfs = true. |
enable_pod_disruption_budget | false (default; not meaningful at replica count 1) | High | true with max_instance_count = 1 and pdb_min_available = "1": GKE node drains are permanently blocked. Autopilot maintenance cannot complete. Enable only when min_instance_count ≥ 2. |
binauthz_evaluation_mode | "ALWAYS_ALLOW" (appropriate for a reference/test module) | Critical | "REQUIRE_ATTESTATION" without a CI attestation pipeline: no image can be deployed, including locally built test images. Keep "ALWAYS_ALLOW" unless specifically testing Binary Authorization. |
enable_vpc_sc | false (default); use vpc_sc_dry_run = true if testing VPC-SC integration | Critical | enable_vpc_sc = true with vpc_sc_dry_run = false: if any SA or IP is absent from the access level, all GKE workload API calls fail simultaneously. Always test in dry-run mode first. |
explicit_secret_values | {} (default; secrets are auto-generated by Sample Common) | High | Providing an explicit FLASK_SECRET_KEY value via explicit_secret_values that is later removed: the auto-generated value from Sample Common replaces it on the next apply. All existing Flask sessions are invalidated. Use consistent explicit values or always rely on the auto-generated value. |
Validating a Sample GKE Deployment
Because Sample_GKE delegates all infrastructure to App_GKE, validation follows the same procedures described in the App_GKE Configuration Guide. The additional resources managed by Sample_Common can be validated as follows:
Flask SECRET_KEY secret:
# Confirm the Flask SECRET_KEY secret exists
gcloud secrets list --project=PROJECT_ID \
--filter="name:secret-key" \
--format="table(name,createTime)"
# View the secret's replication and rotation config
gcloud secrets describe SECRET_NAME \
--project=PROJECT_ID \
--format="yaml(replication,rotation)"
DB-init Kubernetes Job:
# List all Kubernetes Jobs in the application namespace
kubectl get jobs -n NAMESPACE -o wide
# View the status of the db-init job
kubectl describe job db-init -n NAMESPACE
# View db-init job logs
kubectl logs -l job-name=db-init -n NAMESPACE
Redis additional service (when enable_redis = true):
# List all Deployments in the namespace (redis should appear alongside the app)
kubectl get deployments -n NAMESPACE -o wide
# Confirm the Redis Service exists and has a cluster IP
kubectl get service -n NAMESPACE -l app=APPLICATION_NAME-redis
# Confirm REDIS_HOST and REDIS_PORT are injected into the app container
kubectl exec -n NAMESPACE POD_NAME -- env | grep REDIS
