n8n on GKE Autopilot

n8n is a fair-code workflow automation platform that connects APIs, databases, and services with a visual node editor. This module deploys n8n on GKE Autopilot on top of the App_GKE foundation, which provisions and manages the shared Google Cloud and Kubernetes infrastructure.

This guide focuses on the cloud services n8n uses and how to explore and operate them from the Google Cloud Console and the command line. For the mechanics that are common to every GKE application — Workload Identity, ingress, autoscaling, CI/CD, Cloud Armor, IAP, Binary Authorization, VPC Service Controls, backups, and the deployment lifecycle — refer to the App_GKE foundation guide rather than repeating them here.

---

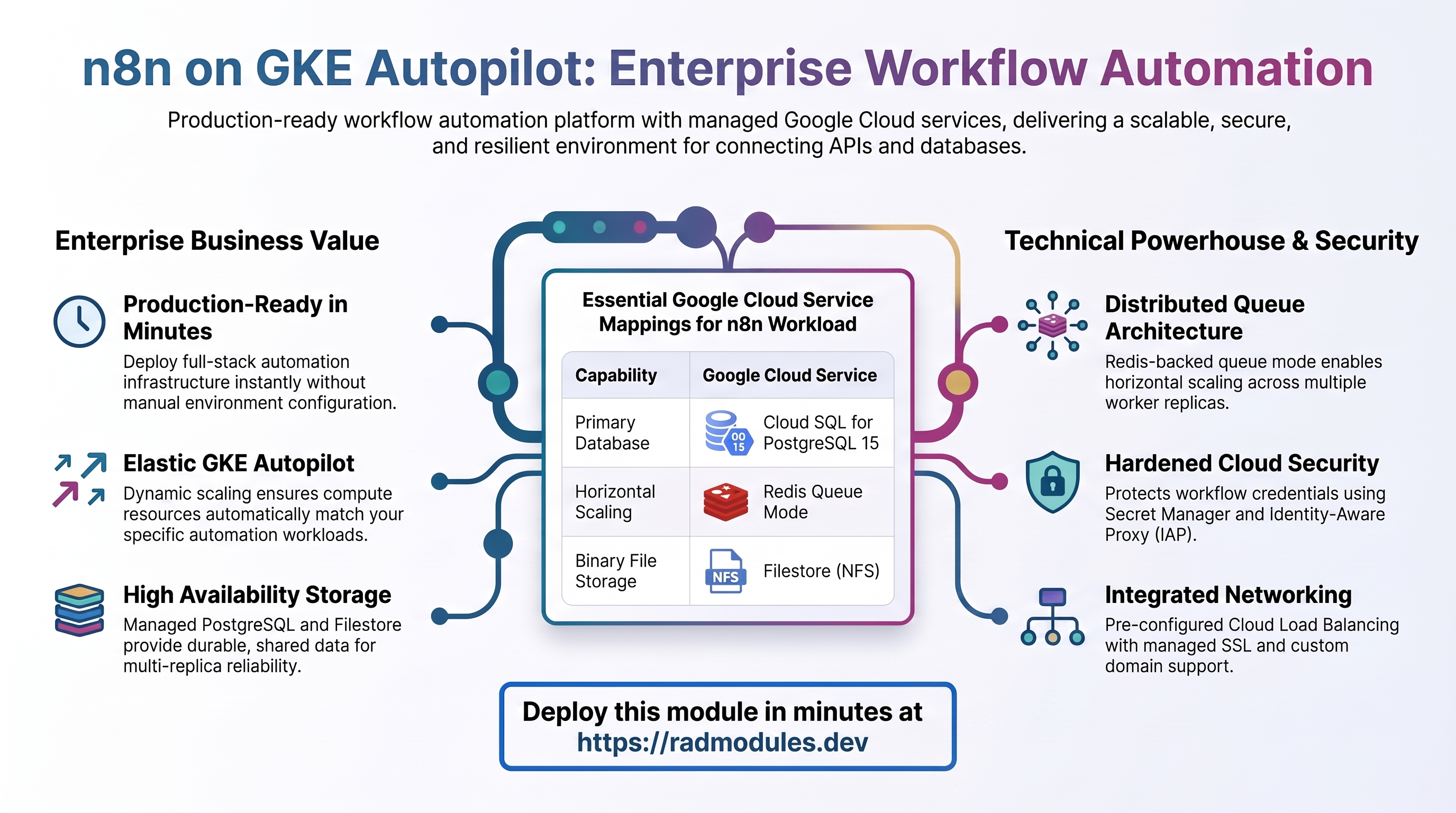

1. Overview

n8n runs as a Node.js workload. The deployment wires together a focused set of Google Cloud services:

Capability	Google Cloud service	Notes
Compute	GKE Autopilot	Node.js pods, 2 vCPU / 4 GiB by default, horizontally autoscaled
Database	Cloud SQL for PostgreSQL 15	Required — n8n uses PostgreSQL for all workflow and credential data
Shared files	Filestore (NFS)	Binary file data shared across all replicas; also serves as the default Redis endpoint
Object storage	Cloud Storage	A dedicated data bucket
Queue & coordination	Redis	Enabled by default; enables n8n queue mode for horizontal scaling
Secrets	Secret Manager	Auto-generated encryption key and SMTP password placeholder
Ingress	Cloud Load Balancing	External LoadBalancer, optional custom domain + managed certificate

Sensible defaults worth knowing up front:

• PostgreSQL 15 is mandatory. The database engine is fixed; selecting any other engine or NONE breaks startup.
• Redis is enabled by default. Queue mode allows multiple n8n replicas to distribute workflow execution. Without Redis, only a single replica can process workflows reliably.
• The encryption key is irreplaceable. N8N_ENCRYPTION_KEY is generated once and stored in Secret Manager. All workflow credentials are encrypted with it. If the key is rotated or deleted, every saved credential becomes permanently unreadable.
• Session affinity is ClientIP. The editor uses WebSockets, so requests from a browser are pinned to one pod.
• WEBHOOK_URL and N8N_EDITOR_BASE_URL are pre-set to the expected service URL before deployment so webhooks resolve correctly from first start.
• The SMTP password secret is seeded with a dummy value; update it in Secret Manager before configuring email sending.

---

2. Google Cloud Services & How to Explore Them

All commands assume you have run gcloud container clusters get-credentials <cluster> --region <region> --project <project> and that PROJECT, REGION, and NAMESPACE are set. The namespace and other identifiers are reported in the deployment Outputs.

A. GKE Autopilot — the n8n workload

n8n pods are scheduled on Autopilot, which bills for the CPU/memory the pods actually request. Horizontal Pod Autoscaling sizes the deployment between the minimum and maximum replica counts. Session affinity pins editor sessions to a single pod.

• Console: Kubernetes Engine → Workloads → select the n8n workload to see pods, revisions, and events. Kubernetes Engine → Services & Ingress shows the external IP.
• CLI:

  kubectl get pods,svc,hpa -n "$NAMESPACE"
  kubectl logs -n "$NAMESPACE" deploy/<service-name> --tail=100
  kubectl describe hpa -n "$NAMESPACE"          # current vs target utilisation

See App_GKE for how Autopilot, scaling, and the workload type (Deployment vs StatefulSet) are managed.

B. Cloud SQL for PostgreSQL 15

n8n stores all workflow definitions, execution history, and encrypted credentials in a managed Cloud SQL for PostgreSQL 15 instance. Pods reach it privately through the Cloud SQL Auth Proxy sidecar over a Unix socket, so no public IP is exposed. The entrypoint.sh script translates the platform-injected DB_* variables to n8n-native DB_POSTGRESDB_* variables at runtime. On first deploy an initialization Job creates the application database and user.

• Console: SQL → select the instance for connections, backups, flags, and metrics.
• CLI:

  gcloud sql instances list --project "$PROJECT"
  gcloud sql instances describe <instance-name> --project "$PROJECT"
  # Open an interactive shell to inspect schema/data:
  gcloud sql connect <instance-name> --user=<db-user> --project "$PROJECT"

The instance name, database name, user, and the Secret Manager secret holding the password are all surfaced in the Outputs. For the connection model, automated backups, and password rotation, see App_GKE.

C. Filestore (NFS) and Cloud Storage

Binary files uploaded to or produced by workflows are written to a Filestore (NFS) share mounted into every pod so all replicas see the same data (N8N_DEFAULT_BINARY_DATA_MODE=filesystem). The NFS host IP also serves as the default Redis endpoint when no explicit redis_host is configured. A dedicated Cloud Storage bucket is provisioned for broader data persistence.

• Console: Filestore → Instances for the NFS share; Cloud Storage → Buckets for the data bucket.
• CLI:

  gcloud filestore instances list --project "$PROJECT"
  gcloud storage buckets list --project "$PROJECT"
  gcloud storage ls gs://<data-bucket>/          # bucket name is in the Outputs
  # Confirm the share is mounted inside a pod:
  kubectl exec -n "$NAMESPACE" deploy/<service-name> -- df -h | grep -i nfs

See App_GKE for NFS provisioning, GCS Fuse, and CMEK options.

D. Redis queue

Redis enables n8n's queue mode, which distributes workflow executions across multiple replicas using Bull. In queue mode one or more "worker" instances pick up executions from the queue while the main instance handles the editor and webhook registration. When no external Redis host is configured and NFS is enabled, the NFS host IP is used as the Redis endpoint.

• Console: Memorystore → Redis (if using a managed instance).
• CLI:

  redis-cli -h <redis-host> ping        # from a host with network access
  redis-cli -h <redis-host> info keyspace

E. Secret Manager

The n8n encryption key and the SMTP password placeholder are stored as Secret Manager secrets and injected into pods at runtime; plaintext never appears in configuration. The database password is managed separately by the foundation.

• Console: Security → Secret Manager.
• CLI:

  gcloud secrets list --project "$PROJECT"
  gcloud secrets versions access latest --secret=<secret-name> --project "$PROJECT"
  # Update the SMTP password with the real credential:
  echo -n "my-real-smtp-password" | \
    gcloud secrets versions add <smtp-secret-name> --data-file=- --project "$PROJECT"

The database password secret name is in the Outputs. See App_GKE for the Secret Store CSI integration and rotation.

F. Networking & ingress

By default the workload is exposed through an external Cloud Load Balancing IP. A custom domain with a Google-managed certificate can be enabled, and a static IP can be reserved so the address survives redeploys.

• Console: Network services → Load balancing; VPC network → IP addresses.
• CLI:

  kubectl get ingress,svc -n "$NAMESPACE"
  gcloud compute addresses list --project "$PROJECT"

See App_GKE for custom domains, Cloud CDN, and static IP details.

G. Cloud Logging & Monitoring

Pod stdout/stderr flow to Cloud Logging; GKE and Cloud SQL metrics flow to Cloud Monitoring. Optional uptime checks and alert policies are available.

• Console: Logging → Logs Explorer; Monitoring → Dashboards / Alerting.
• CLI:

  gcloud logging read 'resource.type="k8s_container" AND resource.labels.namespace_name="'"$NAMESPACE"'"' \
    --project "$PROJECT" --limit 50

---

3. n8n Application Behaviour

• First-deploy database setup. An initialization Job (db-init) uses postgres:15-alpine to create the n8n database and user and grants privileges before the application starts. It is idempotent and safe to re-run.
• Environment variable translation. entrypoint.sh maps DB_HOST, DB_NAME, DB_USER, and DB_PASSWORD (injected by the platform) to the n8n-native DB_POSTGRESDB_* equivalents at container startup. The Cloud SQL Auth Proxy socket path is rewritten to a symlink that PostgreSQL drivers can locate.
• Queue mode operation. With enable_redis = true (the default), n8n starts in queue mode. The main pod handles webhook registration, the editor UI, and execution coordination; additional replicas act as workers picking jobs from the Bull queue.
• Webhook URL stability. WEBHOOK_URL and N8N_EDITOR_BASE_URL are set to the predicted service URL before deployment. If the external IP or custom domain changes, these values must be updated and the workload redeployed.
• Binary data storage. N8N_DEFAULT_BINARY_DATA_MODE=filesystem directs n8n to write binary files (attachments, downloads) to the NFS-mounted filesystem rather than the database, which is required for multi-replica deployments.
• Health path. Readiness/liveness probes target the n8n root (/), which returns HTTP 200 only once the application and database connection are fully initialised. The startup probe allows 120 seconds for first-boot setup.
• Encryption key criticality. N8N_ENCRYPTION_KEY encrypts all workflow credentials stored in the database. The key is generated once; if it changes, all saved credentials (API keys, passwords, tokens) become permanently unreadable.

---

4. Configuration Variables

Variables are grouped exactly as they appear on the deployment platform. Only settings specific to or notable for n8n are listed; every other input is inherited from App_GKE with its standard behaviour and defaults.

Group 1 — Project & Identity

Variable	Default	Description
project_id	(required)	Target Google Cloud project.
region	us-central1	Region for the workload and regional resources.

Group 2 — Deployment Environment

Variable	Default	Description
tenant_deployment_id	demo	Short suffix that makes resource names unique per environment.
support_users	[]	Emails granted project access and monitoring alerts.
resource_labels	{}	Labels applied to all resources for cost/ownership tracking.

Group 3 — Application Identity

Variable	Default	Description
application_name	n8n	Base name for resources. Do not change after first deploy.
display_name	N8N Workflow Automation	Friendly name shown in the Console.
description	(set)	Workload description annotation.
application_version	2.4.7	n8n image version tag; increment to roll out a new version.
deploy_application	true	Set false to provision infrastructure only.

Group 4 — Runtime & Scaling

Variable	Default	Description
cpu_limit	2000m	CPU per pod; 2 vCPU recommended for n8n workflow execution.
memory_limit	4Gi	Memory per pod.
min_instance_count	1	Minimum replicas. Keep ≥ 1 so queued workflows always have a worker.
max_instance_count	3	Maximum replicas (autoscaler ceiling).
container_port	5678	n8n listens on port 5678.
enable_cloudsql_volume	true	Cloud SQL Auth Proxy sidecar for socket connections.
enable_image_mirroring	true	Mirror the n8n image into Artifact Registry before deploy.
timeout_seconds	300	Max request duration in seconds.

Group 5 — Environment Variables & Secrets

Variable	Default	Description
environment_variables	SMTP placeholder defaults	Extra non-secret settings. Core N8N_* and DB_TYPE values are set automatically. The default map includes SMTP_HOST, SMTP_PORT, SMTP_USER, SMTP_PASSWORD, SMTP_SSL, and EMAIL_FROM as empty/placeholder values ready to override with real credentials.
secret_environment_variables	{}	Map of env var → Secret Manager secret name.
secret_propagation_delay	30	Seconds to wait after secret creation before proceeding.
secret_rotation_period	2592000s	Secret Manager rotation notification frequency (~30 days).

Group 6 — GKE Backend & Cluster

Variable	Default	Description
service_type	LoadBalancer	How the Service is exposed.
session_affinity	ClientIP	Sticky routing required for n8n's WebSocket editor sessions.
workload_type	null	Auto-resolves to StatefulSet when per-pod storage is enabled.
network_tags	['nfsserver']	Node/pod tags; nfsserver is required for NFS connectivity.
gke_cluster_name	""	Leave empty for auto-discovery.
namespace_name	""	Leave empty to auto-generate.
configure_service_mesh	false	Enable Istio injection for the namespace.
termination_grace_period_seconds	30	Seconds to wait after SIGTERM before SIGKILL.

Group 7 — StatefulSet

Variable	Default	Description
stateful_pvc_enabled	null	Enable PVC templates in the StatefulSet. Setting true auto-selects StatefulSet workload type.
stateful_pvc_size	10Gi	Storage size per PVC.
stateful_pvc_mount_path	/data	Mount path inside the container.
stateful_pvc_storage_class	standard-rwo	Kubernetes StorageClass for PVCs.

Group 9 — Reliability Policies

Variable	Default	Description
enable_pod_disruption_budget	true	Protect availability during node upgrades.
pdb_min_available	1	Raise min_instance_count above 1 if you need eviction headroom.
enable_topology_spread	false	Spread pods across zones.

Group 10 — Observability & Health

Variable	Default	Description
startup_probe / liveness_probe	HTTP GET /	Probes target the n8n root. Startup probe allows 120s initial delay.
startup_probe_config / health_check_config	(set)	Structured probe objects forwarded to the foundation.
uptime_check_config	disabled	Optional Cloud Monitoring uptime check.
alert_policies	[]	Optional metric alert policies.

Group 11 — Jobs & Scheduled Tasks

Variable	Default	Description
initialization_jobs	[]	Leave empty to use the built-in db-init database setup job.
cron_jobs	[]	Scheduled CronJobs. n8n's built-in scheduler handles workflow triggers; use these for external operations (maintenance scripts, custom data jobs).
additional_services	[]	Sidecar or helper GKE services deployed alongside n8n.

Group 12 — CI/CD & GitHub Integration

Standard App_GKE Cloud Build / Cloud Deploy integration — see App_GKE. Key inputs: enable_cicd_trigger, github_repository_url, github_token, enable_cloud_deploy, enable_binary_authorization.

Group 13 — Filesystem (NFS)

Variable	Default	Description
enable_nfs	true	Shared Filestore volume for binary file data (keep enabled for multi-replica).
nfs_mount_path	/mnt/nfs	Mount path inside the container.
nfs_volume_name	nfs-data-volume	Kubernetes volume name for the NFS mount.
nfs_instance_name	""	Name of an existing NFS GCE VM. Leave empty for auto-discovery.
nfs_instance_base_name	app-nfs	Base name for an inline NFS GCE VM when none exists.

Group 14 — Cloud Storage & Artifact Registry

Variable	Default	Description
create_cloud_storage	true	Provision the data bucket.
storage_buckets / gcs_volumes	(set)	Additional buckets / GCS Fuse mounts.
manage_storage_kms_iam / enable_artifact_registry_cmek	false	CMEK options.
max_images_to_retain / delete_untagged_images / image_retention_days	(set)	Artifact Registry cleanup policy.

Group 15 — Redis Queue

Variable	Default	Description
enable_redis	true	Use Redis for queue-mode workflow execution.
redis_host	""	Leave empty to use the NFS host IP; set explicitly when NFS is disabled.
redis_port	6379	Redis port.
redis_auth	""	Optional Redis auth password (sensitive).

Group 16 — Database Backend

Variable	Default	Description
db_name	n8n_db	PostgreSQL database name. Immutable after first deploy.
db_user	n8n_user	Application user. Immutable after first deploy.
database_password_length	32	Generated password length (16–64).
enable_auto_password_rotation	false	Zero-downtime DB password rotation.

Group 17 — Backup & Maintenance

Variable	Default	Description
backup_schedule	0 2 * * *	Automated backup cron (UTC).
backup_retention_days	7	Retention; raise to 30–90 for production/compliance.
enable_backup_import / backup_source / backup_uri	restore options	Restore from a backup on deploy.

Group 18 — Custom SQL Scripts

enable_custom_sql_scripts, custom_sql_scripts_bucket, custom_sql_scripts_path, custom_sql_scripts_use_root — run SQL from a GCS bucket after provisioning. See App_GKE.

Group 19 — Custom Domain, Static IP & Networking

Variable	Default	Description
enable_custom_domain	true	Provision a Gateway for custom hostnames + managed certificate.
application_domains	[]	Hostnames to serve.
reserve_static_ip	true	Stable external IP across redeploys.

Group 20 — Identity-Aware Proxy (IAP)

Variable	Default	Description
enable_iap	false	Require Google sign-in in front of n8n.
iap_authorized_users / iap_authorized_groups	[]	Who may access.
iap_oauth_client_id / iap_oauth_client_secret	""	Required when IAP is enabled (sensitive).
iap_support_email	""	Shown on the OAuth consent screen.

Group 21 — Cloud Armor

Variable	Default	Description
enable_cloud_armor	false	Attach a Cloud Armor (WAF) policy to the Ingress backend.
admin_ip_ranges	[]	CIDRs allowed privileged access.
cloud_armor_policy_name	default-waf-policy	Policy name.

Group 22 — VPC Service Controls & Audit Logging

Variable	Default	Description
enable_vpc_sc	false	Enforce a VPC-SC perimeter (requires organization_id).
vpc_cidr_ranges / vpc_sc_dry_run	(set)	Access level CIDRs / dry-run mode.
enable_audit_logging	false	Detailed Cloud Audit Logs.

---

5. Outputs

These values are returned on a successful deployment and are the quickest way to locate and explore the running resources.

Output	Description
service_name	Kubernetes Service name.
namespace	Namespace the workload runs in.
service_cluster_ip	In-cluster ClusterIP.
stage_service_cluster_ips	Map of ClusterIPs for stage-specific services.
service_external_ip	External LoadBalancer IP (when a static IP is reserved).
service_url	URL to reach n8n.
database_instance_name	Cloud SQL instance name.
database_name	Application database name.
database_user	Application database user.
database_password_secret	Secret Manager secret holding the DB password.
database_host / database_port	DB endpoint (via the Auth Proxy) / port.
storage_buckets	Created Cloud Storage buckets.
network_name / network_exists / regions	VPC network, presence, available regions.
container_image / container_registry	Deployed image and Artifact Registry repo.
monitoring_enabled / monitoring_notification_channels	Monitoring status and channels.
initialization_jobs / db_import_job	Names of the setup and (optional) import jobs.
deployment_id / tenant_id / resource_prefix	Naming identifiers.
project_id / project_number	Project identifiers.
cicd_enabled / cicd_configuration	CI/CD status and details (repo, trigger, registry).
kubernetes_ready	Whether the cluster/workload is ready.
vpc_sc_enabled / vpc_sc_perimeter_name / vpc_sc_dry_run_mode	VPC-SC status.
audit_logging_enabled / artifact_registry_cmek_enabled	Audit logging and CMEK status.

---

6. Configuration Pitfalls & Sensible Defaults

Risk: Critical (data loss / outage / security) — High (service degraded) — Medium (cost or partial degradation) — Low (minor).

Setting	Sensible value	Risk	Consequence if wrong
N8N_ENCRYPTION_KEY	(auto-generated, never rotate)	Critical	Rotating or deleting this key destroys all saved workflow credentials permanently.
db_name / db_user	set once	Critical	Immutable after first deploy; renaming recreates the DB/user and destroys all workflow data.
enable_nfs	true	Critical	Without shared storage, binary files are not shared across replicas and filesystem binary mode fails.
enable_backup_import	false unless restoring	Critical	Enabling without a valid backup_uri fails the import job.
quota_memory_requests / _limits	binary units	Critical	Bare integers are bytes and block all pod scheduling.
enable_redis	true	High	Without Redis queue mode, running more than one replica causes workflow execution conflicts.
redis_host	"" (NFS) or explicit	High	No valid endpoint if Redis is on but NFS is off and no host is set.
session_affinity	ClientIP	High	Without stickiness, WebSocket editor sessions drop when routed to a different pod.
min_instance_count	1	High	0 leaves queued workflows with no worker to pick them up.
memory_limit	4Gi	High	Too little memory causes OOM during large workflow execution batches.
enable_iap / enable_cloud_armor	enable for production	Medium	The n8n editor is otherwise publicly reachable and exposes all saved credentials.
backup_retention_days	7 (raise for prod)	Medium	Too short for compliance retention.
pdb_min_available vs min_instance_count	leave headroom	Medium	1/1 can stall node upgrades (single pod cannot be evicted).

---

For the foundation behaviour referenced throughout — IAM and Workload Identity, autoscaling, ingress and certificates, CI/CD, Cloud Armor, IAP, Binary Authorization, VPC-SC, backups, and image mirroring — see App_GKE. n8n-specific application configuration shared with the Cloud Run variant is described in N8N_Common.
